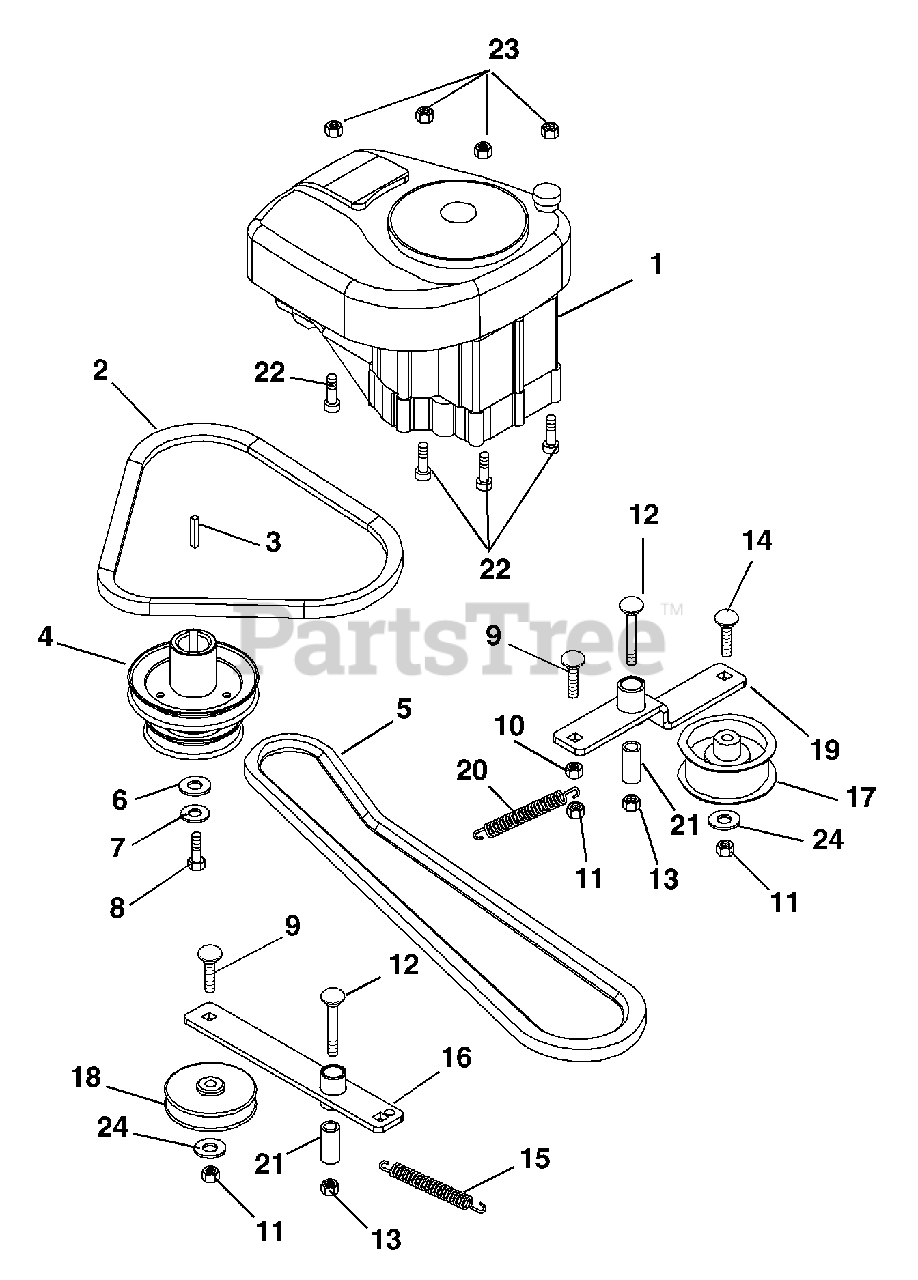

927063 (1232 RER) - Ariens 32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro (SN: 000101 - 000399) Engine Parts Diagram

32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro

Engine Parts Diagram

  • Title

1

Ariens 52710400

GROUP-ENG 12HP INTEK AVS

Note: (063)

$

$

Not available

1

Ariens 52710300

ENG GROUP 10HP INTEK AVS

Note: (061)

$

$

Not available

1

Ariens 52710500

GROUP-ENG 14HP INTEK AVS

Note: (065)

$

$

Not available

2

Ariens 07211700

V-BELT, 4L-RAW EDGE

$31.99

$

In Stock, only 2 left!

0

3

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 1 left!

0

4

Ariens 02775700

STACK, RER ENGINE SHEAVE

Note: (061, 063)

$149.99

$

Usually ships in 4-12 days

0

4

Ariens 02778900

STACK, RER 40" DECK SHEAVE

Note: (065)

$

$

Not available

5

Ariens 07242400

V-BELT, HA-WRAPPED
(Superseded to 51512100)

Note: (063)

$149.99

$

In Stock, only 1 left!

0

5

Ariens 51512000

KIT, 28" CUTTING IMPROVEMENT

Note: 51512000 includes belt p/n 07243300 and pulley p/n 01610400.

$137.99

$

Usually ships in 4-12 days

0

5

Ariens 07242600

V-BELT, HA-WRAPPED

Note: (065)

$46.99

$

In Stock, only 2 left!

0

6

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$7.49

$

Usually ships in 4-12 days

0

7

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, only 3 left!

0

8

Ariens 05967500

BLT-HEX .44-20X1.75 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

10

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06227400

BLT-RDHDSQSHNK .50-13X2.75 BZC

$

$

Not available

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

14

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, Qty 9

0

15

Ariens 08353300

SG-TENS .095X.500X5.5 WLD60 YZ

$15.99

$

In Stock, only 2 left!

0

16

Ariens 02775400

IDLER, DRIVE (WLDMNT)

$

$

Not available

17

Ariens 07318400

IDLER 2.75X1.25

$23.99

$

In Stock, Qty 12

0

18

Ariens 07309200

IDLER-V 3X.38

$38.99

$

In Stock, only 4 left!

0

19

Ariens 02776400

IDLER, RER PTO (WLDMNT)

Note: (061, 063)

$63.99

$

Usually ships in 4-12 days

0

19

Ariens 02779100

IDLER, 40" DECK PTO

Note: (065)

$

$

Not available

20

Ariens 08343000

SG-TENS .093X.75X4.0 WLD40

$15.99

$

In Stock, only 1 left!

0

21

Ariens 05516400

BSHG-SLV .500X.750X1.560

$6.49

$

In Stock, Qty 11

0

22

Ariens 05972700

SCR-SKH BTHD .31-18 X 1.50 GR8

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
