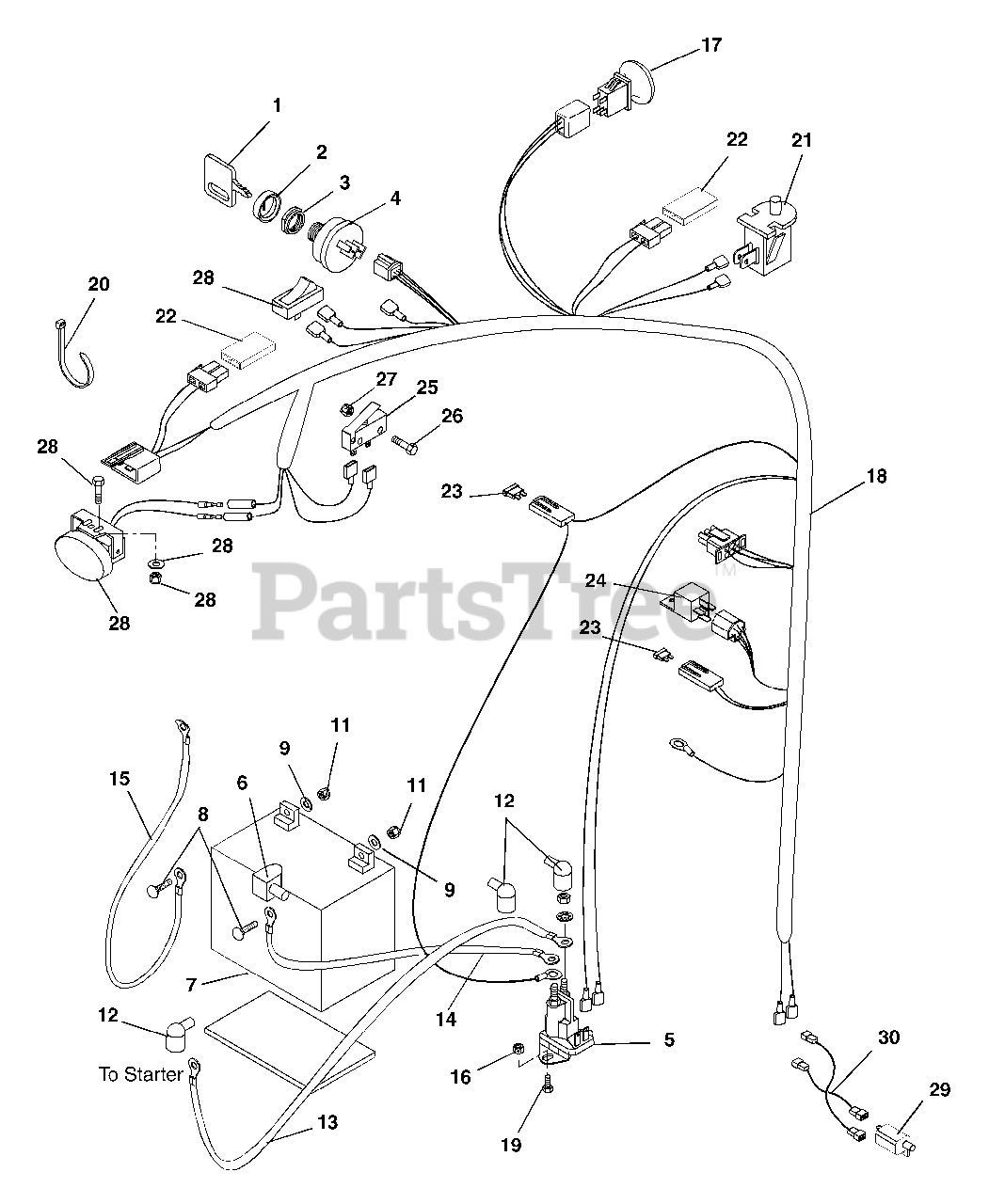

927063 (1232 RER) - Ariens 32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro (SN: 010000 - 019999) Electrical System Parts Diagram

32" Rear-Engine Rider, 12hp Briggs & Stratton, Hydro

Electrical System Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 19

0

3

Ariens 06517400

NUT- PANEL .562-24 GRECO

$21.99

$

In Stock, Qty 7

0

4

Ariens 01563700

SWITCH KEY 5Y463A ALT GRDNG

$35.99

$

In Stock, only 2 left!

0

5

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Ariens 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

7

Battery, Sealed Maintenace Free U1-330

Note: (See Local Battery Supplier)

$

$

Not available

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

10

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

11

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

12

Ariens 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 9

0

13

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$23.99

$

In Stock, Qty 9

0

14

Ariens 02727900

STARTER CABLE 16"

$41.99

$

In Stock, only 1 left!

0

15

Ariens 08840400

CBL,NEGATIVE BATTERY 20.00

$18.99

$

Usually ships in 4-12 days

0

16

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

18

Ariens 02776200

WIRE HARNESS - RER
(Superseded to 02776201)

$219.99

$

Usually ships in 4-12 days

0

19

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

21

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

22

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

23

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 14

0

24

Ariens 03042800

RELAY
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

25

Ariens 02777200

SWITCH, RER PARK BRAKE

$

$

Not available

26

Ariens 05980000

SCREW, MACHINE 2-56 X 3/4
(Superseded to 05980500)

$

$

Not available

27

Ariens 06545000

NUT, NYLK 2-56 PL

$

$

Not available

28

Ariens 72702700

KIT-LIGHT RER/SPORT

Note: (Optional)

$

$

Not available

29

Ariens 03657100

SWITCH- SINGLE POLE N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 15

0

30

Ariens 02781100

JUMPER, HARNESS

$

$

Not available
