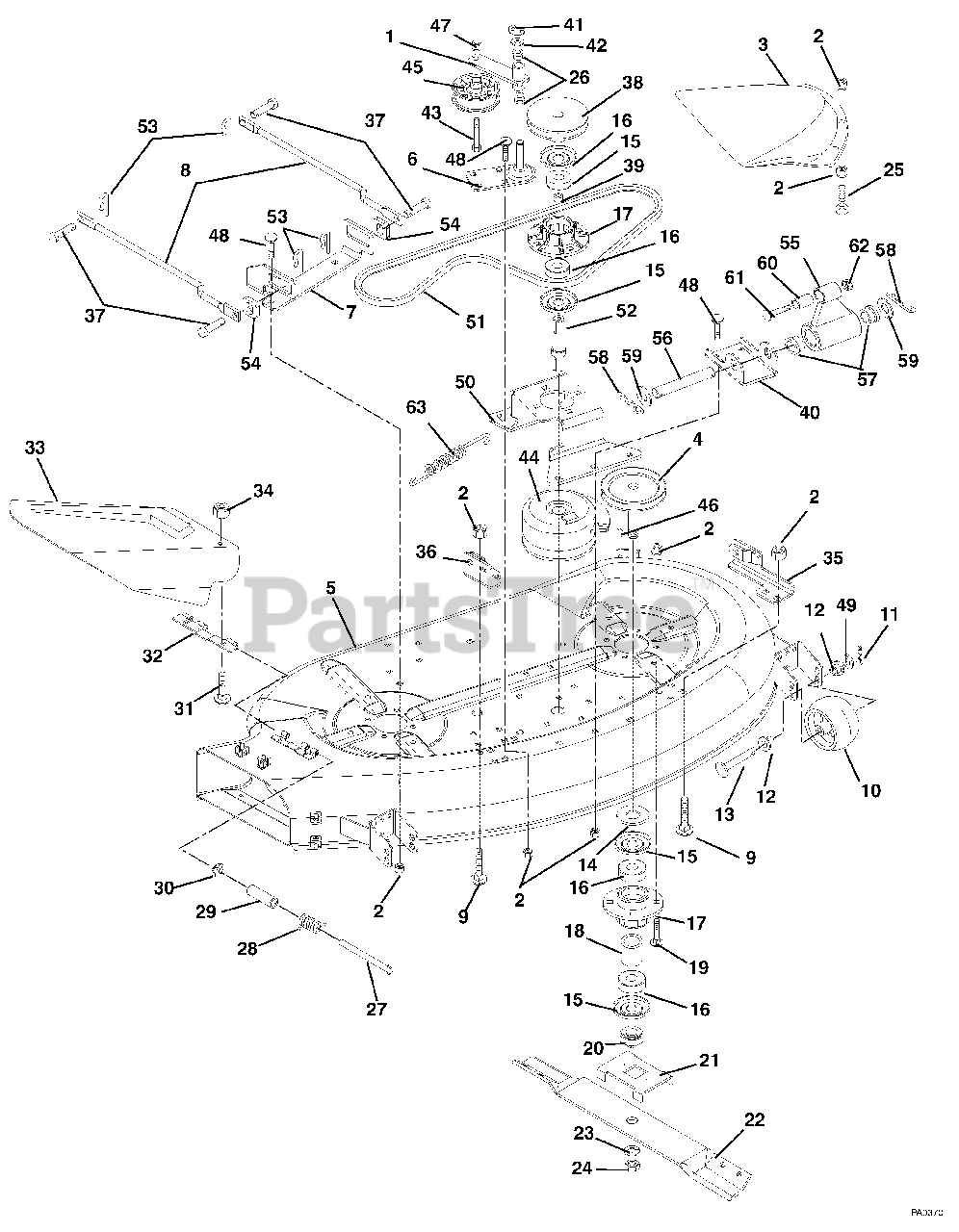

927064 (1440) - Gravely 40" Rear-Engine Riding Mower, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000399) > Parts Diagrams (12) > 40" Deck, Belts, Blades And Idlers

  • Title
02769200

1

Weldment, Idler

Part# 02769200

OEM Warranty Repair Part for Gravely

Not available

06544500

2

Nut, Locking Top Flange .38-16

Part# 06544500 (Superseded to 06500726)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01520100

3

Cover

Part# 01520100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $55.84

03615400

4

Sheave, Left Spindle

Part# 03615400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

03615300

4

Sheave, Right Spindle

Part# 03615300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

02769600

5

Deck, 40"

Part# 02769600

OEM Warranty Repair Part for Gravely

Not available

02769300

6

Bracket, Idler Mount

Part# 02769300

OEM Warranty Repair Part for Gravely

Not available

02778500

7

Bracket, Rear Hanger

Part# 02778500

OEM Warranty Repair Part for Gravely

Not available

02769700

8

Link, Stabilizer 40" Deck

Part# 02769700

OEM Warranty Repair Part for Gravely

Not available

06227000

9

Bolt, Round Head Square Neck .38-16 x .75 Grade 5

Part# 06227000 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

050825

10

Roller

Part# 050825 (Superseded to 02745400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71

06713500

11

Pin, Hair Internal .08 x .18 x 1.18

Part# 06713500

OEM Warranty Repair Part for Gravely

Not available

036241

12

Bushing, Flange .372 x .500 x .312 x .625

Part# 036241 (Superseded to 05503600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02747500

13

Clevis Pin .368/.373 x 3.25

Part# 02747500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06444200

14

Washer, Flat Steel .755 x 1.25 x .125

Part# 06444200 (Superseded to 06441500)

OEM Warranty Repair Part for Gravely

Not available

00341900

15

Bearing Slinger

Part# 00341900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.70

035925

16

Bearing, Ball .750 x 1.781 x .61

Part# 035925 (Superseded to 05412000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

03625000

17

Spindle Housing

Part# 03625000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $145.28

035971

18

Spacer .751 x 1.00 x 1.14

Part# 035971 (Superseded to 02526400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

06223600

19

Bolt, Round Head Square Neck .38-16 x 1.0 Grade 5

Part# 06223600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

039559

20

Retainer Hub

Part# 039559 (Superseded to 03037500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $42.43

03485500

21

Blade Tray 48

Part# 03485500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $18.39

03624700

22

Blade

Part# 03624700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

06310300

23

Washer, Lock .75 x .188

Part# 06310300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06537700

24

Nut, Jam .75-10

Part# 06537700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05948700

25

Bolt, Hex .38-16 x 1.00 Grade 5

Part# 05948700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

036057

26

Bushing, Flange .500 x .625 x .312 x .75

Part# 036057 (Superseded to 05503700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03624200

27

Pin

Part# 03624200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.48

08314500

28

Spring-Torsion .090 x .37 x .63

Part# 08314500

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

035997

29

Bushing

Part# 035997 (Superseded to 02202900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05706300

30

Ring, Retaining External .313 x .025

Part# 05706300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06214300

31

Bolt, Round Head Square Neck .25-20 x .50

Part# 06214300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

02709551

32

Hinge Plate

Part# 02709551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

03609800

33

40 In Deflector

Part# 03609800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $83.57

06530100

34

Nut, Locking Flange .25-20

Part# 06530100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

02769800

35

Bracket, Deck Link Left Hand

Part# 02769800

OEM Warranty Repair Part for Gravely

Not available

02763700

36

Bracket, Deck Link Right Hand

Part# 02763700

OEM Warranty Repair Part for Gravely

Not available

06817400

37

Pin, Clevis .494 x 1.00

Part# 06817400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02779000

38

Pulley, 40" Deck Input

Part# 02779000

OEM Warranty Repair Part for Gravely

Not available

035971

39

Spacer .75 x 1.00 x 1.14

Part# 035971 (Superseded to 02526400)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.48

02778300

40

Bracket, Front Hanger

Part# 02778300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

05710200

41

Ring, Retaining External .50 x .042

Part# 05710200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06436600

42

Washer, Flat Steel .505 x .880 x .072

Part# 06436600

OEM Warranty Repair Part for Gravely

Not available

05957900

43

Bolt, Hex .38-16 x 1.50 Grade 5

Part# 05957900

OEM Warranty Repair Part for Gravely

Not available

03643100

44

Electric Clutch/Brake

Part# 03643100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $277.50

07309300

45

Idler, Flat 3.00 x .38

Part# 07309300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $36.84

06604200

46

Key, Woodruff .188 x .625 x .31

Part# 06604200 (Superseded to 06608700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

06534900

47

Nut, Locking Center .375-16

Part# 06534900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06215700

48

Bolt, Round Head Square Neck .31-18 x .75 Grade 5

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06221800

49

Bolt, Round Head Square Neck .31-18 x 1.00

Part# 06221800 (Superseded to 06200007)

OEM Warranty Repair Part for Gravely

Not available

02768600

50

Bracket, Spindle Housing Mount

Part# 02768600

OEM Warranty Repair Part for Gravely

Not available

041200

51

V-Belt (38.37)

Part# 041200 (Superseded to 07220500)

Note: (38.37)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

02778600

52

Input Shaft 40" Deck

Part# 02778600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $97.10

06944800

53

Clip, Spring

Part# 06944800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

02778400

54

Slider, Hanger Bracket

Part# 02778400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

02779700

55

Link, Front Lift

Part# 02779700

OEM Warranty Repair Part for Gravely

Not available

02780000

56

Pivot, Front Lift Lower

Part# 02780000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01591100

57

Bushing, 1.00 x .75 x 1.00

Part# 01591100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

06712200

58

Pin, Hair

Part# 06712200

OEM Warranty Repair Part for Gravely

Not available

035640

59

Washer, Flat Steel .75 x 1.47 x .134

Part# 035640 (Superseded to 06427600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05516400

60

Bushing, Sleeve .50 x .75 x 1.56

Part# 05516400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

06223700

61

Bolt, Round Head Square Neck .50-13 x 2.75

Part# 06223700

OEM Warranty Repair Part for Gravely

Not available

06519700

62

Nut, Locking Center Jam .50-13

Part# 06519700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

08353300

63

Spring-Tension .095 x .50 x 5.5

Part# 08353300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days
