927066 (10528) - Gravely 28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) 28" And 32" Deck, Idlers And Blades Parts Diagram

28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro

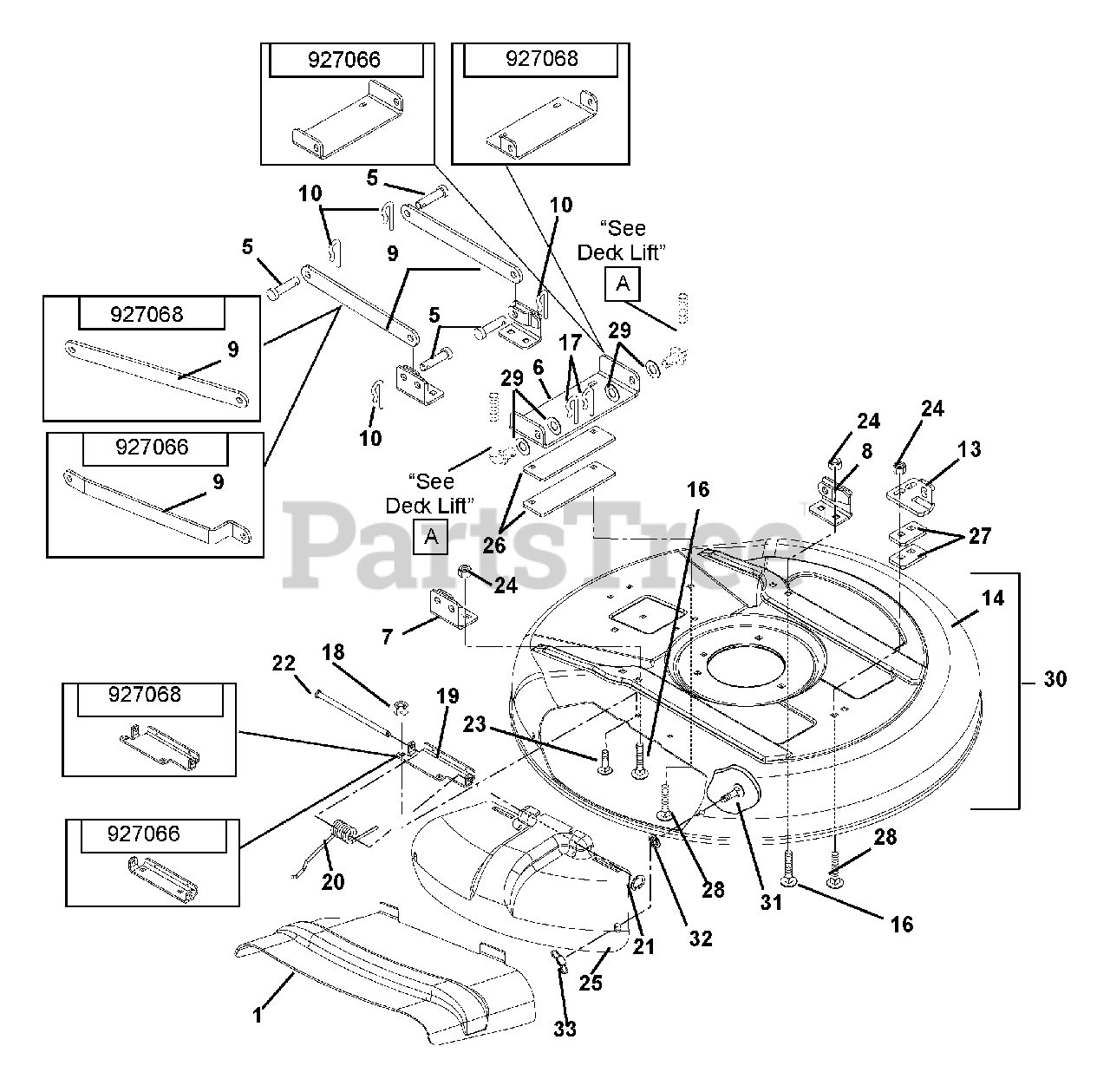

28" And 32" Deck, Idlers And Blades Parts Diagram

  • Title

1

Gravely 01608500

DISCHARGE CHUTE

$

$

Not available

2

Gravely 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01572700

BEARING SLINGER

$

$

Not available

4

Gravely 032050

BRG-BALL 1.0X2.0X.56 (1641)
(Superseded to 05400722)

$19.99

$

In Stock, Qty 20+

0

5

Gravely 06817400

PIN-CLEV .494X1.00 BLKZC

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 02780651

BRKT, REAR HANGER (28" DECK)

Note: (066)

$

$

Not available

Gravely 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (068)

$

$

Not available

7

Gravely 02770351

BRKT, 28" DECK STABILIZER

Note: (066)

$

$

Not available

Gravely 02763751

WLDMT-DECK LINK (RH)

Note: (068)

$

$

Not available

8

Gravely 02763751

WLDMT-DECK LINK (RH)

Note: (066)

$

$

Not available

Gravely 02763851

WLDMT-DECK LINK (LH)

Note: (068)

$

$

Not available

9

Gravely 02770451

STABILIZER, 28" DECK (RH)

Note: (Right Hand Only)(066)

$

$

Not available

Gravely 02764351

LINK STABILIZER 32"

Note: (066)

$

$

Not available

Gravely 02764351

LINK STABILIZER 32"

$

$

Not available

10

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 5

0

11

Gravely 62727400

ASSY-SPINDLE HSG

$186.99

$

Usually ships in 4-12 days

0

12

Gravely 01590500

SPACER, 1.001 X 1.25 X 1.76

$7.49

$

Usually ships in 4-12 days

0

13

Gravely 02780751

BRKT, FRONT HANGER (28" DECK)

Note: (066)

$

$

Not available

Gravely 02780351

BRKT, FRONT LIFT (32" DECK)

Note: (068)

$

$

Not available

14

Gravely 02770651

DECK, 28" RER

Note: (066)

$

$

Not available

Gravely 02770551

DECK, RER/SZ 32"

Note: (068)

$

$

Not available

15

Gravely 02774300

SHAFT, 28" AND 32" INPUT

$158.99

$

Usually ships in 4-12 days

0

16

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

17

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06527600

NUT-LK-FLG .250-20 PL BLK

$1.49

$

In Stock, Qty 5

0

19

Gravely 01612000

BRKT, 28" MULCH COVER HINGE
(Superseded to 01612051)

$

$

Not available

Gravely 01608200

BKT, HINGE

$

$

Not available

20

Gravely 08310001

SPRING, TORSION

$

$

Not available

Gravely 08310002

SPRING, TORSION

$

$

Not available

21

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

22

Gravely 01608300

PIN, HINGE

$

$

Not available

23

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 01611900

COVER, 28" DECK MULCH

$

$

Not available

Gravely 01608400

MULCH COVER, 32" DECK

$

$

Not available

26

Gravely 02780851

PLATE, 32" REAR HANGER SPACER

$

$

Not available

27

Gravely 02780951

PLATE, 32" FRONT HANGER SPCR

$

$

Not available

28

Gravely 06227700

BLT-RDHDSQNK .38-16X1.25 BKZC
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 06441800

WSHR-FL-STL .518X2.0X.105 YWZC
(Superseded to 06401127)

$3.99

$

In Stock, only 1 left!

0

30

Gravely 52711600

KIT, 28" DECK SERVICE ASSY

Note: (066)

$

$

Not available

Gravely 52711500

KIT, 32" DECK SERVICE ASSY

Note: (068)

$

$

Not available

31

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

32

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

33

Gravely 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0
