927066 (10528) - Gravely 28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Brake System Parts Diagram

28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro

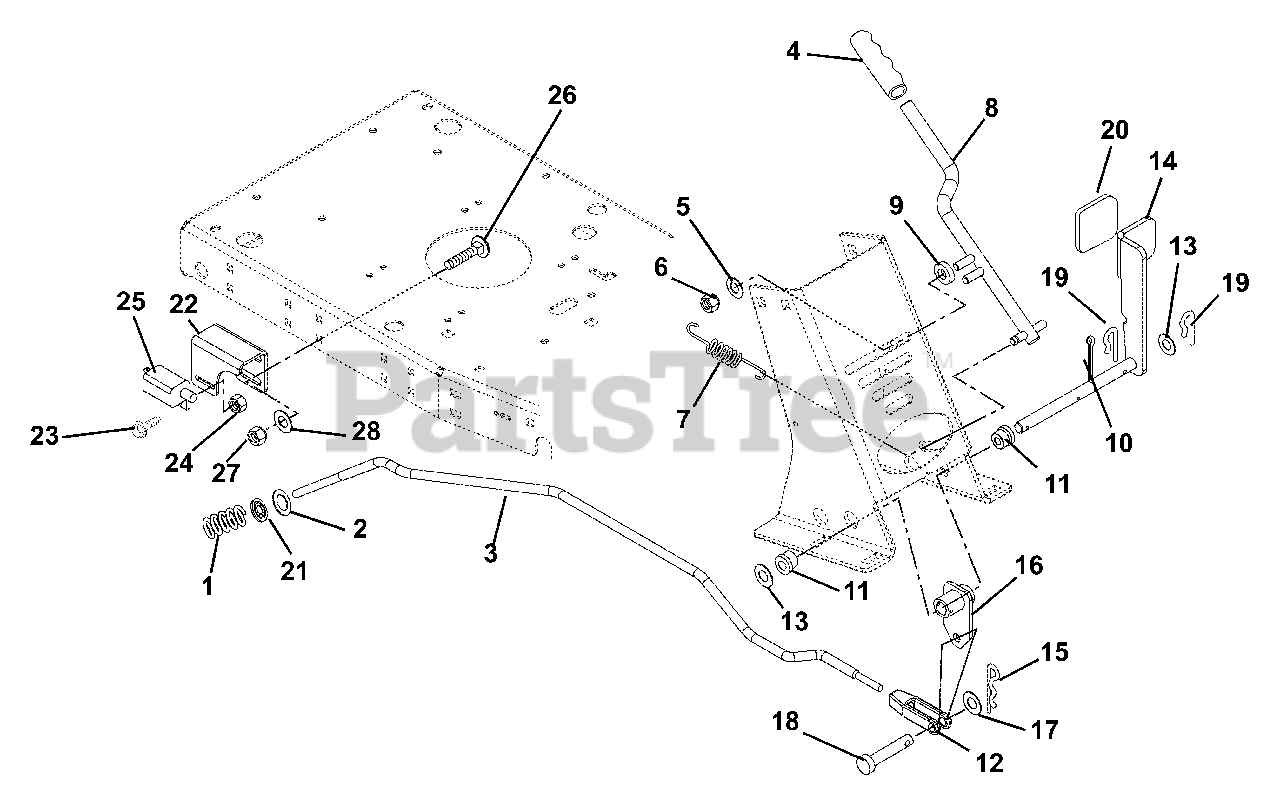

Brake System Parts Diagram

  • Title

1

Gravely 08327100

SG-COMP .080X.52X2.90

$

$

Not available

2

Gravely 06447800

WASHER, FLAT .33/2.125/.098

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 02776500

ROD, RER BRAKE

$

$

Not available

4

Gravely 07527500

GRIP

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 08330300

SG-TENS .048X.44X2.25 WLD 9

$

$

Not available

8

Gravely 02777300

HANDLE, PARK BRAKE (WLDMNT)

$

$

Not available

9

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 15

0

10

Gravely 06707000

PIN-CTR .09X1.00 EXTPRSQCT YZ
(Superseded to 121224)

$0.99

$

In Stock, Qty 11

0

11

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 034633

YOKE, .312-24 X 2.25
(Superseded to 07014700)

$15.99

$

Usually ships in 4-12 days

0

13

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 02761800

WLDMT-BRAKE PEDAL

$

$

Not available

15

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

16

Gravely 02762100

BRAKE ROD ARM & HUB

$

$

Not available

17

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

18

Gravely 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$

$

Not available

19

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 5

0

20

Gravely 02773900

GRIP, PEDAL

$12.99

$

Usually ships in 4-12 days

0

21

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 9

0

22

Gravely 02781051

BRKT, SWITCH MOUNT

$

$

Not available

23

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

24

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 08828100

SWITCH,INTERLOCK

$21.99

$

In Stock, only 2 left!

0

26

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+
