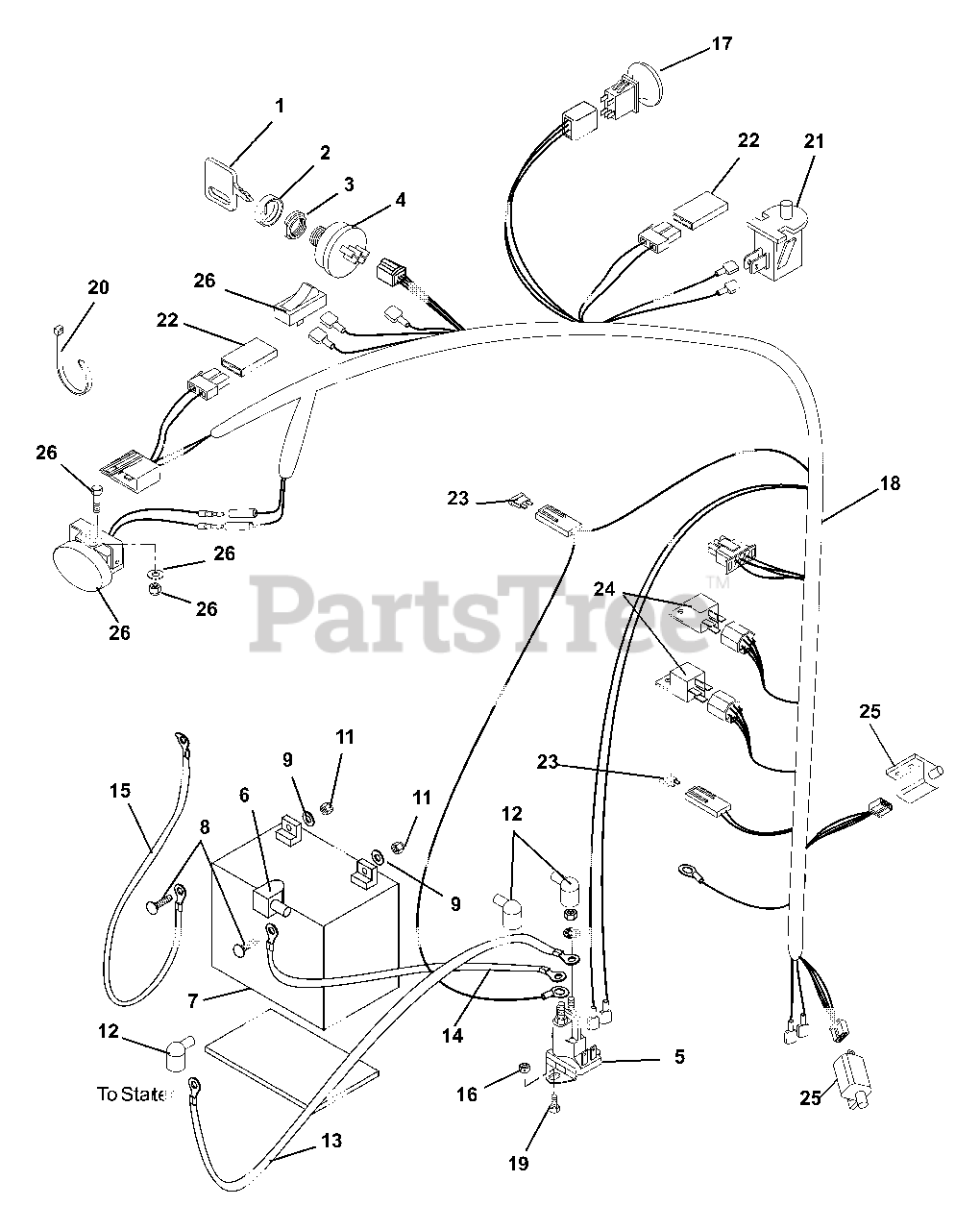

927066 (10528) - Gravely 28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Electrical System Parts Diagram

28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro

Electrical System Parts Diagram

  • Title

1

Gravely 02460700

KEY -W/CAP

$10.99

$

In Stock, Qty 20+

0

2

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

3

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

4

Gravely 01563700

SWITCH KEY 5Y463A ALT GRDNG

$35.99

$

In Stock, Qty 5

0

5

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

7

Battery, Sealed Maintenace Free U1-330

Note: (See Local Battery Supplier)

$

$

Not available

8

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

11

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

12

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

13

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$23.99

$

In Stock, only 3 left!

0

14

Gravely 02727900

STARTER CABLE 16"

$41.99

$

Usually ships in 4-12 days

0

15

Gravely 08840400

CBL,NEGATIVE BATTERY 20.00

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 04940800

SWITCH - PTO - NMIR

$

$

Not available

18

Gravely 02791700

HARNESS, RER NO MOW WIRE
(Superseded to 02791701)

$237.99

$

Usually ships in 4-12 days

0

19

Gravely 07412100

SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

20

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.99

$

In Stock, Qty 20+

0

22

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

23

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 12

0

24

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

25

Gravely 08828100

SWITCH,INTERLOCK

$21.99

$

In Stock, only 2 left!

0

26

Gravely 72702700

KIT-LIGHT RER/SPORT

Note: (Optional)

$

$

Not available
