927066 (10528) - Gravely 28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Steering And Front Wheels Parts Diagram

28" Rear-Engine Riding Mower, 10.5hp Briggs & Stratton, Hydro

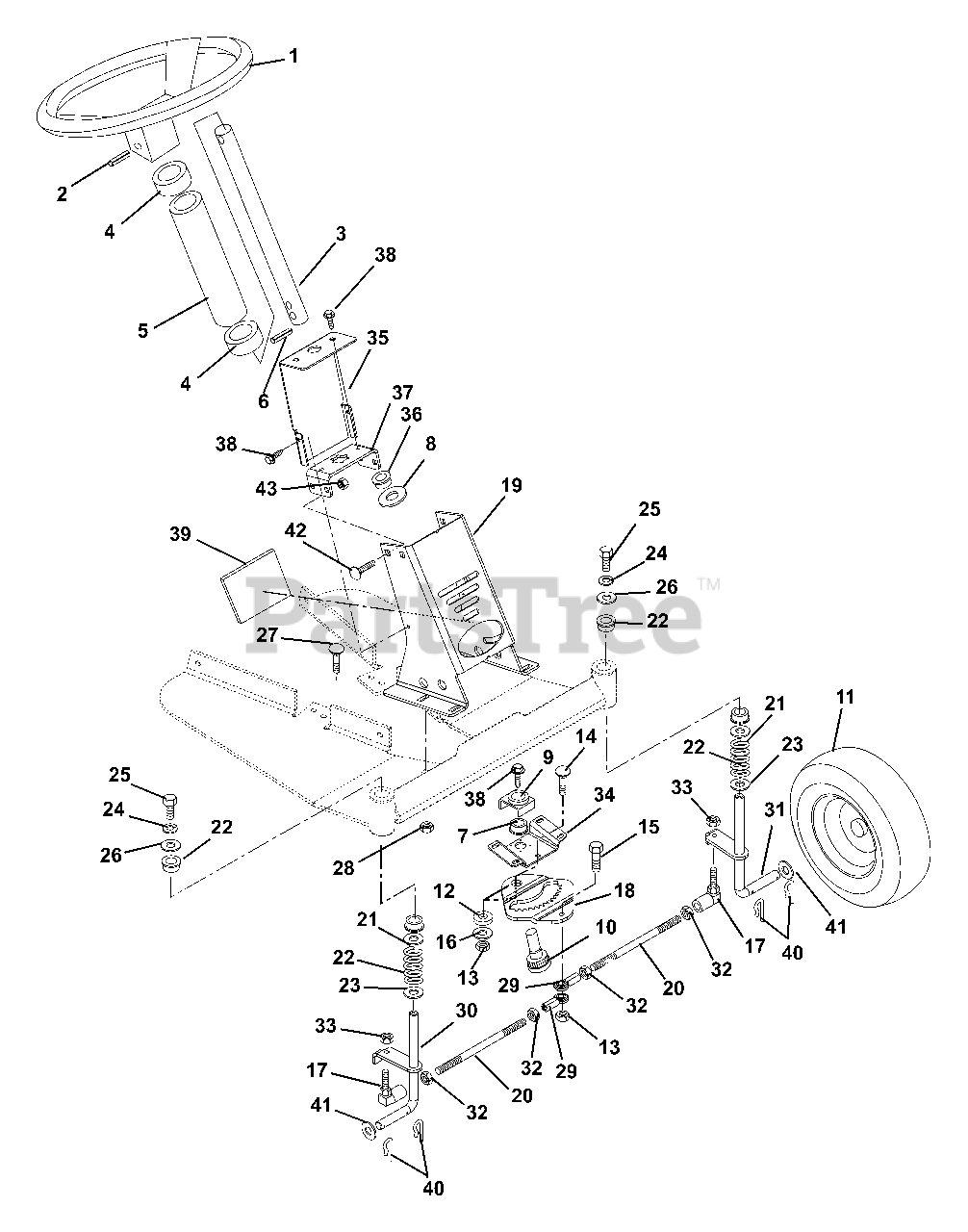

Steering And Front Wheels Parts Diagram

  • Title

1

Gravely 02753700

STEERING WHEEL 13"

$

$

Not available

2

Gravely 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 7

0

3

Gravely 02749100

STEERING SHAFT

$

$

Not available

4

Gravely 07503700

PLUG

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 02753800

TUBE 1.865 X 2.00 X 11.33

$

$

Not available

6

Gravely 05804600

PIN-ROLL .188X.75

$

$

Not available

7

Gravely 05505300

BSHG-FLG .625X1.156X.375 SI

$6.49

$

Usually ships in 4-12 days

0

8

Gravely 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

In Stock, only 3 left!

0

9

Gravely 01310000

RETAINING PLATE

$

$

Not available

10

Gravely 02705400

PINION
(Superseded to 03841600)

$

$

Not available

11

Gravely 07126400

T/WHL ASSY

$70.99

$

In Stock, Qty 10

0

Gravely 07108000

TIRE 4.10/3.50-4

$28.99

$

In Stock, Qty 9

0

Gravely 05505800

BSHG-FLG .750X1.380X.750X1.557

$7.49

$

In Stock, only 2 left!

0

12

Gravely 02768400

STEER GEAR SPACER .38X.75X.269

$

$

Not available

13

Gravely 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

17

Gravely 02917100

BALL JOINT

$29.99

$

In Stock, Qty 12

0

18

Gravely 02761300

STEERING GEAR

$

$

Not available

19

Gravely 02775553

BOX, STEERING

$

$

Not available

20

Gravely 02765700

STEERING LINK

$105.99

$

Usually ships in 4-12 days

0

21

Gravely 02765800

SPRING, SUSPENSION

$68.99

$

Usually ships in 4-12 days

0

22

Gravely 01591100

BUSHING-1"X.75"X1"

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 06427600

WSHR-FL-STL .700X1.47X.134 YWZ

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

27

Gravely 06227000

BLT-RDHDSQNK .38-16X.75 G5BZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

28

Gravely 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 044753

ROD END, .38 RH
(Superseded to 03563100)

$17.99

$

In Stock, only 3 left!

0

30

Gravely 02765900

WLDMT-SPINDLE (RH)

$

$

Not available

31

Gravely 02766000

WLDMT-SPINDLE (LH)

$

$

Not available

32

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 4 left!

0

33

Gravely 06538800

NUT-LK-NYL .375-24 W/INSR YWZC

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 02761451

STEERING GEAR SUPPORT

$

$

Not available

35

Gravely 02771200

BRACKET, STEERING COLUMN

$

$

Not available

36

Gravely 036046

FLANGE BUSHING
(Superseded to 01212800)

$7.49

$

Usually ships in 4-12 days

0

37

Gravely 02760600

SUPPORT-STEERING COLUMN

$

$

Not available

38

Gravely 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

39

Gravely 02769900

COVER, LIGHT

$

$

Not available

40

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

41

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

42

Gravely 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

43

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 6

0
