927067 (10528 RER) - Ariens 28" Rear-Engine Rider, 10.5hp Briggs & Stratton, Hydro (SN: 000101 & Above) Electrical Clutch And Mower Blade Parts Diagram

28" Rear-Engine Rider, 10.5hp Briggs & Stratton, Hydro

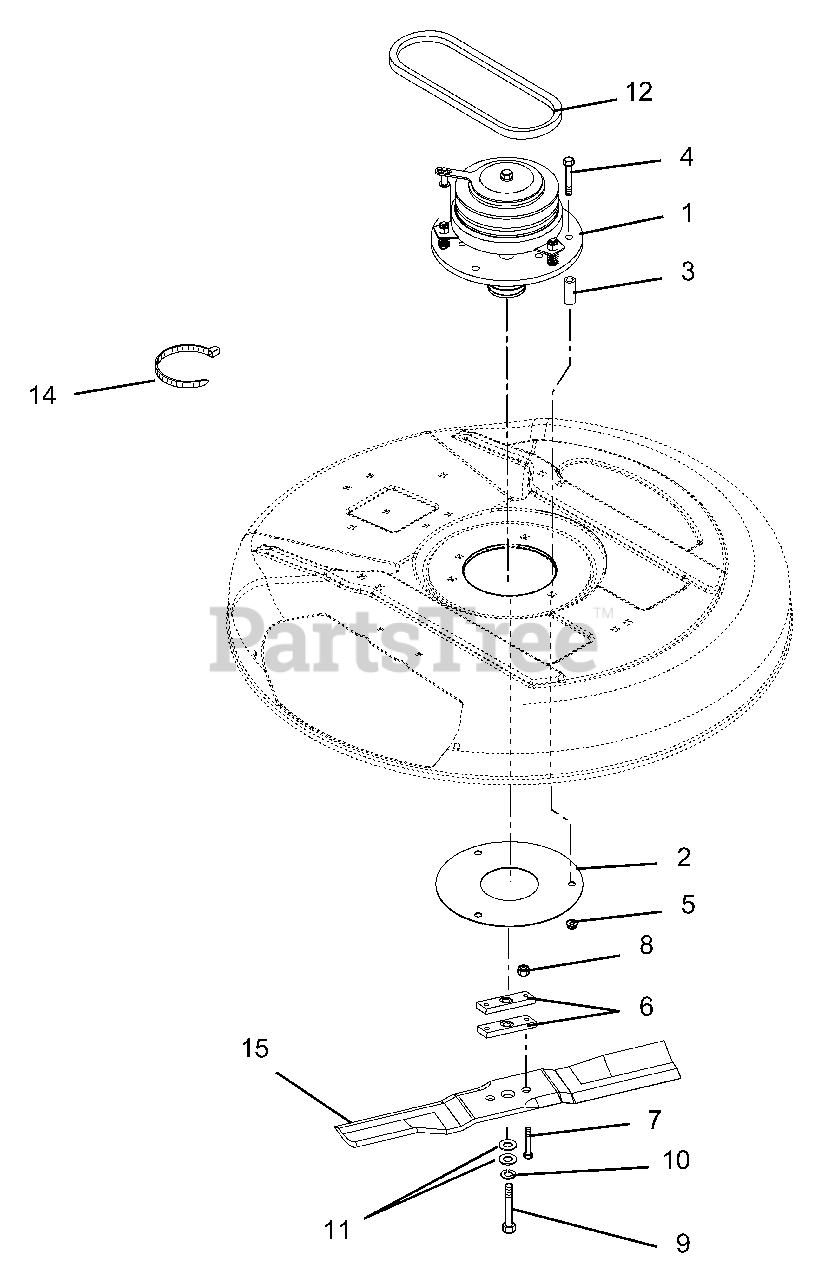

Electrical Clutch And Mower Blade Parts Diagram

  • Title

1

Ariens 52711900

KIT, CLUTCH (1232 RER)

Note: 52711900 includes belt p/n 07241400

$941.99

$

Usually ships in 4-12 days

0

2

Ariens 00467651

SHEILD, CLUTCH

$29.99

$

In Stock, only 1 left!

0

3

Ariens 09054100

SPACER .380 X .625 X 1.500

$

$

Not available

4

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 8

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00467751

SPACER, 28/32 BLADE

$36.99

$

In Stock, only 3 left!

0

7

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 2 left!

0

8

Ariens 06538800

NUT-LK-NYL .375-24 W/INSR YWZC

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 05900024

BLT-HEX .62-18X2.5 GR8 YZ

$13.99

$

Usually ships in 4-12 days

0

10

Ariens 06309500

@WSHR-LK .62X.156 REG YWZC

$2.49

$

In Stock, only 2 left!

0

11

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 19

0

12

Ariens 07221000

V-BELT, HA-RAW EDGE

Note: (28-inch mower decks)

$34.99

$

In Stock, only 4 left!

0

12

Ariens 07241400

BELT,HA WRAPPED

Note: (32-inch mower decks)

$53.99

$

In Stock, only 2 left!

0

13

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

14

Ariens 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 01600600

BLADE-CUTTING 28"

$27.99

$

In Stock, only 3 left!

0

15

Ariens 02774500

BLADE, 32" RER/ZS

$43.99

$

In Stock, only 3 left!

0
