927306 (RM 9028 E) - Ariens 28" Rear-Engine Rider, 9hp Briggs & Stratton (SN: 000101 & Above) Mower Pan Parts Diagram

28" Rear-Engine Rider, 9hp Briggs & Stratton

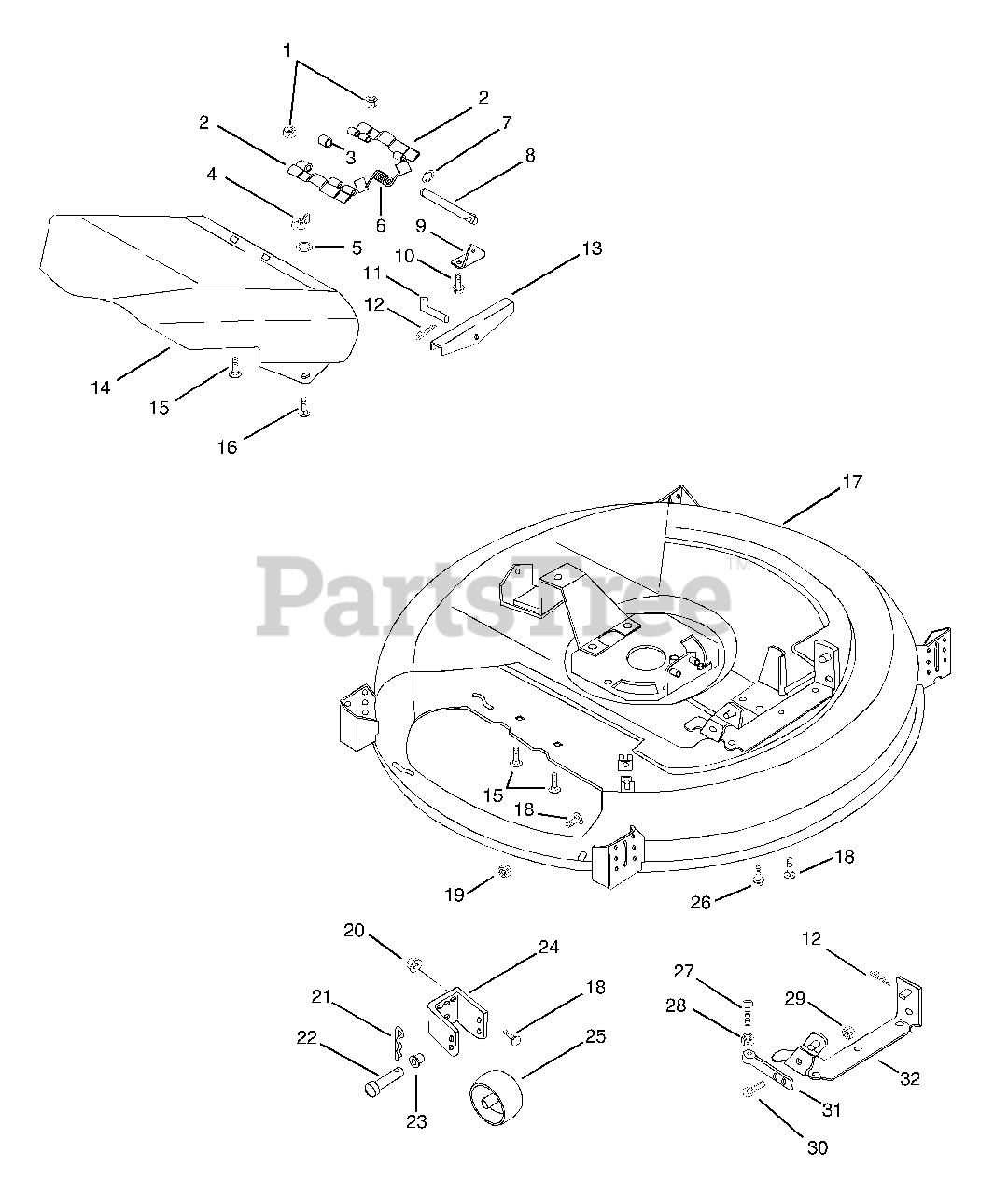

Mower Pan Parts Diagram

  • Title

1

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$28.99

$

In Stock, only 3 left!

0

3

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

Note: (For models 054, 056)

$6.49

$

In Stock, only 4 left!

0

4

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$6.49

$

In Stock, only 1 left!

0

5

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 08307200

SG-TORS .095X.50X 1.0

Note: (For models 054, 056)

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 08318500

SG-TORS .090X.37X.63

Note: (For models 046, 053, 306, 307, 310)

$

$

Not available

6

Ariens 08314500

SG-TORS .090X.37X.63

Note: (For models 055, 308)

$15.99

$

In Stock, only 2 left!

0

7

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 03624200

PIN

$54.99

$

In Stock, only 1 left!

0

9

Ariens 02509700

REAR MOUNTING BRACKET

Note: (For models 054, 056)

$

$

Not available

10

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (For models 54, 56)

$1.99

$

In Stock, Qty 20+

0

11

Ariens 00212300

CLEVIS PIN

$3.99

$

In Stock, only 3 left!

0

12

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 02708300

SWIVEL BRACKET

$23.99

$

Usually ships in 4-12 days

0

14

Ariens 02520400

PAN CHUTE EXTENSION

Note: (For models 054, 056)

$114.99

$

Usually ships in 4-12 days

0

14

Ariens 52707000

28" DEFLECTOR W/DECALS

Note: (For models 046, 053, 306, 307, 310)

$141.99

$

Usually ships in 4-12 days

0

14

Ariens 53508200

32" DEFLECTOR W/DECAL

Note: (For models 055, 308)

$

$

Not available

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 52708700

28"MOWER PAN W/DEFLECTOR&DECAL

Note: (For models 046, 053, 306, 307, 310)

$

$

Not available

17

Ariens 52708800

28" MOWER PAN SERVICE ASSEMBLY

Note: (For models 046, 053, 306, 307, 310)

$

$

Not available

17

Ariens 52702200

30"MOWER PAN W/DEFLECTOR&DECAL

Note: (For models 054, 056)

$

$

Not available

17

Ariens 52709400

30" MOWER PAN ASSEMBLY

Note: (For models 054, 056)

$

$

Not available

17

Ariens 52709600

32"MOWER PAN W/DEFLECTOR&DECAL

Note: (For models 055, 308)

$

$

Not available

17

Ariens 52709700

32" MOWER PAN ASSY RETROFIT

Note: (For models 055, 308)

$

$

Not available

18

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$6.99

$

In Stock, Qty 7

0

23

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$2.49

$

In Stock, Qty 20+

0

24

Ariens 02747600

ROLLER CLEVIS
(Superseded to 02747651)

Note: (For models 046, 053, 055, 306, 307, 308, 310)

$28.99

$

In Stock, only 2 left!

0

25

Ariens 02745400

ROLLER

Note: (For models 046, 053, 055, 306, 307, 308, 310)

$16.99

$

In Stock, Qty 20+

0

26

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 18

0

27

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 16

0

28

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 02736600

ADJUSTING ARM

$

$

Not available

32

Ariens 02736800

FRONT BRACKET 30"

Note: (For models 054, 056)

$

$

Not available
