928 E (1695441) - John Deere 28" Snow Thrower (2008) Wheels and Tires Group Parts Diagram

28" Snow Thrower

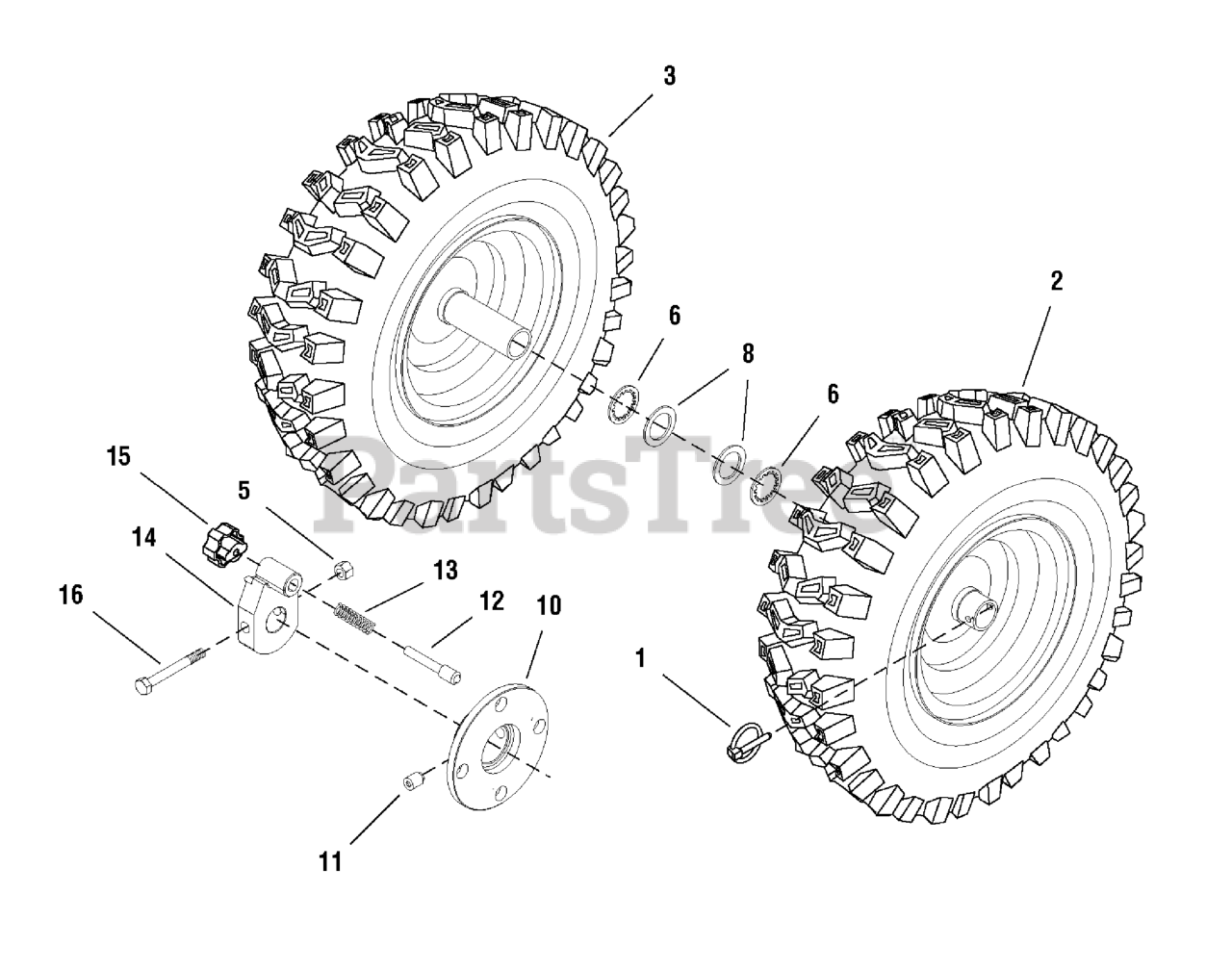

Wheels and Tires Group Parts Diagram

  • Title

1

Murray MT1679697SM

PIN, Klik

$

$

Currently unavailable

2

Murray MT1735357SM

WHEEL & TIRE ASSEMBLY, L.H.

$

$

Currently unavailable

2

Murray MT1735357SM

WHEEL & TIRE ASSEMBLY, L.H. SNOW XTRAC 16 x 4.8-8

$

$

Currently unavailable

3

Murray MT1735358SM

WHEEL & TIRE ASSEMBLY, R.H.

$

$

Currently unavailable

3

Murray MT1735358SM

WHEEL & TIRE ASSEMBLY, R.H. SNOW XTRAC 16 x 4.8-8

$

$

Currently unavailable

5

Murray MT1920397SM

NUT, Hex Lock ESNA Light, 1/4-20 NC3B Black

Note: (Used On ST9528)

$

$

Currently unavailable

6

Murray MT1657528SM

RETAINING RING, Extertal, #75 0.750 Self Lock

$

$

Currently unavailable

8

Murray MT712120MA

WASHER, Flat .765 x 1.12 x .06 YZ
(Superseded to 712120MA)

$4.99

$

In Stock, only 2 left!

0

10

Murray MT1501032EMA

DISC, Wheel Lock

Note: (Used On ST9528)

$

$

Currently unavailable

11

Murray MT2001066MA

SCREW, 3/8-16 x 1/2 Hex-18
(Superseded to 2001066MA)

Note: (Used On ST9528)

$5.49

$

In Stock, only 2 left!

0

12

Murray MT1501856YZMA

PIN, Wheel Lock 1/4-20 0.7
(Superseded to 1501856YZMA)

Note: (Used On ST9528)

$15.99

$

In Stock, only 3 left!

0

13

Murray MT164X34MA

SPRING, Compression
(Superseded to 164X34MA)

Note: (Used On ST9528)

$5.99

$

In Stock, only 2 left!

0

14

Murray MT1501857MA

HUB, Wheel Lock Centered

Note: (Used On ST9528)

$

$

Currently unavailable

15

Murray MT1501855MA

KNOB, Wheel Lock
(Superseded to 1501855MA)

Note: (Used On ST9528)

$13.99

$

In Stock, only 1 left!

0

16

Murray MT73839MA

CAPSCREW, 1/4-20 x 2-1/4 Hex Head GR
(Superseded to 73839MA)

Note: (Used On ST9528)

$5.49

$

In Stock, Qty 9

0
