928 SWE (31AH9M7G710) - Cub Cadet 28" Snow Thrower (2005-2) Handle Assembly Parts Diagram

28" Snow Thrower

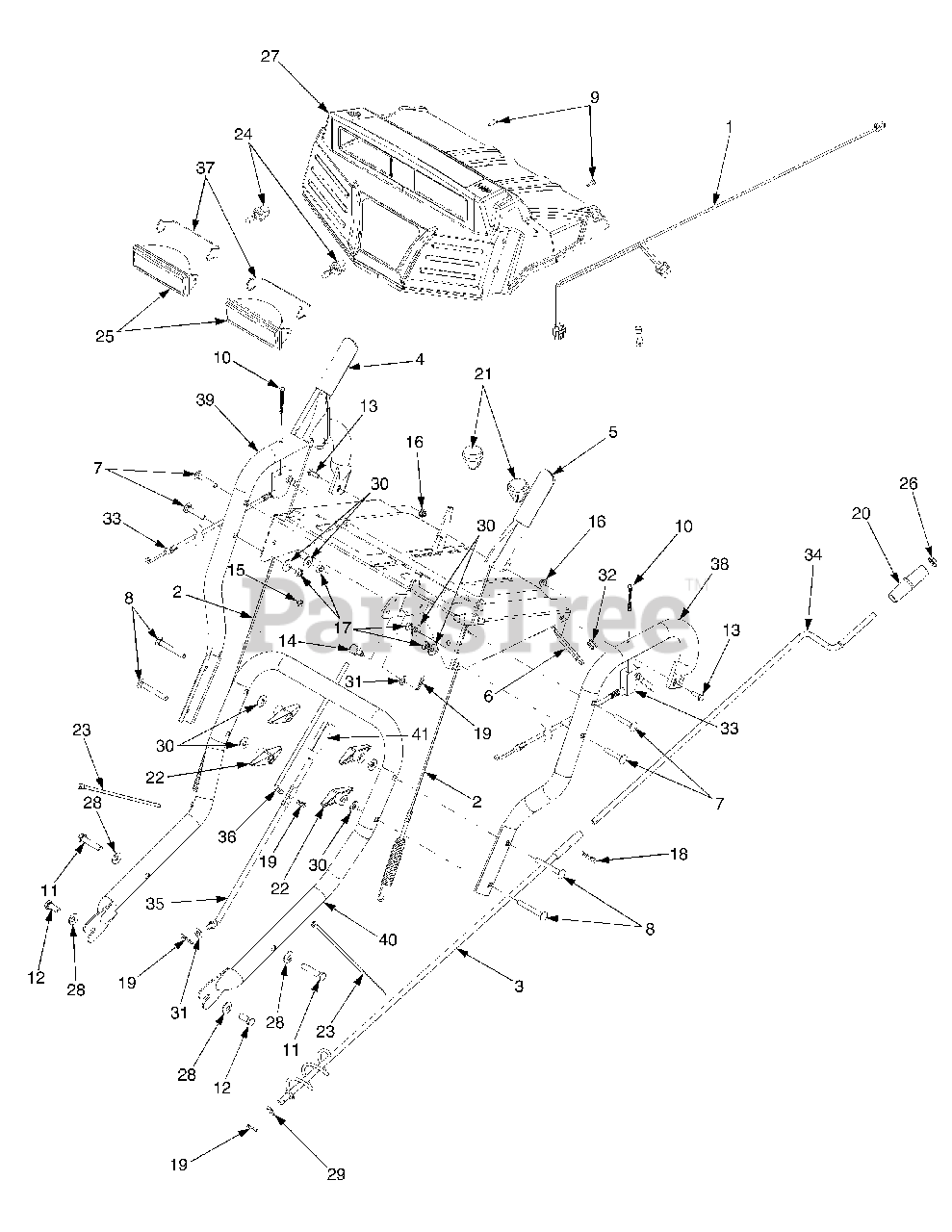

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 629-04010

Harness, Headlight Wire
(Superseded to 629-04010A)

$

$

Not available

2

Cub Cadet 646-0012

Cable Assembly, Auger/Drive Engagement

$34.99

$

In Stock, only 1 left!

0

3

Cub Cadet 684-0053B

Crank, Chute, 26.0
(Superseded to 684-0053B-0637)

Variations

Cub Cadet 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 705-5218

Handle, Egagement, RH

$37.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 705-5219

Handle, Egagement, LH

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 705-5266

Bracket, Chute Crank
(Superseded to 705-5266-0637)

Variations

Cub Cadet 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0458

Screw, Carriage, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0572

Screw, Carriage, 5/16-18 x 2.5

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet 710-1003

Screw, Hex Wash Hd Tapp, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1625

Screw, Oval Hd C/Sunk, #10-24 x 1.75

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-1878

Screw, Hex Patch Lock, 3/8-16 x 1,75 GR5
(Superseded to 710-04682)

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1879

Screw, Hex Patch Lock, 3/8-16 x .88 GR5

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 711-0677

Ferrule, 5/16-18 x .312 Dia
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

15

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

16

Cub Cadet 712-04064

Nut, Hex Flange Insert Lock, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0101

Pin, Internal Cotter

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 720-0201A

Knob, Crank

$10.99

$

In Stock, Qty 6

0

21

Cub Cadet 720-0232

Knob, Shift
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

22

Cub Cadet 720-0284

Knob, Wing Nut, 5/16-18

$6.49

$

In Stock, Qty 20+

0

23

Cub Cadet 725-0157

Tie, Cable

$3.49

$

In Stock, only 4 left!

0

24

Cub Cadet 725-1658

Lamp, Halogen, 27W
(Superseded to 925-1658)

$55.99

$

In Stock, Qty 5

0

25

Cub Cadet 725-1672

Housing, Lamp
(Superseded to 925-1672)

$83.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0100

Cap, Push, 3/8

$3.99

$

In Stock, Qty 7

0

27

Cub Cadet 731-04069

Panel, Handle

$70.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 777I22553

Graphic, Left Turn/Auger Control

$

$

Not available

27

Cub Cadet 777I22554

Graphic, Chute Tilt/Shift

$

$

Not available

27

Cub Cadet 777I22556

Graphic, Starting Instr/Drive Control

$

$

Not available

27

Cub Cadet 777I22363

Graphic, Drive/Auger Lock

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 777D09462

Graphic, Cub Cadet

$

$

Not available

27

Cub Cadet 777D09460

Graphic, 928 SWE 28" S.T. Only

$

$

Not available

27

Cub Cadet 777D09463

Graphic, 933 SWE 33" S.T. Only

$

$

Not available

27

Cub Cadet 777D09465

Graphic, 945 SWE 45" S.T. Only

$

$

Not available

28

Cub Cadet 736-0105

Washer, Belleville, .375 x .87 x .063

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0185

Washer, Flat, .375 x .738 x .063

$3.49

$

In Stock, Qty 15

0

30

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 741-0475

Bushing, Plastic, .38 ID
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 746-0950A

Cable Assembly, Trigger Control

$20.99

$

In Stock, only 1 left!

0

34

Cub Cadet 747-0624

Rod, Chute Crank
(Superseded to 747-0624-0637)

Variations

Cub Cadet 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-0983A

Rod, Lower Shift

$42.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-0997

Rod, Upper Shift

$64.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-1136

Retainer, Headlight

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 749-0989A

Handle, Upper LH

Variations

Cub Cadet 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 749-0990A

Handle, Upper RH

Variations

Cub Cadet 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 749-0991

Handle, Lower

Variations

Cub Cadet 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 750-0963

Connector, Shift Rod
(Superseded to 950-0963)

$32.99

$

In Stock, only 3 left!

0
