93-0510 - Toro Cruise Control Kit for Tractors CRUISE CONTROL Parts Diagram

Cruise Control Kit for Tractors

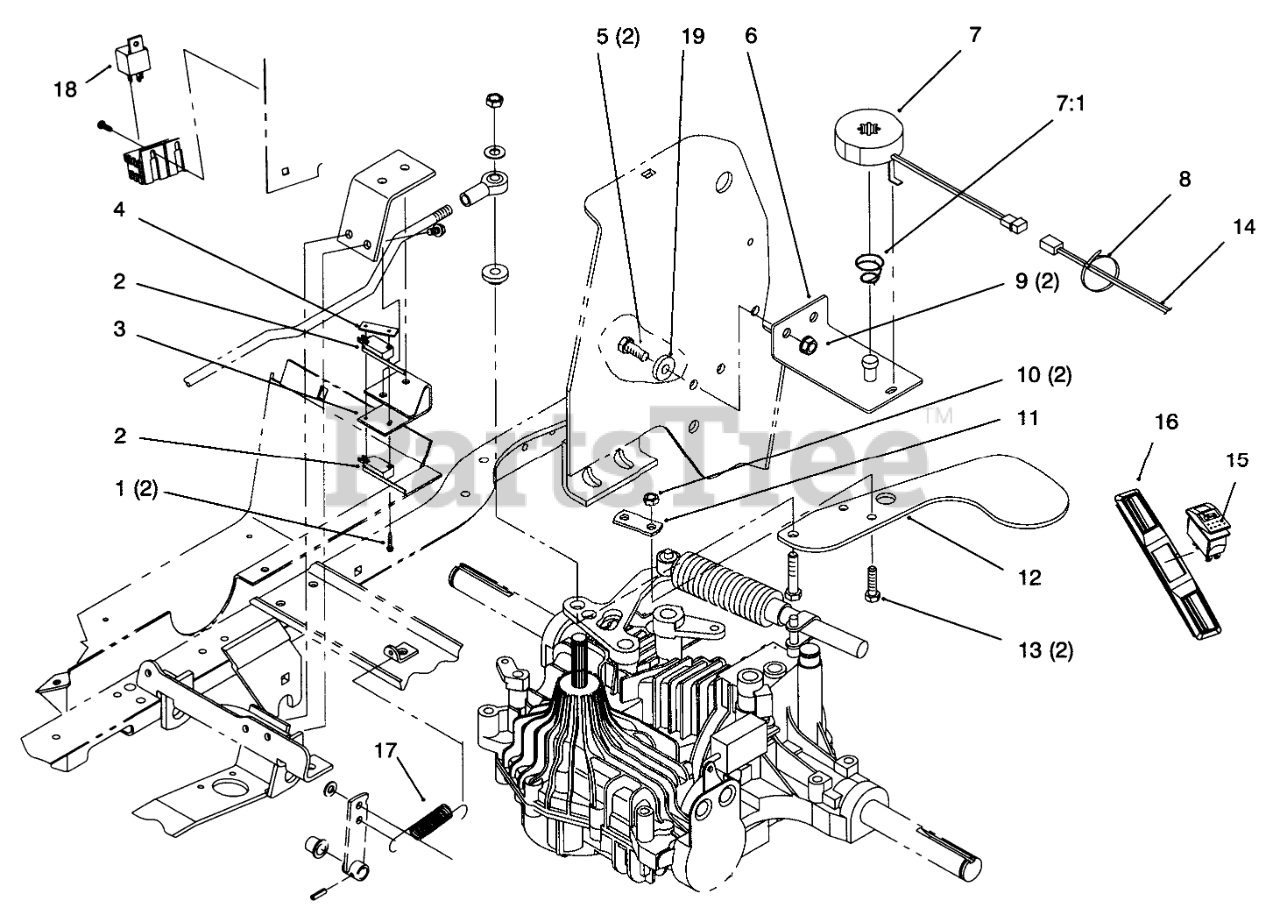

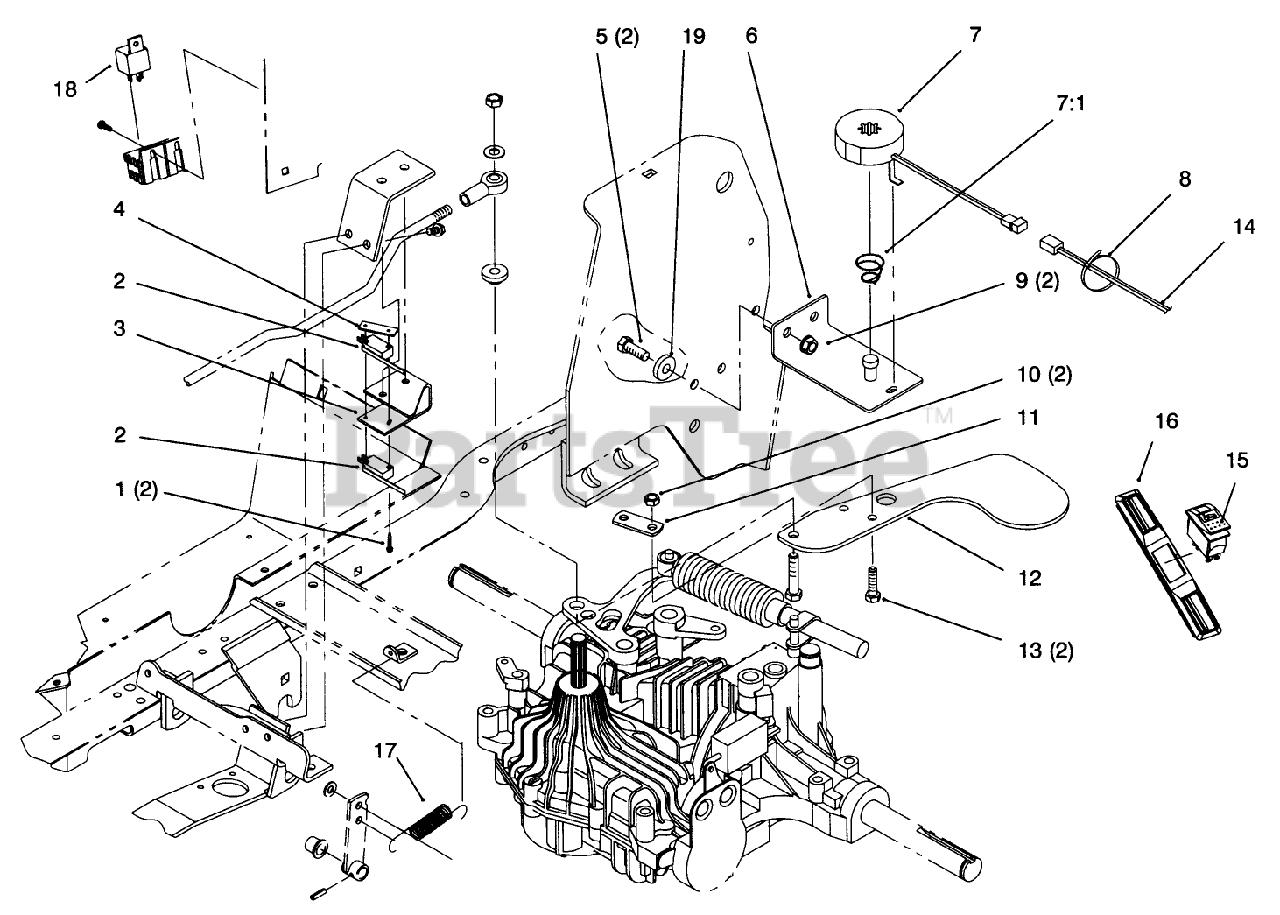

CRUISE CONTROL Parts Diagram

  • Title

1

Toro 93-0539

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 88-9930

SWITCH-MICRO

$43.99

$

In Stock, only 2 left!

0

3

Toro 93-0520

Bracket-Switch
(Superseded to 93-0520-03)

$

$

Not available

4

Toro 3290-354

NUT-SPEED

$11.99

$

Usually ships in 3-6 days

0

5

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 93-0512-03

Cruise Bracket
(Superseded to 93-0512)

$

$

Not available

7

Toro 93-4366

ASM - MAGNET
(Superseded to 99-8090)

$329.99

$

Usually ships in 3-6 days

0

7:1

Toro 93-6601

SPRING-COMPRESSION

$2.49

$

Usually ships in 3-6 days

0

8

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 93-0515

CLAMP - CRUISE

$

$

Not available

12

Toro 93-0511

ARM - CRUISE

$

$

Not available

13

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

14

Toro 93-4364

HARNESS - WIRE

$

$

Not available

15

Toro 93-0527

SWITCH-CRUISE

$147.99

$

Usually ships in 3-6 days

0

16

Toro 93-0516

COVER-SLOT, RH

$

$

Not available

Toro 93-0533

COVER-SLOT, RH

$

$

Not available

17

Toro 93-0540

SPRING-EXTENSION

$

$

Not available

18

Toro 116397

RELAY

$42.99

$

In Stock, only 2 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
