93-08XP02 (A-81 R) - Toro Rear-Engine Riding Mower (1979) Electrical System - Battery Powered (cont-D) Parts Diagram

Rear-Engine Riding Mower

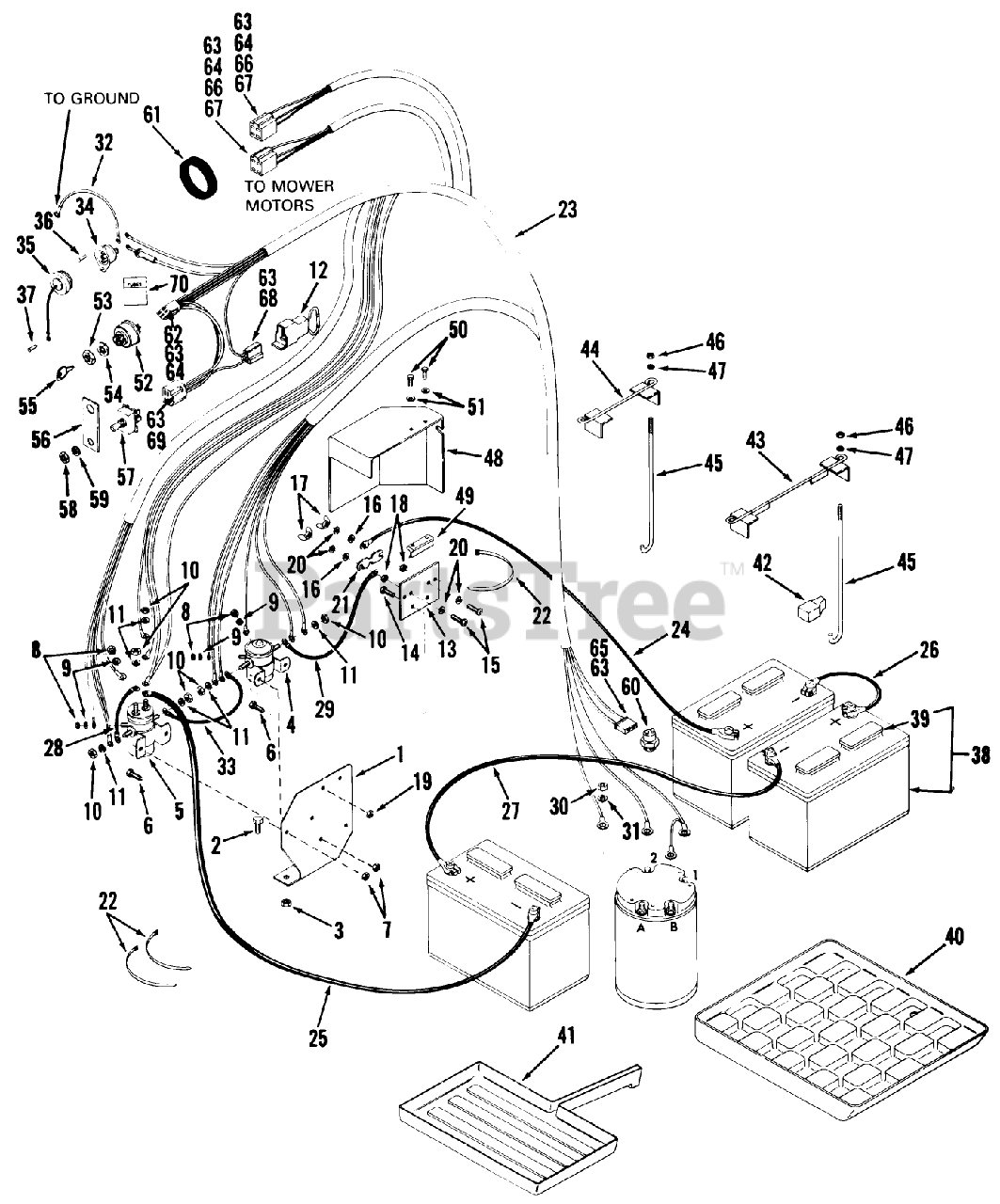

Electrical System - Battery Powered (cont-D) Parts Diagram

  • Title

36

Toro 923786

RIVET
(Superseded to 3269-24)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$2.99

$

In Stock, Qty 7

0

37

Toro 923787

See Supercession: 3269-13
(Superseded to 3269-13)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$0.99

$

In Stock, only 2 left!

0

38

Toro 107111

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

39

Toro 107167

Battery Cap

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Currently unavailable

40

Toro 107159

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

41

Toro 523322

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

42

Toro 516333

DISCONTINUED
(Superseded to 107383)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

43

Toro 104274

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

44

Toro 102877

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

45

Toro 104276

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

46

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$0.99

$

In Stock, Qty 6

0

47

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$0.99

$

In Stock, Qty 15

0

48

Toro 107160

Cover-Component Mounting Plate

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

49

Toro 107240

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

50

Toro 910764

Screw 6-32 X 1/2

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Currently unavailable

51

Toro 920003

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

52

Toro 104270

SWITCH-IGNITION

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$116.99

$

Usually ships in 3-6 days

0

53

Toro 7261

See Supercession: 88-2130
(Superseded to 88-2130)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

54

Toro 920159

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

55

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$5.49

$

In Stock, Qty 14

0

56

Toro 107406

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

57

Toro 104271

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

58

Toro 104327

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

59

Toro 920158

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

60

Toro 105877

See Supercession: 38-0430
(Superseded to 38-0430)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$62.99

$

Usually ships in 3-6 days

0

61

Toro 104248

GROMMET

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$14.99

$

Usually ships in 3-6 days

0

62

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$6.49

$

In Stock, Qty 13

0

63

Toro 102651

DUP PART SEE $BOOK

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

64

Toro 105306

TERMINAL-TAB RCPT

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$4.49

$

Usually ships in 3-6 days

0

65

Toro 106035

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

66

Toro 107625

DISCONTINUED

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

67

Toro 107626

Fem. Term.-Part of 23-12 Ga

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Currently unavailable

68

Toro 107627

See Supercession: 110459
(Superseded to 110459)

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$1.99

$

In Stock, only 2 left!

0

69

Toro 107628

3-CONTACT CONNECTOR

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available

70

Toro 101639

FUSE

Note: NOTE: WIRING HARNESS PARTS NOT LISTED ARE NOT AVAILABLE FROM WHEEL HORSE AS INDIVIDUAL PARTS.

$

$

Not available
