931005 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Hydro (SN: 000101 & Above) Dash, Dash Controls & Electrical Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Hydro

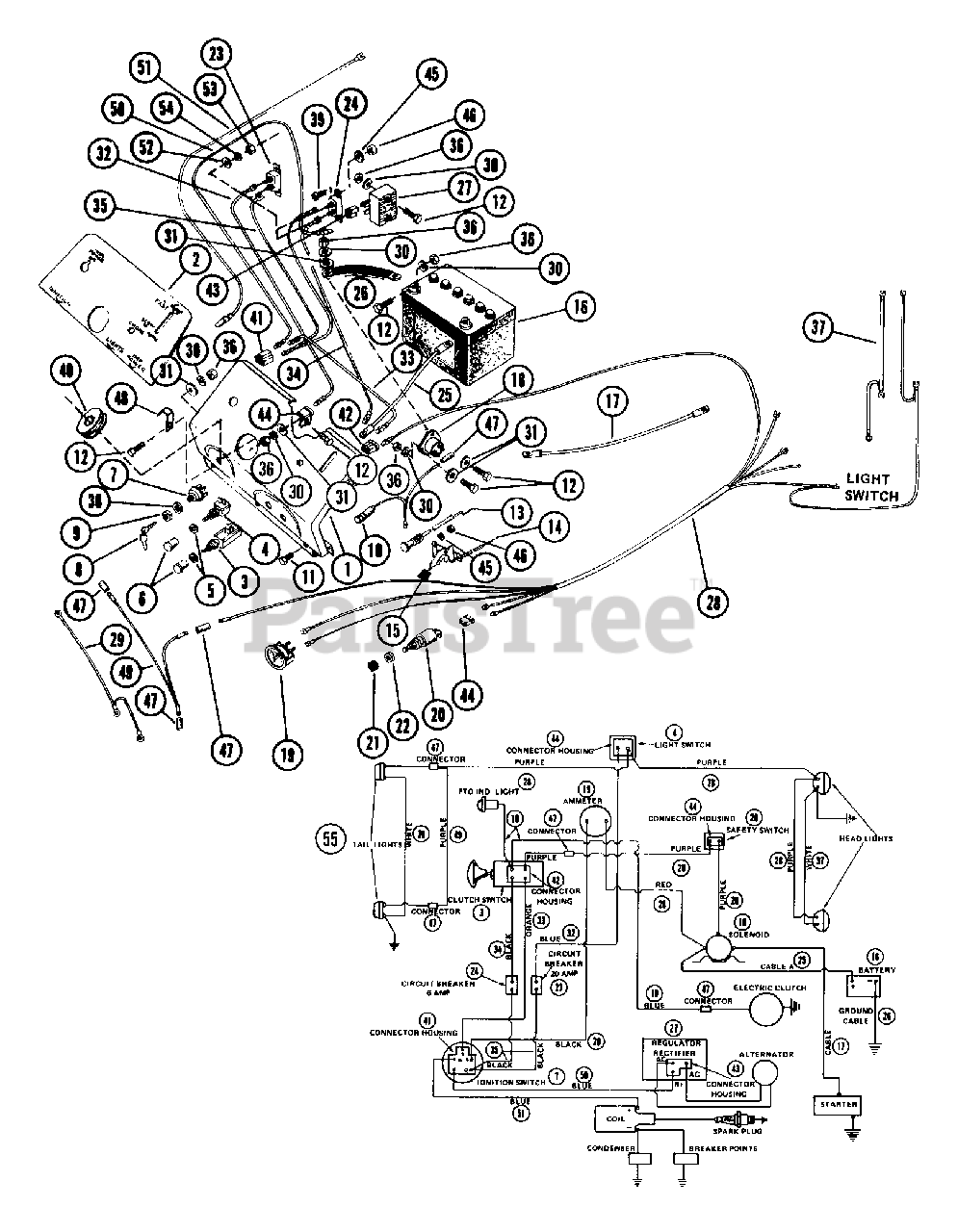

Dash, Dash Controls & Electrical Parts Diagram

  • Title

1

Ariens 53100100

DASH ASSEMBLY

$

$

Not available

2

Ariens 07826600

DECAL-DASH S-12,S-14,S-16
(Superseded to 07846500)

$

$

Not available

3

Ariens 03115000

CLUTCH SWITCH
(Superseded to 00355900)

$85.99

$

Usually ships in 4-12 days

0

4

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

5

Ariens 06510400

NUT .50-20 PL

$

$

Not available

6

Ariens 07506800

KNOB

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 03115200

IGNITION SWITCH
(Superseded to 59211800)

$70.99

$

In Stock, Qty 8

0

8

Ariens 01315700

KEYS
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

9

Ariens 06510600

NUT .562-24

$

$

Not available

10

Ariens 03117900

P.T.O. INDICATOR & WIRE

$

$

Not available

11

Ariens 07404300

SCR-TAP 10-16X.50 HWH PL AB

$

$

Not available

12

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

13

Ariens 06910300

CHOKE CONTROL

$51.99

$

Usually ships in 4-12 days

0

14

Ariens 06910400

THROTTLE CONTROL

$

$

Not available

15

Ariens 07501900

KNOB

$

$

Not available

16

Ariens 03108500

BATTERY
(Superseded to 53123300)

$

$

Not available

17

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$23.99

$

In Stock, only 1 left!

0

18

Ariens 02913200

SOLENOID,STARTER SWITCH
(Superseded to 53504000)

$81.99

$

Usually ships in 4-12 days

0

19

Ariens 03111700

AMMETER

$

$

Not available

20

Ariens 03110700

SAFETY SWITCH

$40.99

$

Usually ships in 4-12 days

0

21

Ariens 07506300

BOOT

$

$

Not available

22

Ariens 06507100

NUT-HEX .625-32 PL

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 03110200

CIRCUIT BREAKER

$

$

Not available

24

Ariens 03110800

CIRCUIT BREAKER

$

$

Not available

25

Ariens 03111000

CABLE

$

$

Not available

26

Ariens 03110300

GROUND CABLE
(Superseded to 03013600)

$

$

Not available

27

Ariens 03110900

REGULATOR RECTIFIER

$

$

Not available

28

Ariens 03111600

WIRE HARNESS

$

$

Not available

29

Ariens 03114700

WIRE
(Superseded to 03000100)

Note: (WHITE)GROUND FOR TAIL LIGHTS

$

$

Not available

30

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

31

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

32

Ariens 03111400

WIRE
(Superseded to 03000100)

Note: (BLUE)

$

$

Not available

CIRCUIT BREAKER TO LIGHT SWITCH

$

$

Not available

33

Ariens 03111200

WIRE

Note: (ORANGE)

$

$

Not available

IGNITION TO CLUTCH SWITCH

$

$

Not available

34

Ariens 03111300

WIRE

Note: (BLACK)

$

$

Not available

CIRCUIT TO CLUTCH SWITCH

$

$

Not available

35

Ariens 03111500

WIRE

Note: (BLACK)

$

$

Not available

IGNITION TO CIRCUIT BREAKER

$

$

Not available

36

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

37

Ariens 03110400

WIRE

Note: (WHITE)GROUND FOR HEAD LIGHTS

$

$

Not available

38

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

39

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 07506100

GROMMET

$

$

Not available

41

Ariens 02347800

CONNECTOR HOUSING
(Superseded to 20645101)

$8.49

$

In Stock, Qty 6

0

42

Ariens 02359500

CONNECTOR

$

$

Not available

43

Ariens 03110600

CONNECTOR

$

$

Not available

44

Ariens 03110500

CONNECTOR

$

$

Not available

45

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.99

$

Usually ships in 4-12 days

0

46

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

47

Ariens 03110100

WIRE CONNECTOR

$

$

Not available

48

Ariens 03107000

CLIP

$

$

Not available

49

Ariens 03116800

WIRE
(Superseded to 03000100)

$

$

Not available

50

Ariens 03111900

WIRE
(Superseded to 03000300)

Note: (BLUE)

$

$

Not available

51

Ariens 03111800

WIRE

Note: (BLUE)

$

$

Not available

52

Ariens 06414100

WSHR-FL-STL .219X.500X.049 PL
(Superseded to 06442700)

$1.49

$

Usually ships in 4-12 days

0

53

Ariens 06502600

NUT 10-32 PL

$

$

Not available

54

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.99

$

Usually ships in 4-12 days

0

55

Ariens 63100600

TAIL LIGHT
(Superseded to 53128400)

Note: (Used Only On Model(s): 931004,5,6) BULB G.E.1895LENS ARIENS NO. 31375.

$124.99

$

Usually ships in 4-12 days

0
