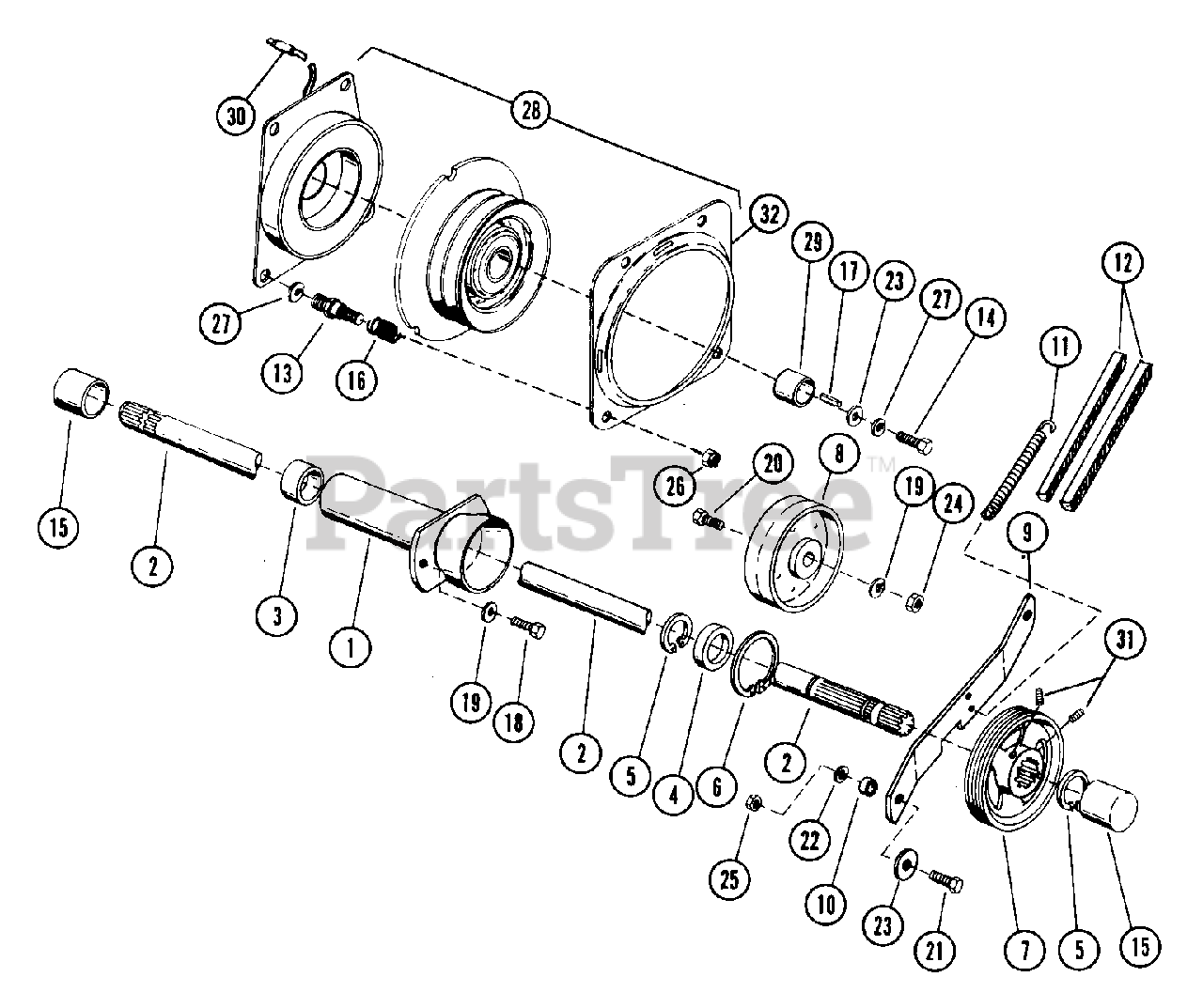

931005 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Hydro (SN: 000101 & Above) Front PTO And Electrical Clutch Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Hydro

Front PTO And Electrical Clutch Parts Diagram

  • Title

1

Ariens 53101300

PTO HOUSING SERVICE ASSEMBLY
(Superseded to 53115500)

$

$

Not available

2

Ariens 03118300

FRONT P.T.O. SHAFT
(Superseded to 53115500)

$

$

Not available

3

Ariens 05410200

BRG-NEEDLE 1.0X1.25X.93

$48.99

$

Usually ships in 4-12 days

0

4

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

5

Ariens 05706200

RG-RTNG-EXT 1.00X.042

$2.99

$

In Stock, Qty 20+

0

6

Ariens 05702400

RG-RTNG INT 2.000X.062

$

$

Not available

7

Ariens 03197900

P.T.O. SHEAVE
(Superseded to 53115400)

$

$

Not available

8

Ariens 07305500

IDLER-FLAT 3.218X.38
(Superseded to 07308800)

$40.99

$

In Stock, Qty 7

0

9

Ariens 03114800

IDLER ARM
(Superseded to 03063100)

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$

$

Not available

9

Ariens 03107100

IDLER ARM

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$

$

Not available

10

Ariens 03115700

SPACER .512X.747X.208

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$39.99

$

In Stock, only 1 left!

0

10

Ariens 03105300

SPACER .516X.749X.265

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$

$

Not available

11

Ariens 08317600

SG-TENS 6.0 FREE LENGTH
(Superseded to 08320300)

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$19.99

$

In Stock, Qty 10

0

11

Ariens 08312600

SG-TENS 6.0 FREE LENGTH
(Superseded to 08325100)

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$46.99

$

Usually ships in 4-12 days

0

12

Ariens 07211100

V-BELT, 4L-WRAPPED (SET)

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$43.99

$

In Stock, only 3 left!

0

12

Ariens 07207600

V-BELT, 4L-WRAPPED (SET)

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$

$

Not available

13

Ariens 03154400

STUD

$

$

Not available

14

Ariens 05914200

BLT-HEX .44-20X1.00 PL GR2
(Superseded to 05964500)

$

$

Not available

15

Ariens 07506000

SHAFT COVER

$4.99

$

In Stock, only 2 left!

0

16

Ariens 08314800

SG-COMP WARNER ELEC.

$

$

Not available

17

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

18

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.99

$

In Stock, Qty 10

0

19

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 17

0

20

Ariens 05906800

BLT-HEX .38-16X2.00 PL GR2
(Superseded to 05963300)

$3.49

$

In Stock, Qty 20+

0

21

Ariens 05904200

BLT-HEX .50-13X1.25 PL GR2
(Superseded to 05958900)

$3.49

$

In Stock, Qty 9

0

22

Ariens 03115800

SHIM SPACER

Note: (Used Only On Model(s): 931013,14,15,16,17,18).

$14.99

$

In Stock, only 1 left!

0

22

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

Note: (Used Only On Model(s): 931004,5,6,7,8,9,10,11,12).

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 06404500

WSHR-FL-STL .568X2.000X.125

$

$

Not available

24

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06509700

NUT-LK .50-13 PL
(Superseded to 06536300)

$4.99

$

In Stock, Qty 15

0

26

Ariens 06511600

NUT-LK WARNER

$

$

Not available

27

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 53102300

CLUTCH & BRAKE SERVICE ASSEMBL
(Superseded to 53114100)

$

$

Not available

29

Ariens 03135800

SLEEVE

$

$

Not available

30

Ariens 03126500

BULLET TERMINAL

$

$

Not available

31

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

32

Ariens 03154500

DRUM

$

$

Not available
