931012 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Gear (SN: 000101 & Above) Center Rock Shaft Gear Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Gear

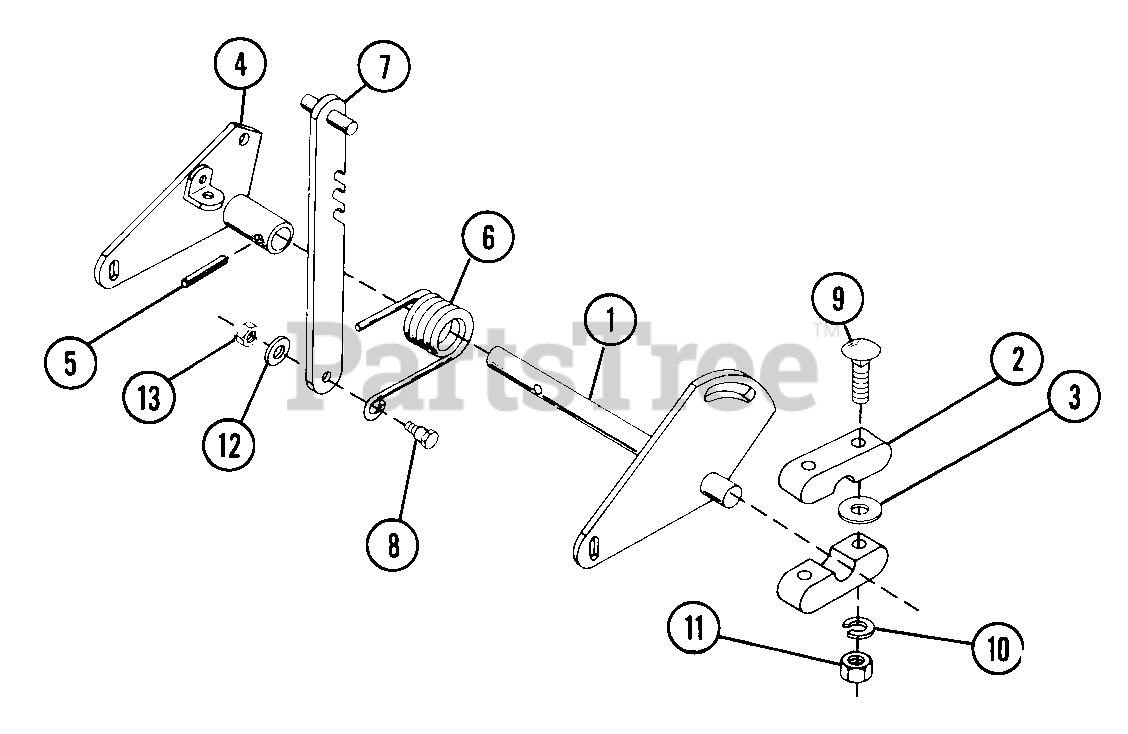

Center Rock Shaft Gear Parts Diagram

  • Title

1

Ariens 03179000

CENTER ROCK SHAFT

$

$

Not available

2

Ariens 02901100

BLOCK

$

$

Not available

3

Ariens 06411500

WSHR-FL-STL .406X.750X.005
(Superseded to 06444600)

$

$

Not available

4

Ariens 03181100

R H ROCKSHAFT LEVER

$

$

Not available

5

Ariens 05806300

PIN-GRV .250X2.00

$

$

Not available

6

Ariens 08316700

SG-TORS .312X1.38X2.031

$

$

Not available

7

Ariens 03180900

SPRING HANDLE

$

$

Not available

8

Ariens 01112000

SHOULDER BOLT .50 X .31

$

$

Not available

9

Ariens 06200500

BLT-RDHDSQNK .38-16X2.25 SHTPL
(Superseded to 06213400)

$3.99

$

In Stock, only 1 left!

0

10

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

11

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

12

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0
