931012 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Gear (SN: 000101 & Above) Muffler, Fuel Lines & Tank Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Gear

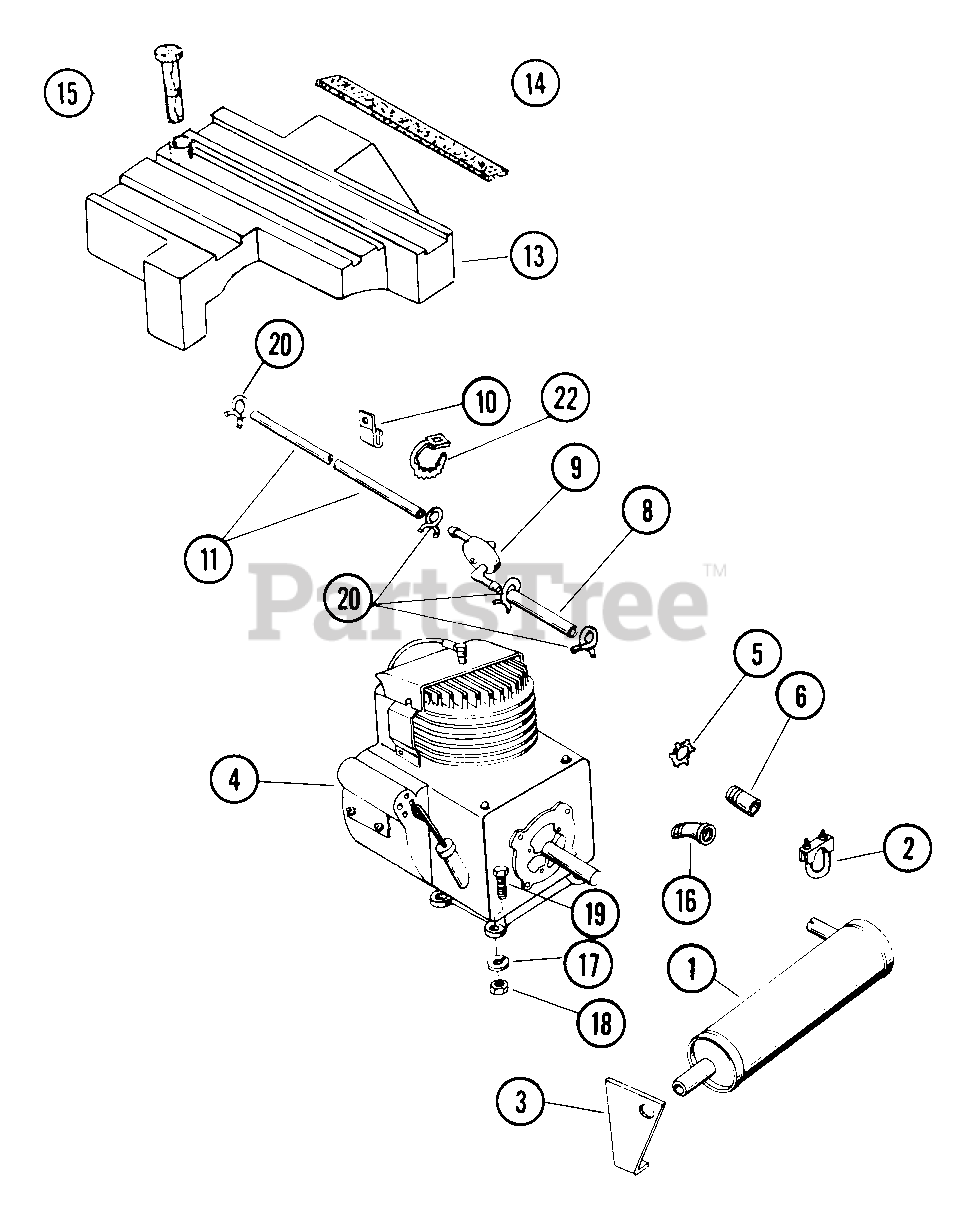

Muffler, Fuel Lines & Tank Parts Diagram

  • Title

1

Ariens 03118400

MUFFLER
(Superseded to 03001900)

Note: (Used Only On Model(s): 931006,10,11,12).

$

$

Not available

1

Ariens 03115500

MUFFLER

Note: (Used Only On Model(s): 931004,5,8,9).

$

$

Not available

2

Ariens 02307700

EXHAUST CLAMP

Note: (Used Only On Model(s): 931004,5,8,9).

$

$

Not available

2

Ariens 03126600

EXHAUST CLAMP - 1 3/4

Note: (Used Only On Model(s): 931006,10,11,12).

$

$

Not available

3

Ariens 03108200

MUFFLER BRACKET

Note: (Used Only On Model(s): 931004,5,8,9).

$

$

Not available

3

Ariens 03118700

MUFFLER BRACKET

Note: (Used Only On Model(s): 931006,10).

$

$

Not available

4

ENGINE, S-12, KOHLER NO. 301S-47404D

Note: (Used Only On Model(s): 931004,8).

$

$

Not available

4

ENGINE, S-14, KOHLER 321-S 620238

Note: (Used Only On Model(s): 931005,9,12).

$

$

Not available

4

ENGINE, S-16, KOHLER NO. 341S-71109A

Note: (Used Only On Model(s): 931006,10).

$

$

Not available

4

ENGINE, S-10,KOHLER NO. 46725D

Note: (Used Only On Model(s): 931011).

$

$

Not available

5

Ariens 07003900

NUT-LK CONDUIT 1.00

Note: (Used Only On Model(s): 931004,5,8,9,11,12).

$

$

Not available

5

Ariens 07004000

NUT-LK CONDUIT 1.25

Note: (Used Only On Model(s): 931006,10).

$

$

Not available

6

Ariens 03117700

PIPE

Note: (Used Only On Model(s): 931006,10).

$

$

Not available

6

Ariens 03118000

PIPE NIPPLE

Note: (Used Only On Model(s): 931008,9,11,12).

$

$

Not available

8

Ariens 02911300

HOSE
(Superseded to 03072500)

$

$

Not available

9

Ariens 02910800

FUEL FILTER

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

11

Ariens 03126400

1 INCH OF 031537 GAS LINE HOSE
(Superseded to 03072500)

$

$

Not available

13

Ariens 03147500

TANK
(Superseded to 03181900)

Note: (Used Only On Model(s): 931004,5,6).

$36.99

$

In Stock, only 4 left!

0

13

Ariens 03181800

GAS TANK

Note: (Used Only On Model(s): 931008,9,10,11,12).

$

$

Not available

14

Ariens 03112600

FELT STRIP
(Superseded to 03076600)

$

$

Not available

15

Ariens 03181900

GAS GAUGE & CAP

$36.99

$

In Stock, only 4 left!

0

15

Ariens 03107900

GAS GAUGE & CAP

Note: (Used Only On Model(s): 931004,5,6).

$

$

Not available

16

Ariens 03119000

STREET ELBOW 1-1/4 X 45 DEGREE

Note: (Used Only On Model(s): 931006,10,12).

$

$

Not available

17

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 16

0

18

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.99

$

In Stock, Qty 9

0

20

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 7

0

21

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available
