931017 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Hydro (SN: 000101 & Above) Main Drive Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Hydro

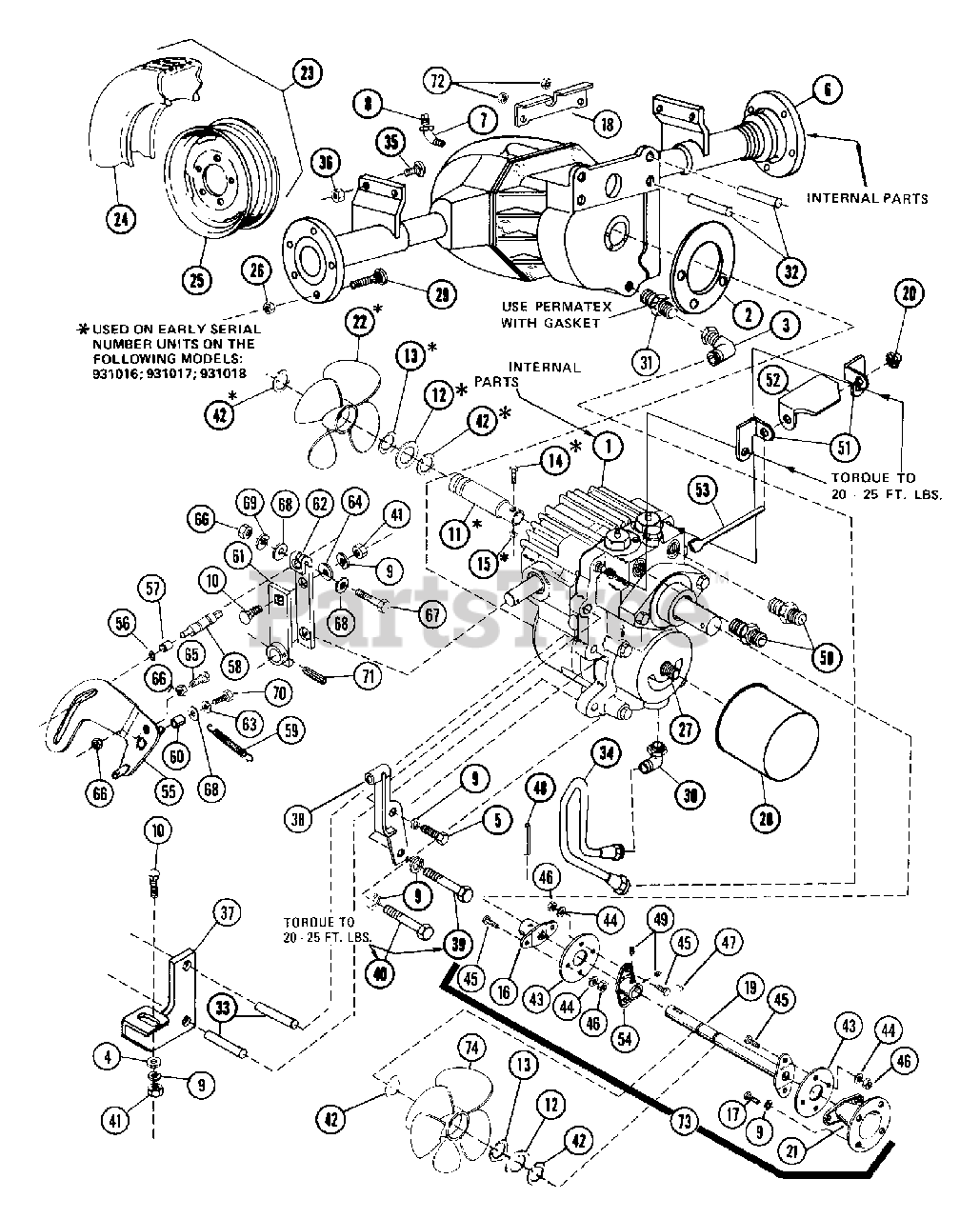

Main Drive Parts Diagram

  • Title

1

Ariens 63108800

12, 14, & 16 H.P. TRANSMISSION
(Superseded to 53120600)

$

$

Not available

2

Ariens 03148000

GASKET

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 03148500

SWIVEL 90 DEGREE ELBOW

$

$

Not available

4

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 4 left!

0

5

Ariens 05900600

BLT-HEX .38-16X1.50 PL GR2
(Superseded to 05957900)

$1.49

$

In Stock, Qty 6

0

6

Ariens 63114500

REAR AXLE & SUPPORTS

$

$

Not available

7

Ariens 03112500

STREET ELBOW 1/2 X 45

$

$

Not available

8

Ariens 00113700

PIPE PLUG

$

$

Not available

9

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

10

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03151600

SHAFT

$

$

Not available

12

Ariens 06406300

WSHR-FL-STL 1.016X1.625X.045
(Superseded to 06436300)

$1.49

$

In Stock, Qty 16

0

12

Ariens 06409500

WSHR-FL-STL .781X1.500X.060

Note: (Used Only On Model(s): 931015).

$

$

Not available

13

Ariens 01111300

WAVE WASHER 1.015X1.50X.174

$

$

Not available

13

Ariens 00332800

SPRING WASHER

Note: (Used Only On Model(s): 931015).

$

$

Not available

14

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

15

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 03198200

COUPLING

$

$

Not available

17

Ariens 05909900

BLT-HEX .38-16X.63 PL GR2

$

$

Not available

18

Ariens 03198700

TORQUE BRACKET
(Superseded to 53121700)

Note: (Used Only On Model(s): 931015).

$206.99

$

Usually ships in 4-12 days

0

19

Ariens 63115300

DRIVE SHAFT ASSY
(Superseded to 53119500)

$

$

Not available

20

Ariens 03157300

PUSH NUT, .312

$

$

Not available

21

Ariens 03197800

DRIVE COUPLING
(Superseded to 53122700)

$

$

Not available

22

Ariens 03151500

FAN

$47.99

$

In Stock, only 1 left!

0

23

Ariens 63100200

REAR TERRA TIRE 23X10.50X12
(Superseded to 07122700)

Note: (Used Only On Model(s): 931015,17,18).

$

$

Not available

24

Ariens 07110500

TIRE

Note: (Used Only On Model(s): 931015,17,18).

$

$

Not available

25

Ariens 07110600

WHL

Note: (Used Only On Model(s): 931015,17,18).

$

$

Not available

23

Ariens 63109700

REAR TERRA TIRE
(Superseded to 07115700)

Note: (Used Only On Model(s): 931016).

$

$

Not available

24

Ariens 07111400

TIRE

Note: (Used Only On Model(s): 931016).

$

$

Not available

25

Ariens 07111500

WHL 12X8.50

Note: (Used Only On Model(s): 931016).

$

$

Not available

26

Ariens 06511400

NUT-LUG .437-20 YWZC

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 03161800

UNION

$

$

Not available

28

Ariens 03192800

OIL FILTER

$27.99

$

In Stock, only 2 left!

0

29

Ariens 07004400

BLT-WHL-LUG .44-20X1.38 DANA

$

$

Not available

30

Ariens 03148900

90 DEGREE ELBOW O RING

$

$

Not available

31

Ariens 03148400

CONNECTOR

$

$

Not available

32

Ariens 03148700

SPACER .379X.625X3.480

$5.99

$

Usually ships in 4-12 days

0

33

Ariens 03148800

SPACER .379X.625X3.298

$

$

Not available

34

Ariens 03149000

TUBE ASSEMBLY

$

$

Not available

35

Ariens 06201400

BLT-RDHDSQNK .50-13X1.25 PL
(Superseded to 06224700)

$5.99

$

In Stock, only 1 left!

0

36

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

37

Ariens 03149100

BRACKET

$

$

Not available

38

Ariens 03157400

CAM PIVOT BRACKET

$

$

Not available

39

Ariens 05917500

BLT-HEX .38-16X5.00 PL GR2
(Superseded to 05957700)

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 05917100

BLT-HEX .38-16X4.75 PL GR2

$

$

Not available

41

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

42

Ariens 05706200

RG-RTNG-EXT 1.00X.042

Note: (Used Only On Model(s): 931016,17,18).

$2.49

$

In Stock, only 3 left!

0

42

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

Note: (Used Only On Model(s): 931015).

$2.49

$

In Stock, Qty 8

0

43

Ariens 03195200

SPACER COUPLING

$

$

Not available

44

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 10

0

45

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 15

0

46

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

48

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

50

Ariens 03149500

CONNECTOR
(Superseded to 07017500)

$11.99

$

In Stock, only 2 left!

0

51

Ariens 03157000

SUPPORT

$

$

Not available

52

Ariens 03157700

CAM

$

$

Not available

53

Ariens 03157200

PIVOT ROD

$

$

Not available

54

Ariens 03195100

COUPLING HUB

$

$

Not available

55

Ariens 03149200

CAM

$132.99

$

Usually ships in 4-12 days

0

56

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

57

Ariens 03113700

CAM ROLLER

$

$

Not available

58

Ariens 03102300

PIN ECCENTRIC

$

$

Not available

59

Ariens 08311600

SG-TENS .060X.75X2.81 WLD 6

$

$

Not available

60

Ariens 03169100

HUB

$

$

Not available

61

Ariens 03149300

HUB

$51.99

$

Usually ships in 4-12 days

0

62

Ariens 03149400

ARM

$

$

Not available

63

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

64

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

66

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

67

Ariens 05916200

BLT-HEX .25-20X2.00 PL GR5
(Superseded to 05967100)

$2.49

$

In Stock, only 2 left!

0

68

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 15

0

69

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

70

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

71

Ariens 05803800

PIN-ROLL .250X1.38

$2.49

$

Usually ships in 4-12 days

0

72

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

Note: (Used Only On Model(s): 931015).

$1.49

$

In Stock, only 3 left!

0

73

Ariens 53109400

DRIVE SHAFT ASSY HYDRO
(Superseded to 53122700)

$

$

Not available

74

Ariens 03199500

FAN

$36.99

$

In Stock, only 1 left!

0
