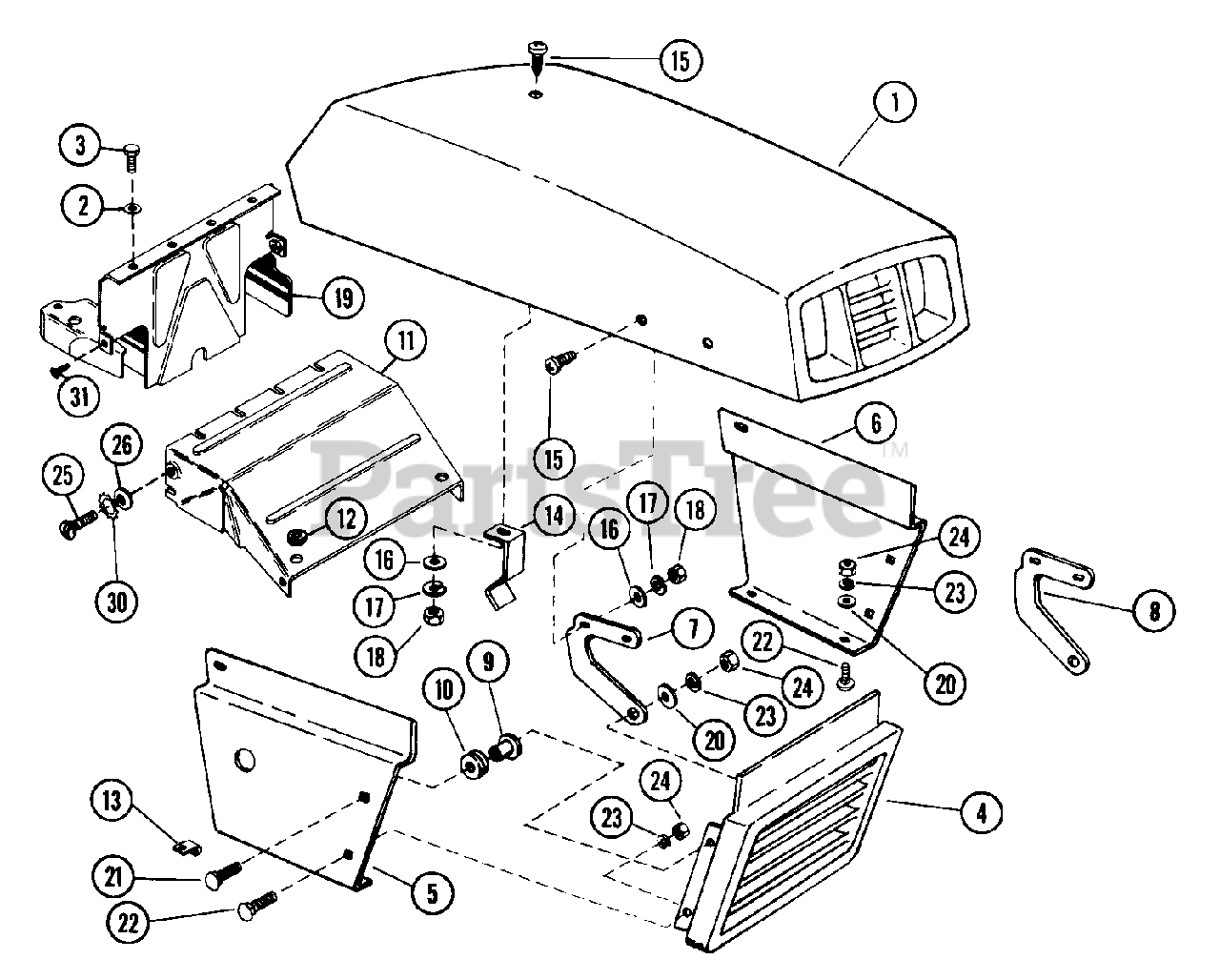

931022 - Ariens Grand Sierra Garden Tractor, 14hp Kohler, Hydro (SN: 000101 & Above) Hood, Grille, & Heat Shield Parts Diagram

Grand Sierra Garden Tractor, 14hp Kohler, Hydro

Hood, Grille, & Heat Shield Parts Diagram

  • Title

1

Ariens 03117400

HOOD & GRILL

$

$

Not available

2

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 15

0

3

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

4

Ariens 03104600

GRILL

$

$

Not available

5

Ariens 03012900

SIDE SHEET R. H.

Note: (Used Only On Model(s): 931019,26).

$

$

Not available

5

Ariens 03113900

SIDE SHEET R.H.

$

$

Not available

6

Ariens 03113800

SIDE SHEET L.H.

$

$

Not available

7

Ariens 03118500

R.H. HOOD HINGE

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 03118600

L.H. HOOD HINGE

$

$

Not available

9

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 4 left!

0

10

Ariens 07506400

GROMMET .50IDX.812OD

$5.99

$

In Stock, only 2 left!

0

11

Ariens 03109100

MUFFLER SHIELD

Note: (Used Only On Model(s): 931020,21,22,23,25).

$

$

Not available

11

Ariens 03012100

MUFFLER SHIELD

Note: (Used Only On Model(s): 931019).

$

$

Not available

11

Ariens 03031800

MUFFLER SHIELD
(Superseded to 03053000)

Note: (Used Only On Model(s): 931026).

$

$

Not available

11

Ariens 03198600

MUFFLER SHIELD

Note: (Used Only On Model(s): 931024).

$

$

Not available

12

Ariens 07506600

GROMMET .438ID X .688 OD

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

14

Ariens 03109300

HOOD STOP

$

$

Not available

15

Ariens 06103900

SCR-MCH .25-20X.75 SLTR PL
(Superseded to 05967300)

$

$

Not available

16

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 15

0

17

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 7

0

19

Ariens 03031700

EXHAUST MANIFOLD SHIELD

Note: (Used Only On Model(s): 931026).

$

$

Not available

20

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 4 left!

0

21

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 18

0

22

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

24

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 2 left!

0

25

Ariens 06104200

SCR-MCH .31-18X.75 TSKBHD PL
(Superseded to 05947000)

$1.49

$

In Stock, Qty 16

0

26

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 8

0

30

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

31

Ariens 07004500

SCR-CAP CR SEMS .25-20X.50 PL

Note: (Used Only On Model(s): 931026).

$

$

Not available
