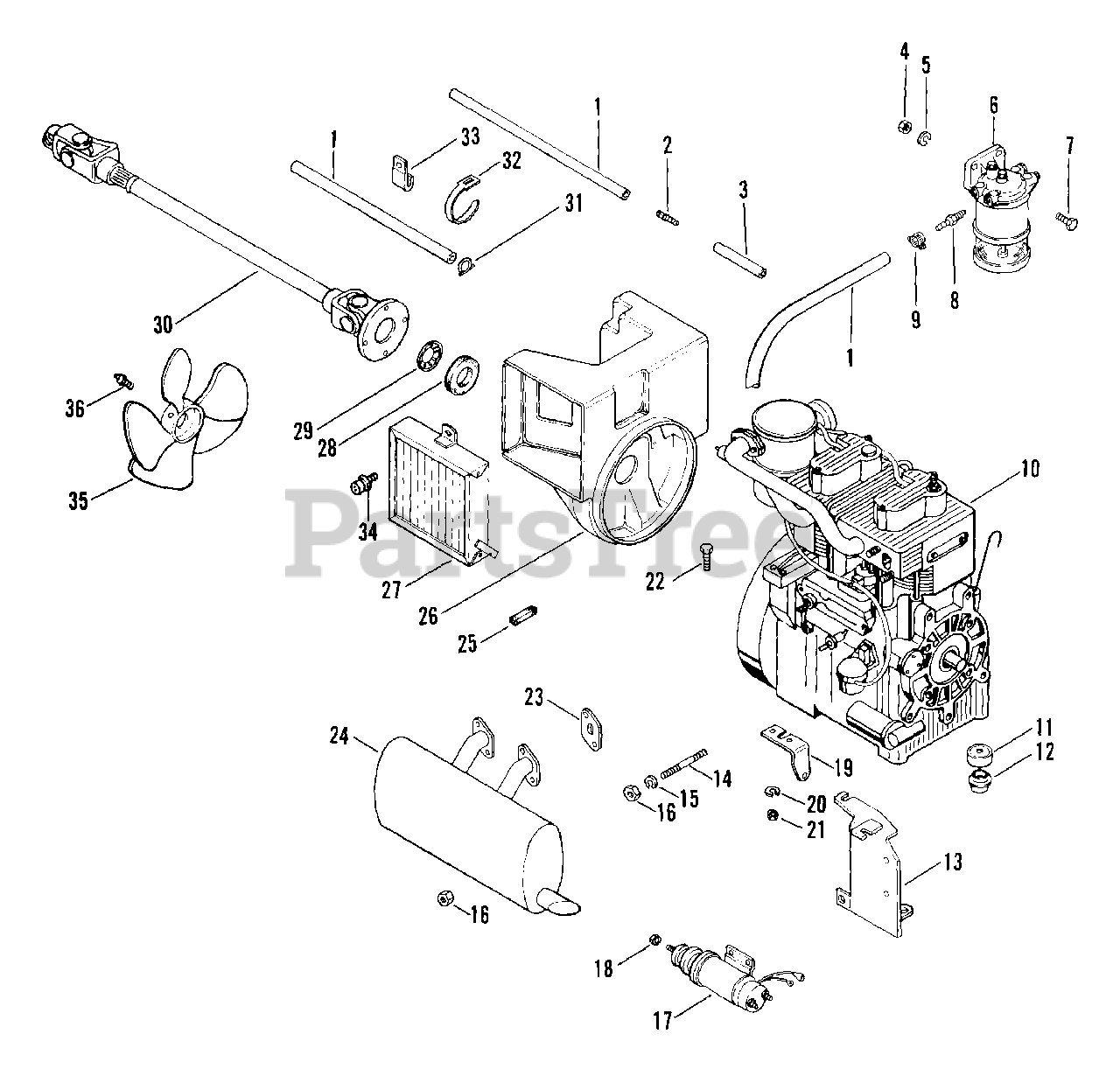

931030 - Ariens Grand Sierra Garden Tractor, 18hp Ruggerini Diesel, Hydro (SN: 000101 & Above) Engine And Drive Shaft - Diesel Parts Diagram

Grand Sierra Garden Tractor, 18hp Ruggerini Diesel, Hydro

Engine And Drive Shaft - Diesel Parts Diagram

  • Title

1

Ariens 03072500

FUEL LINE 1/4 X 67"

$37.99

$

Usually ships in 4-12 days

0

1

Filter to Engine=30"

$

$

Not available

1

Return Line=67"

$

$

Not available

1

Tank to Filter=60"

$

$

Not available

2

Ariens 03059400

REDUCER

$

$

Not available

3

Ariens 03072400

FUEL LINE

$

$

Not available

4

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, only 1 left!

0

5

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

6

Ariens 03049400

FUEL FILTER

$

$

Not available

6

Ariens 03063200

FILTER ELEMENT

$

$

Not available

7

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 03049200

HOSE END FITTING

$

$

Not available

9

Ariens 03049100

HOSE CLIP

$

$

Not available

10

Ariens 08200000

Engine

Note: Order Engine and Parts from Engine Manufacturers Dealer

$

$

Not available

10

Ariens 08200100

ENGINE ASSEMBLY

Note: Order Engine and Parts from Engine Manufacturers Dealer

$

$

Not available

10

Ariens 08219000

ENGINE,DIESEL

$

$

Not available

10

Ariens 08219000

ENGINE,DIESEL

$

$

Not available

11

Ariens 03059800

TOP ISOLATION MOUNT

$

$

Not available

12

Ariens 03059900

BOTTOM ISOLATION MOUNT

$

$

Not available

13

Ariens 03049900

SOLENOID BRKT WELD'T

$

$

Not available

14

Ariens 07008800

STUD, M8-1.25X3.62" YWZC

$

$

Not available

15

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

16

Ariens 06515200

NUT M (ND)

$

$

Not available

17

Ariens 03059600

SOLENOID

$

$

Not available

18

Ariens 06515200

NUT M (ND)

$

$

Not available

19

Ariens 03050200

THROTTLE CABLE ANCHOR

$

$

Not available

20

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

22

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 12

0

23

Ariens 03051100

MUFFLER GASKET

$

$

Not available

24

Ariens 03051200

MUFFLER

$

$

Not available

25

Ariens 03049600

1 INCH OF 009103

$

$

Not available

26

Ariens 03059000

AIR DUCT

$

$

Not available

27

Ariens 03079000

AIR FILTER

$

$

Not available

28

Ariens 03062800

SEALING WASHER

$

$

Not available

29

Ariens 03063400

PUSH NUT, 1.00

$

$

Not available

30

Ariens 03062700

DRIVE SHAFT

$

$

Not available

31

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 20+

0

32

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

$

$

Not available

33

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

34

Ariens 03060100

LATCH

$

$

Not available

35

Ariens 03062900

FAN

$

$

Not available

36

Ariens 03063000

ZERK FITTING

$

$

Not available
