931032 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive (SN: 000101 & Above) POWER STEERING UNIT Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

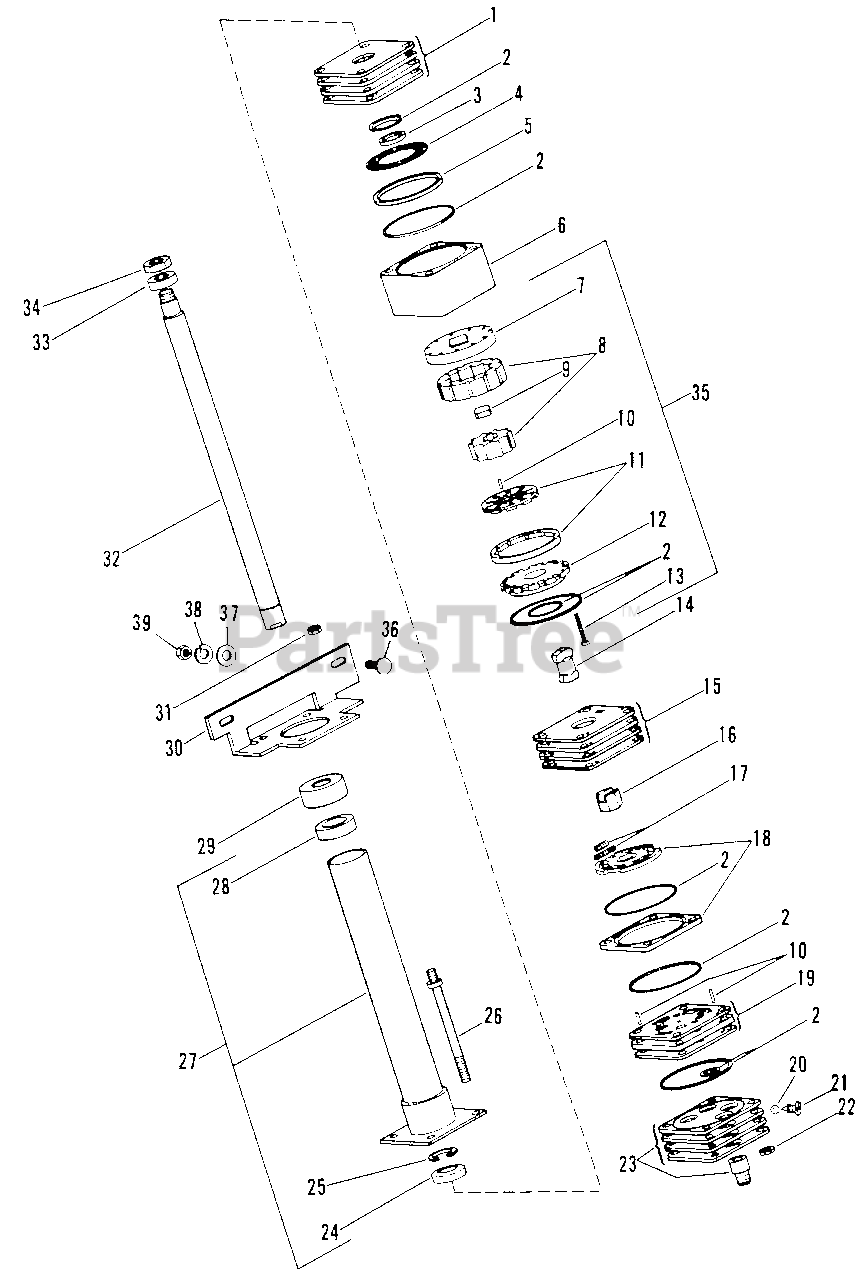

POWER STEERING UNIT Parts Diagram

  • Title

1

Gravely 044836

PLT,UPPER COVER
(Superseded to 20811900)

$

$

Not available

2

Gravely 044837

REPAIR KIT, ROSS POWER STEER
(Superseded to 58900600)

$

$

Not available

3

Gravely 044838

SPCR,SEAL
(Superseded to 20812100)

$

$

Not available

4

Gravely 044839

THRUST BEARING
(Superseded to 03061300)

$

$

Not available

5

Gravely 044840

SPACER-ROSS SERVICE
(Superseded to 03061200)

$

$

Not available

6

Gravely 044841

RING, METERING

$

$

Not available

7

Gravely 044842

PLT,DRIVE
(Superseded to 20812500)

$

$

Not available

8

Gravely 044843

ROTOR
(Superseded to 20812600)

$

$

Not available

9

Gravely 044844

SPCR
(Superseded to 20812700)

$

$

Not available

10

Gravely 044845

NEEDLE ROLLER SERVICE ASS'Y
(Superseded to 53117900)

$

$

Not available

11

Gravely 044846

COMMUTATOR & RING ASS'Y

$

$

Not available

12

Gravely 044847

CVR,COMMUTATOR
(Superseded to 20813000)

$

$

Not available

13

Gravely 044848

SCR,SPECIAL
(Superseded to 20813100)

$

$

Not available

14

Gravely 044849

LINK,DRIVE
(Superseded to 20813200)

$

$

Not available

15

Gravely 044850

ISOLATION,MANIFOLD
(Superseded to 20813300)

$

$

Not available

16

Gravely 044851

DRV,HEX
(Superseded to 20813400)

$

$

Not available

17

Gravely 044852

ASM,SPRING
(Superseded to 20813500)

$

$

Not available

18

Gravely 044853

ASM,VALVE & RING
(Superseded to 20813600)

$

$

Not available

19

Gravely 044854

PORT,MANIFOLD
(Superseded to 20813700)

$

$

Not available

20

Gravely 044855

BALL - STEEL
(Superseded to 03062500)

$

$

Not available

21

Gravely 044856

PLUG & O-RING ASS'Y
(Superseded to 53117800)

$

$

Not available

22

Gravely 044857

NUT-CTRLK .31-24 YWZC
(Superseded to 06537000)

$1.99

$

In Stock, Qty 5

0

23

Gravely 044858

PORT COVER
(Superseded to 03083400)

$

$

Not available

24

Gravely 044859

WASHER
(Superseded to 03060800)

$

$

Not available

25

Gravely 044860

RG,RETAINING
(Superseded to 20814200)

$

$

Not available

26

Gravely 044861

STUD-SPECIAL SV ROSS
(Superseded to 07008700)

$

$

Not available

27

Gravely 044862

ASM,COVER & TUBE
(Superseded to 20814400)

$

$

Not available

28

Gravely 044863

BRG
(Superseded to 20814500)

$

$

Not available

29

Gravely 044864

CAP
(Superseded to 20814600)

$

$

Not available

30

Gravely 044865

BRACKET
(Superseded to 03058900)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 035834

NUT-LK TOP .312-24 PL GR C
(Superseded to 06514500)

$

$

Not available

32

Gravely 044866

INPUT SHAFT SERVICE ASS'Y
(Superseded to 53118000)

$

$

Not available

33

Gravely 039662

DUST COVER
(Superseded to 07507800)

$

$

Not available

34

Gravely 039643

NUT-LK-NYL .625-18 YWZC
(Superseded to 06530300)

$4.99

$

In Stock, Qty 8

0

35

Gravely 044867

ASM,METERING
(Superseded to 20814800)

$

$

Not available

36

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 120379

WSHR-LK .313 SP
(Superseded to 06304800)

$

$

Not available

39

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

40

Gravely 044868

CABLE TIE LG 7-3/4
(Superseded to 06913200)

$

$

Not available
