931032 (7173-H) - Gravely 18-H Lawn Tractor, 18hp Kohler, Hydro Drive (SN: 000101 & Above) POWER STEERING UNIT Parts Diagram

18-H Lawn Tractor, 18hp Kohler, Hydro Drive

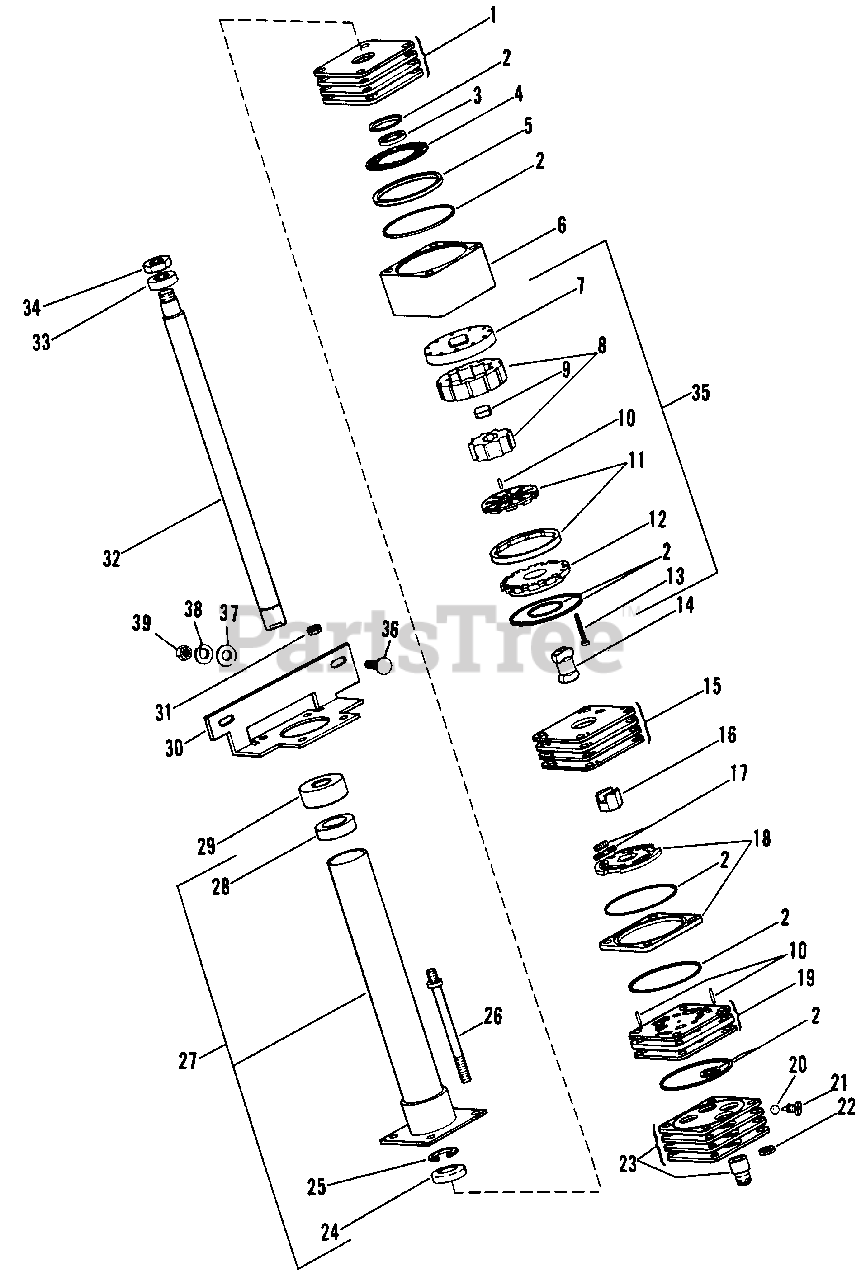

POWER STEERING UNIT Parts Diagram

  • Title

1

Gravely 044836

Plate, Upper Cover
(Superseded to 20811900)

$

$

Not available

2

Gravely 044837

Assembly, Seal Service
(Superseded to 58900600)

$

$

Not available

3

Gravely 044838

Spacer, Seal
(Superseded to 20812100)

$

$

Not available

4

Gravely 044839

Bearing, Thrust
(Superseded to 03061300)

$

$

Not available

5

Gravely 044840

Spacer
(Superseded to 03061200)

$

$

Not available

6

Gravely 044841

Ring, Metering

$

$

Not available

7

Gravely 044842

Plate, Drive
(Superseded to 20812500)

$

$

Not available

8

Gravely 044843

Rotor
(Superseded to 20812600)

$

$

Not available

9

Gravely 044844

Spacer
(Superseded to 20812700)

$

$

Not available

10

Gravely 044845

Assembly, Needle Roller Service
(Superseded to 53117900)

$

$

Not available

11

Gravely 044846

Assembly, Commutator and Ring

$

$

Not available

12

Gravely 044847

Cover, Commutator
(Superseded to 20813000)

$

$

Not available

13

Gravely 044848

Screw, Special
(Superseded to 20813100)

$

$

Not available

14

Gravely 044849

Link, Drive
(Superseded to 20813200)

$

$

Not available

15

Gravely 044850

Manifold, Isolation
(Superseded to 20813300)

$

$

Not available

16

Gravely 044851

Drive, Hex
(Superseded to 20813400)

$

$

Not available

17

Gravely 044852

Assembly, Spring Service
(Superseded to 20813500)

$

$

Not available

18

Gravely 044853

Assembly, Valve and Ring
(Superseded to 20813600)

$

$

Not available

19

Gravely 044854

Manifold, Port
(Superseded to 20813700)

$

$

Not available

20

Gravely 044855

Ball, Steel
(Superseded to 03062500)

$

$

Not available

21

Gravely 044856

Assembly, Plug and Ring
(Superseded to 53117800)

$

$

Not available

22

Gravely 044857

Nut, Lock 5/16-24
(Superseded to 06537000)

$1.49

$

In Stock, only 3 left!

0

23

Gravely 044858

Assembly, Port Cover and Check Valve
(Superseded to 03083400)

$

$

Not available

24

Gravely 044859

Washer
(Superseded to 03060800)

$

$

Not available

25

Gravely 044860

Ring, Retaining
(Superseded to 20814200)

$

$

Not available

26

Gravely 044861

Stud, Special
(Superseded to 07008700)

$

$

Not available

27

Gravely 044862

Assembly, Upper Cover and Jacket Tube
(Superseded to 20814400)

$

$

Not available

28

Gravely 044863

Bearing, Column
(Superseded to 20814500)

$

$

Not available

29

Gravely 044864

Cap
(Superseded to 20814600)

$

$

Not available

30

Gravely 044865

Bracket
(Superseded to 03058900)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 035834

Lock Nut, 5/16-24 Gr. C
(Superseded to 06514500)

$

$

Not available

32

Gravely 044866

Shaft, Input
(Superseded to 53118000)

$

$

Not available

33

Gravely 039662

Cover, Dust
(Superseded to 07507800)

$

$

Not available

34

Gravely 039643

Nut, Lock 5/8-18 Jam
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

35

Gravely 044867

Assembly, Metering
(Superseded to 20814800)

$

$

Not available

36

Gravely 126358

Bolt, Carriage 5/16-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

37

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

39

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

40

Gravely 044868

Tie Cable
(Superseded to 06913200)

$

$

Not available
