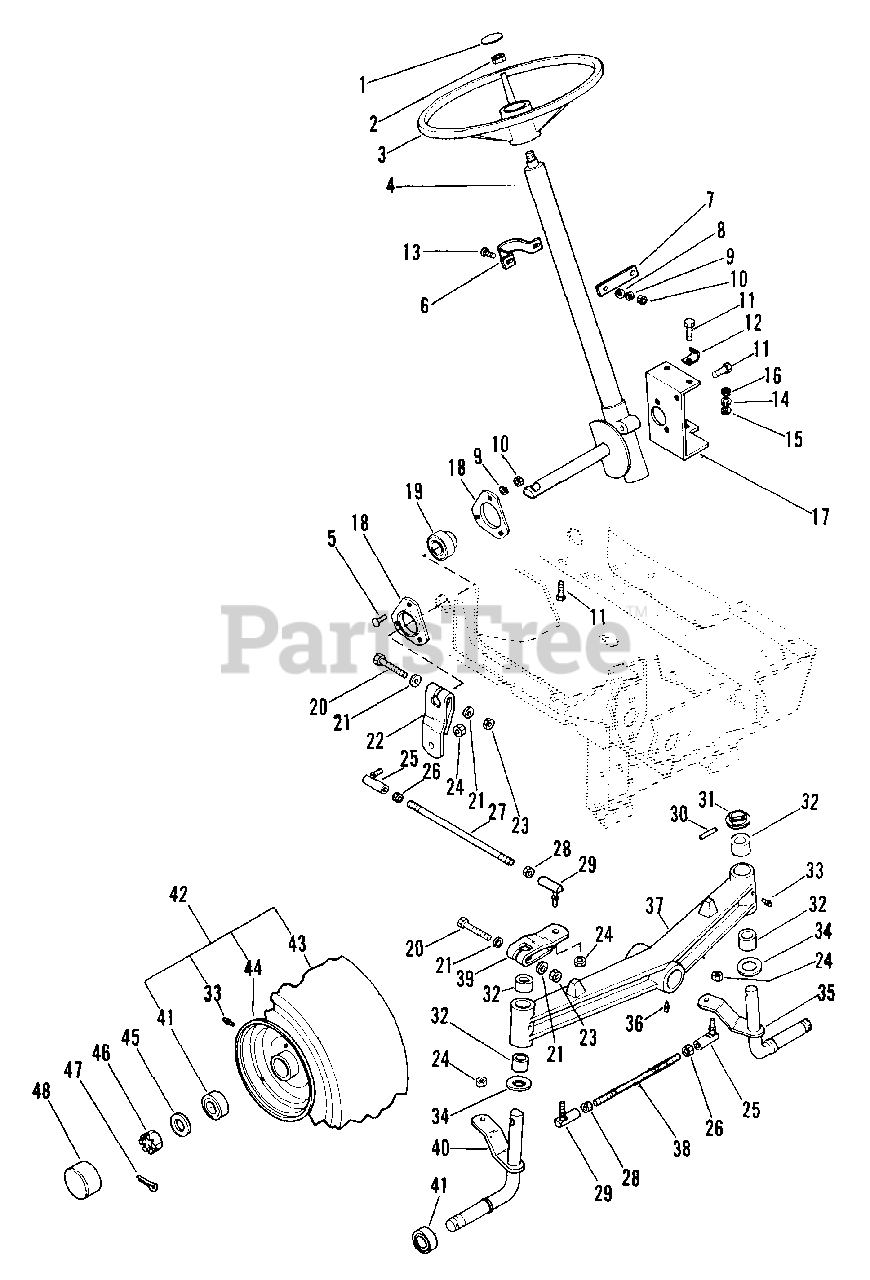

931033 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 000101 - 004000) Steering Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

Steering Parts Diagram

  • Title

1

Ariens 03054600

CAP-STEERING WHEEL

$

$

Not available

2

Ariens 06511700

NUT-LK-JAM .625-18 YWZC
(Superseded to 06530300)

$3.99

$

In Stock, Qty 11

0

3

Ariens 03054500

STEERING WHEEL
(Superseded to 03048900)

$197.99

$

In Stock, only 1 left!

0

4

Ariens 03080100

STEERING GEAR ASS'Y

Note: (19,33 S/N <001000)

$

$

Not available

5

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 13

0

6

Ariens 03103800

STEERING COLUMN CLAMP

$

$

Not available

7

Ariens 03104900

PAD

$

$

Not available

8

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

9

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

10

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

11

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

13

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

14

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 19

0

15

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, only 4 left!

0

16

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 03019700

MOUNTING BRACKET

$

$

Not available

18

Ariens 03102000

BEARING FLANGE

Note: (19,33)

$21.99

$

Usually ships in 4-12 days

0

19

Ariens 05410100

BRG-BALL 1.0X2.047X1.20

$

$

Not available

20

Ariens 05914400

BLT-HEX .50-13X2.50 PL GR5
(Superseded to 05966600)

$3.99

$

In Stock, only 3 left!

0

21

Ariens 06413800

WSHR-FL-STL .531X.938X.104 PL

$4.49

$

In Stock, only 1 left!

0

22

Ariens 03013000

STEERING ARM

$

$

Not available

23

Ariens 06512700

NUT-LK-CROWN .50-13 GR C PL
(Superseded to 06528200)

$3.99

$

In Stock, only 2 left!

0

24

Ariens 06512100

NUT-LK .50-20 PL
(Superseded to 06544000)

$5.99

$

In Stock, only 1 left!

0

25

Ariens 03113000

BALL JOINT L.H.

$59.99

$

Usually ships in 4-12 days

0

26

Ariens 06510500

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

$8.99

$

In Stock, only 2 left!

0

27

Ariens 03192900

DRAG LINK

Note: (19,33)

$

$

Not available

28

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 03112900

BALL JOINT R.H.

$32.99

$

In Stock, only 1 left!

0

30

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, only 4 left!

0

31

Ariens 03008800

SPINDLE CAP

$

$

Not available

32

Ariens 05509100

BSHG-SLV 1.000X1.125X.875

$13.99

$

In Stock, only 2 left!

0

33

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

34

Ariens 07506700

PLASTIC WASHER

$

$

Not available

35

Ariens 03004600

L.H. SPINDLE

Note: (19,33, S/N 001000)

$

$

Not available

35

Ariens 03083100

SPINDLE LH

Note: (29,30,33, S/N 001001>34)

$265.99

$

In Stock, only 1 left!

0

36

Ariens 03112100

ZERK FITTING
(Superseded to 07012800)

Note: (19,29)

$4.99

$

In Stock, Qty 5

0

37

Ariens 53101100

FRT AXLE

Note: (19,29,30,33, S/N 001000)

$

$

Not available

37

Ariens 53123200

FRONT AXLE ASSY

Note: (33,34)

$

$

Not available

38

Ariens 03116900

TIE ROD

$75.99

$

Usually ships in 4-12 days

0

39

Ariens 03013100

FRONT STEERING ARM

Note: (19,33)

$

$

Not available

40

Ariens 03004700

R.H. SPINDLE

Note: (19,33, S/N 001000)

$

$

Not available

40

Ariens 03083000

SPINDLE RH

Note: (29,30,33,34)

$

$

Not available

41

Ariens 05412100

BRG-BALL 1.0X2.0X.55

$

$

Not available

42

Ariens 07115300

T/WHL ASSY

$

$

Not available

42

Ariens 07120900

TIRE

$

$

Not available

43

Ariens 07102100

TIRE 16X6.50-8 2 PLY

$79.99

$

Usually ships in 4-12 days

0

43

Ariens 07120900

TIRE

$

$

Not available

44

Ariens 07111000

WHL

$

$

Not available

45

Ariens 06418500

WSHR-FL-STL 1.015X1.500X.125
(Superseded to 06400025)

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 06513100

NUT-SL 1.0-14

$5.99

$

Usually ships in 4-12 days

0

47

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, Qty 5

0

48

Ariens 07508900

FRONT HUB CAP

$18.99

$

Usually ships in 4-12 days

0
