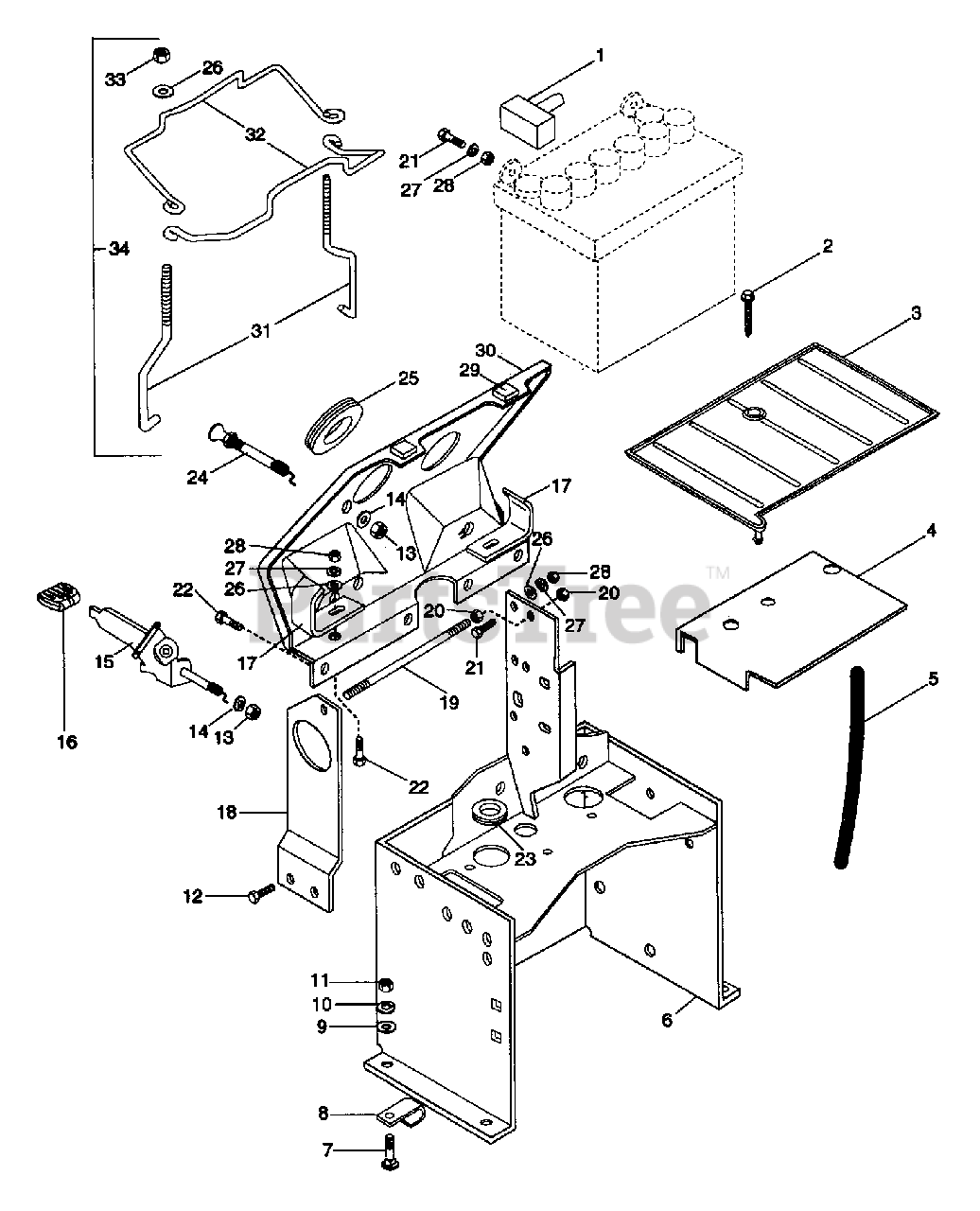

931033 - Ariens Grand Sierra Garden Tractor, 18hp Kohler, Hydro (SN: 004001 - 004345) Dash And Support Parts Diagram

Grand Sierra Garden Tractor, 18hp Kohler, Hydro

Dash And Support Parts Diagram

  • Title

1

Ariens 07505700

INSULATOR

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 07403900

SCR-TAP 12-14X1.50 CROVH PL BT
(Superseded to 07411800)

$

$

Not available

3

Ariens 03199900

BATTERY TRAY

$

$

Not available

4

Ariens 03012400

BATTERY STAND

$

$

Not available

5

Ariens 03442000

DRAIN HOSE

$

$

Not available

6

Ariens 53122900

DASH SUPPORT PS

$

$

Not available

7

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.99

$

In Stock, Qty 20+

0

8

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

9

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

11

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

12

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

14

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$2.49

$

In Stock, only 1 left!

0

15

Ariens 06912200

THROTTLE CONTROL

$

$

Not available

16

Ariens 07501900

KNOB

$

$

Not available

17

Ariens 03107000

CLIP

$

$

Not available

18

Ariens 03196100

HOUR METER MOUNTING PLATE
(Superseded to 03089700)

$

$

Not available

19

Ariens 03196500

BRACE ROD

$

$

Not available

20

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

22

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

23

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06912300

CHOKE CONTROL

$

$

Not available

25

Ariens 07506100

GROMMET

$

$

Not available

26

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

27

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

28

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

29

Ariens 07505800

STOP
(Superseded to 07525100)

$2.49

$

In Stock, only 2 left!

0

30

Ariens 03075600

DASH
(Superseded to 03086400)

$

$

Not available

31

Ariens 03055800

TIE DOWN

$

$

Not available

32

Ariens 03057800

HOLD DOWN

$

$

Not available

33

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$5.49

$

In Stock, only 2 left!

0

34

Ariens 53117000

BATTERY HOLD DOWN ASSEMBLY

$

$

Not available
