931034 - Ariens Grand Sierra Garden Tractor, 20hp Kohler, Hydro (SN: 000101 - 004000) Electrical I Parts Diagram

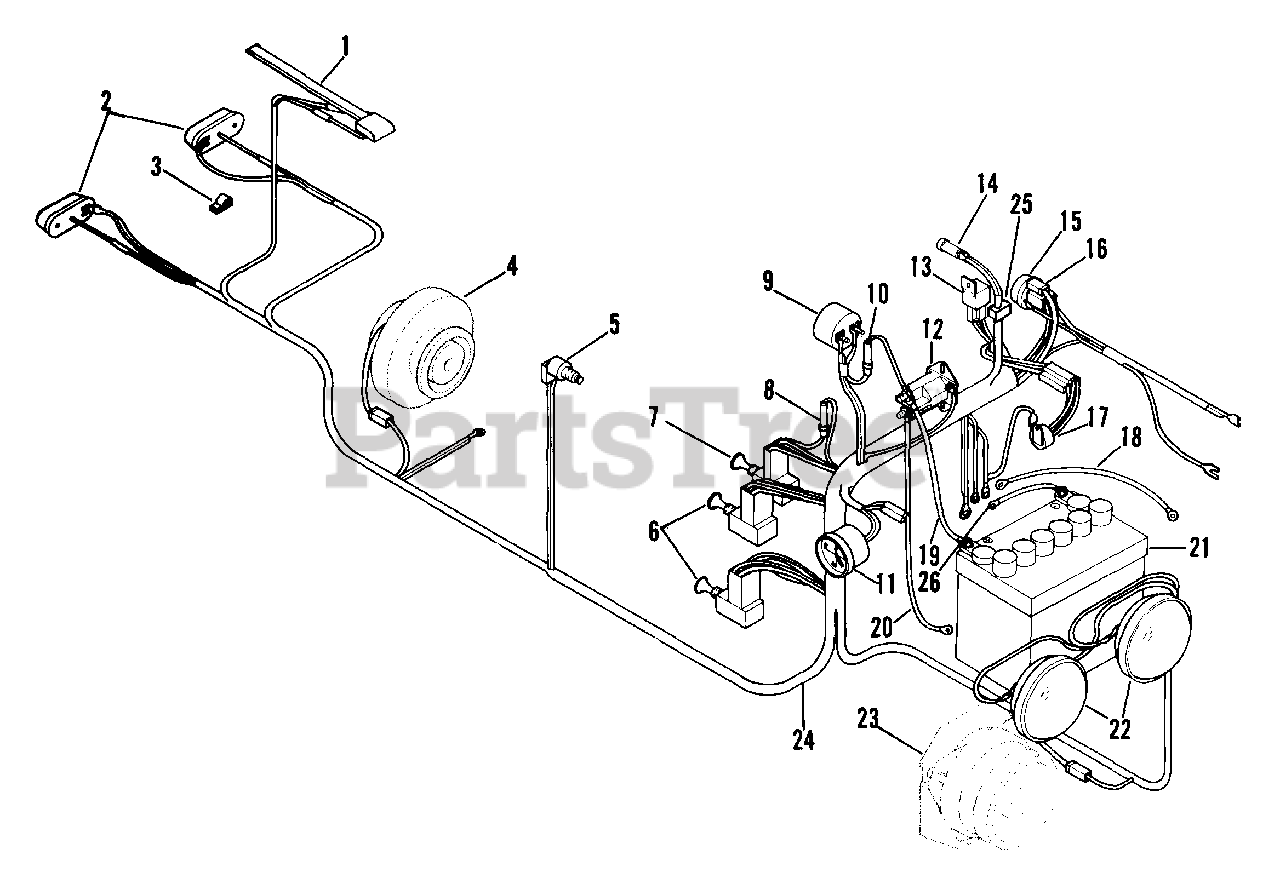

Grand Sierra Garden Tractor, 20hp Kohler, Hydro

Electrical I Parts Diagram

  • Title

1

Ariens 03171600

SWITCH SEAT

$

$

Not available

2

Ariens 03063500

TAIL LIGHT ASSEMBLY W/BULLET
(Superseded to 53128400)

$124.99

$

Usually ships in 4-12 days

0

2

Ariens 03137500

TAIL LIGHT LENS

$

$

Not available

2

Ariens 03005000

MALE DISCONNECT ADAPTER

$

$

Not available

2

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.99

$

Usually ships in 4-12 days

0

2

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

3

Ariens 07510700

WIRE CLIP

$

$

Not available

4

Ariens 03199000

ELECTRIC CLUTCH

$

$

Not available

5

Ariens 03110700

SAFETY SWITCH

$40.99

$

Usually ships in 4-12 days

0

5

Ariens 03189500

CONNECTOR

$

$

Not available

5

Ariens 06507100

NUT-HEX .625-32 PL

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 07506300

BOOT

$

$

Not available

6

Ariens 03115000

CLUTCH SWITCH
(Superseded to 00355900)

$85.99

$

Usually ships in 4-12 days

0

6

Ariens 02359500

CONNECTOR

$

$

Not available

6

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 03115100

LIGHT SWITCH
(Superseded to 51513800)

$

$

Not available

7

Ariens 03110500

CONNECTOR

$

$

Not available

7

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

8

7 Amp Fuse

$

$

Not available

9

Ariens 03111700

AMMETER

$

$

Not available

9

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$2.49

$

In Stock, only 1 left!

0

9

Ariens 06502600

NUT 10-32 PL

$

$

Not available

10

30 Amp Fuse

$

$

Not available

11

Ariens 03082600

HOUR METER

$

$

Not available

12

Ariens 03057700

SOLENOID

Note: (19,299,33,34)

$

$

Not available

12

Ariens 03059600

SOLENOID

Note: (30)

$

$

Not available

12

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$2.49

$

In Stock, only 1 left!

0

12

Ariens 06502600

NUT 10-32 PL

$

$

Not available

12

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 1 left!

0

12

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

$1.49

$

In Stock, Qty 10

0

12

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$1.49

$

In Stock, Qty 12

0

12

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.99

$

In Stock, Qty 8

0

12

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

12

Ariens 06301700

WSHR-LK-EXT. 250 ID

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 03042800

RELAY
(Superseded to 00432101)

Note: (2 on 30,33,34)

$25.99

$

In Stock, Qty 20+

0

14

Ariens 03198300

PTO INDICATOR LIGHT
(Superseded to 53108800)

Note: (2 on 30)

$

$

Not available

14

Ariens 03004200

LENS

$

$

Not available

14

Ariens 03004300

LAMP

$

$

Not available

14

Ariens 03004400

LAMP SOCKET

$

$

Not available

14

Ariens 03027900

SPEED NUT

$3.49

$

Usually ships in 4-12 days

0

15

Ariens 03064300

SWITCH ASSEMBLY
(Superseded to 53123700)

$60.99

$

In Stock, only 2 left!

0

15

Ariens 02347800

CONNECTOR HOUSING
(Superseded to 20645101)

$8.49

$

In Stock, Qty 6

0

15

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06510600

NUT .562-24

$

$

Not available

16

Ariens 03042700

DIODE ASSEMBLY

$40.99

$

Usually ships in 4-12 days

0

16

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03042900

TIME DELAY MODULE
(Superseded to 53125500)

$

$

Not available

17

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.99

$

Usually ships in 4-12 days

0

17

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

18

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$23.99

$

In Stock, only 1 left!

0

19

Ariens 03013600

GROUND CABLE .25X6.50X.31

Note: (19,29,33,34)

$

$

Not available

19

Ariens 03050400

BATTERY CABLE

Note: (30)

$

$

Not available

19

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

20

Ariens 03076000

STARTER CABLE .25X.35.25X.31
(Superseded to 03076001)

Note: (19,29,33,34)

$

$

Not available

20

Ariens 03050500

GROUND CABLE

Note: (30)

$

$

Not available

21

Ariens 03050900

BATTERY

Note: (30)

$

$

Not available

21

Ariens 03055700

BATTERY
(Superseded to 53123300)

Note: (19,29,33,34)

$

$

Not available

22

Ariens 03114900

HEAD LIGHT

$21.99

$

In Stock, only 2 left!

0

22

Ariens 03115900

HEAD LIGHT RETAINER RING

$

$

Not available

22

Ariens 06104000

SCR-MCH 10-24X.50 SLTR PL

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 03060600

DIESEL CLUTCH ASSEMBLY

Note: (30)

$

$

Not available

23

Ariens 03064500

CLUTCH ASSEMBLY 1 1/8 BORE
(Superseded to 53114100)

Note: (19,33)

$

$

Not available

23

Ariens 03064800

CLUTCH ASSEMBLY 1-1/4 BORE

Note: (29,34)

$

$

Not available

24

Ariens 03042600

WIRING HARNESS

Note: (19,29)

$

$

Not available

24

Ariens 03059300

WIRING HARNESS - DIESEL

Note: (30)

$

$

Not available

24

Ariens 03080000

WIRING HARNESS
(Superseded to 03086900)

Note: (33,34)

$

$

Not available

25

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

Note: (33,34)

$29.99

$

In Stock, Qty 6

0

26

Ariens 00145900

STARTER CABLE 6.75"

$20.99

$

In Stock, only 1 left!

0

27

Ariens 03110600

CONNECTOR

$

$

Not available
