931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) ENGINE AND DRIVE SHAFT Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

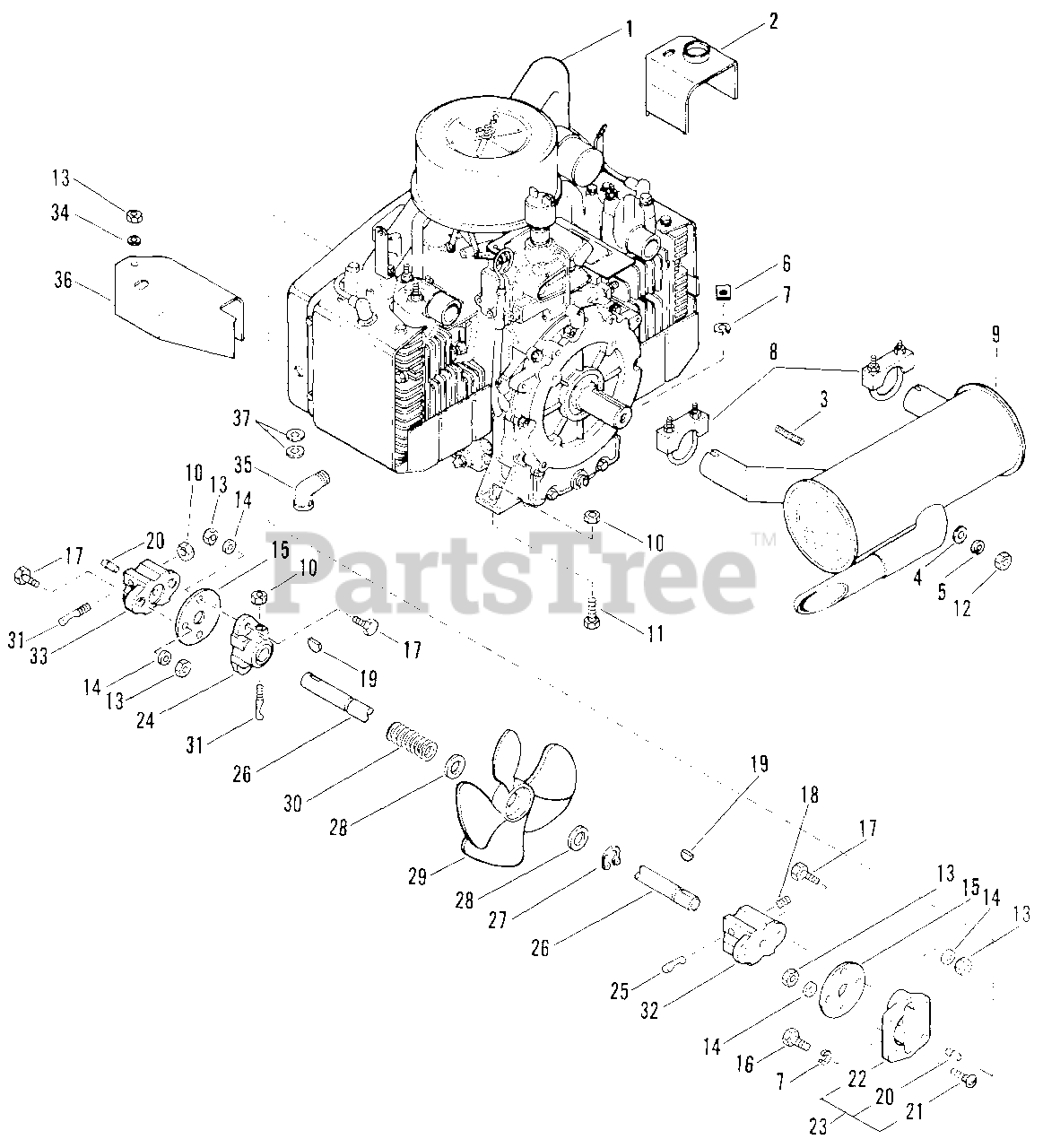

ENGINE AND DRIVE SHAFT Parts Diagram

  • Title

1

Gravely 039097

Engine, 17 HP Kohler Twin K422

$

$

Not available

2

Gravely 039098

Left Exhaust Shield
(Superseded to 03052800)

$

$

Not available

3

Gravely 039118

Engine Stud
(Superseded to 03020400)

$

$

Not available

4

Gravely 446179

Washer, Flat .250 x .500 x .049
(Superseded to 21071000)

$

$

Not available

5

Gravely 120380

Washer, Lock 1/4 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

6

Gravely 039099

Nut, Special 3/8-16
(Superseded to 07007800)

$

$

Not available

7

Gravely 120382

Washer, Lock 3/8 Reg.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

8

Gravely 031720

Exhaust Clamp, 1.50
(Superseded to 06923100)

$

$

Not available

9

Gravely 039101

Muffler, Twin Exhaust
(Superseded to 03089000)

$

$

Not available

10

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 180124

Bolt, Hex 3/8-16 x 1.25
(Superseded to 05901724)

$0.99

$

In Stock, only 2 left!

0

12

Gravely 120375

Nut, Hex 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

13

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 446548

Washer, Flat .375 x .734 x .065
(Superseded to 06431100)

$

$

Not available

15

Gravely 039102

Spacer Coupling
(Superseded to 03014000)

$51.99

$

In Stock, only 1 left!

0

16

Gravely 180121

Bolt, Hex 3/8-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

17

Gravely 180078

Bolt, Hex 5/16-18 x .875
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 418516

Set Screw, 3/8-16 x 1/2 SKHCUP
(Superseded to 21068000)

$

$

Not available

19

Gravely 106751

Key, Woodruff .187 x .75 #9
(Superseded to 06600300)

$2.99

$

In Stock, Qty 7

0

20

Gravely 039104

Pin, Groove 5/16 x 3/4 Type D
(Superseded to 05806600)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 039105

Bolt, Rib Neck 5/16-18 x 7/8
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

22

Gravely 039106

Drive Hub, Flywheel Twin
(Superseded to 03015400)

$

$

Not available

23

Gravely 039117

Engine Coupling Assembly, Twin
(Superseded to 03026300)

$

$

Not available

24

Gravely 039107

Drive Shaft Hub
(Superseded to 03014900)

$

$

Not available

25

Gravely 039108

Lock Stud
(Superseded to 03014100)

$46.99

$

Usually ships in 4-12 days

0

26

Gravely 039109

Drive Shaft
(Superseded to 03052700)

$133.99

$

Usually ships in 4-12 days

0

27

Gravely 011135

Ring, Retaining .750 Shaft
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

28

Gravely 036407

Washer, .752/.762 x 1.250 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

29

Gravely 039110

Fan
(Superseded to 03199500)

$35.99

$

In Stock, only 1 left!

0

30

Gravely 039111

Spring, Comp. 2-1/2 Free Length
(Superseded to 08321400)

$

$

Not available

31

Gravely 039112

Lock Stud
(Superseded to 03013900)

$18.99

$

Usually ships in 4-12 days

0

32

Gravely 039113

Drive Hub, Twin Shaft
(Superseded to 03015500)

$

$

Not available

33

Gravely 039114

Drive Hub, Hydro
(Superseded to 03089100)

$168.99

$

Usually ships in 4-12 days

0

34

Gravely 120386

Washer, Flat .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

35

Gravely 039115

Street Elbow
(Superseded to 03018500)

$

$

Not available

36

Gravely 039116

Right Exhaust Shield
(Superseded to 03052900)

$

$

Not available

37

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

NS

Gravely 039119

Air Cleaner Decal
(Superseded to 07881400)

$

$

Not available
