931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) POWER TAKE OFF (PTO) - REAR Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

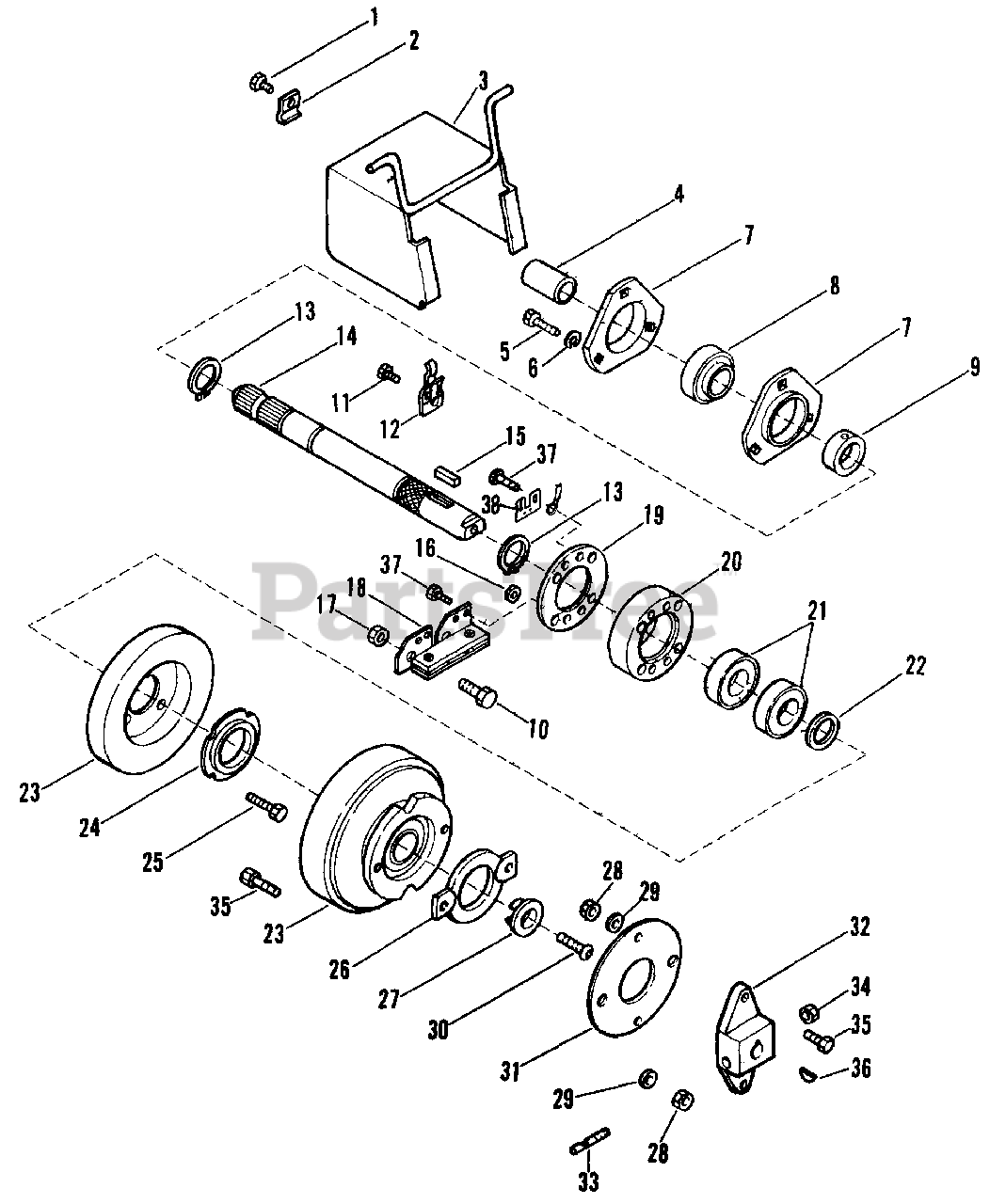

POWER TAKE OFF (PTO) - REAR Parts Diagram

  • Title

1

Gravely 039430

Taptite, 1/4-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 039431

Clip
(Superseded to 03016400)

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 039432

PTO Shield
(Superseded to 03016300)

$

$

Not available

4

Gravely 039163

Shaft Cover
(Superseded to 07506000)

$4.99

$

In Stock, only 2 left!

0

5

Gravely 180077

Bolt, Hex 5/16-18 x .75
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 120379

Washer, Lock 5/16 SP
(Superseded to 06304800)

$

$

Not available

7

Gravely 039433

Bearing Flange
(Superseded to 03102000)

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 039166

Ball Bearing, 1" I.D. x 2-3/64 O.D.
(Superseded to 05426200)

$50.99

$

In Stock, Qty 5

0

9

Gravely 039164

Bearing Collar
(Superseded to 05426200)

$50.99

$

In Stock, Qty 5

0

10

Gravely 180083

Bolt, Hex 5/16-18 x 1.50
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

11

Gravely 038836

Screw, Taptite #10-24 x .375
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 039435

Snap Fastener
(Superseded to 03130500)

$

$

Not available

13

Gravely 017980

Ring, Retaining
(Superseded to 05707300)

$3.49

$

In Stock, Qty 17

0

14

Gravely 039436

Shaft
(Superseded to 03036700)

$419.99

$

Usually ships in 4-12 days

0

15

Gravely 009213

Key, Square .25 x 1.00
(Superseded to 00966045)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 039437

Nut, Torque Lock #10-24 Gr A
(Superseded to 06504100)

$

$

Not available

17

Gravely 190139

Nut, Lock 5/16-24
(Superseded to 06526500)

$

$

Not available

18a

Gravely 039438

Torque Bracket
(Superseded to 03036300)

$

$

Not available

18b

Gravely 039439

Link
(Superseded to 03036200)

$

$

Not available

18c

Gravely 039440

Special Washer
(Superseded to 03015600)

$

$

Not available

18d

Gravely 039441

Screw, Cap #10-24 x .75
(Superseded to 05920700)

$

$

Not available

18e

Gravely 039442

Nut, Torque Lock #10-24
(Superseded to 06504100)

$

$

Not available

19

Gravely 039443

Ring
(Superseded to 03036500)

$

$

Not available

20

Gravely 039444

Bearing Mount
(Superseded to 03036400)

$

$

Not available

21

Gravely 036876

Bearing, Ball
(Superseded to 05416000)

$16.99

$

In Stock, only 2 left!

0

22

Gravely 039445

Washer, 1.031/1.046 x 1.375 x .055
(Superseded to 06444900)

$

$

Not available

23

Gravely 039446

Electric Clutch
(Superseded to 03199000)

$

$

Not available

24

Gravely 039447

Bearing Flange
(Superseded to 03036600)

$

$

Not available

25

Gravely 039448

Screw, Mach. No. 10-24 x 1.25 Pan
(Superseded to 06117500)

$

$

Not available

26

Gravely 039449

Pilot Plate
(Superseded to 03015800)

$

$

Not available

27

Gravely 039450

Retainer
(Superseded to 03015700)

$

$

Not available

28

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 446548

Washer, Flat .375 x .734 x .065
(Superseded to 06431100)

$

$

Not available

30

Gravely 039451

Screw, Cap BTHD 3/8-16 x 1.25
(Superseded to 07006300)

$2.99

$

Usually ships in 4-12 days

0

31

Gravely 039452

Spacer Coupling
(Superseded to 03199300)

$

$

Not available

32

Gravely 039453

Coupling
(Superseded to 03198800)

$

$

Not available

33

Gravely 039454

Lock Stud
(Superseded to 03013900)

$19.99

$

Usually ships in 4-12 days

0

34

Gravely 413534

Nut, Lock 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 180078

Bolt, Hex 5/16-18 x .875
(Superseded to 05901801)

$2.99

$

In Stock, Qty 10

0

36

Gravely 106751

Key, Woodruff .187 x .75 #9
(Superseded to 06600300)

$1.49

$

In Stock, Qty 6

0

37

Gravely 039455

Taptite, #10-24 x .75
(Superseded to 07413000)

$3.99

$

In Stock, Qty 6

0

38

Gravely 041173

Clip, Connector Mounting
(Superseded to 53121900)

$

$

Not available

NS

Gravely 039659

Rear PTO Decal, 3200 RPM
(Superseded to 07860000)

$

$

Not available
