931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) REAR AXLE Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

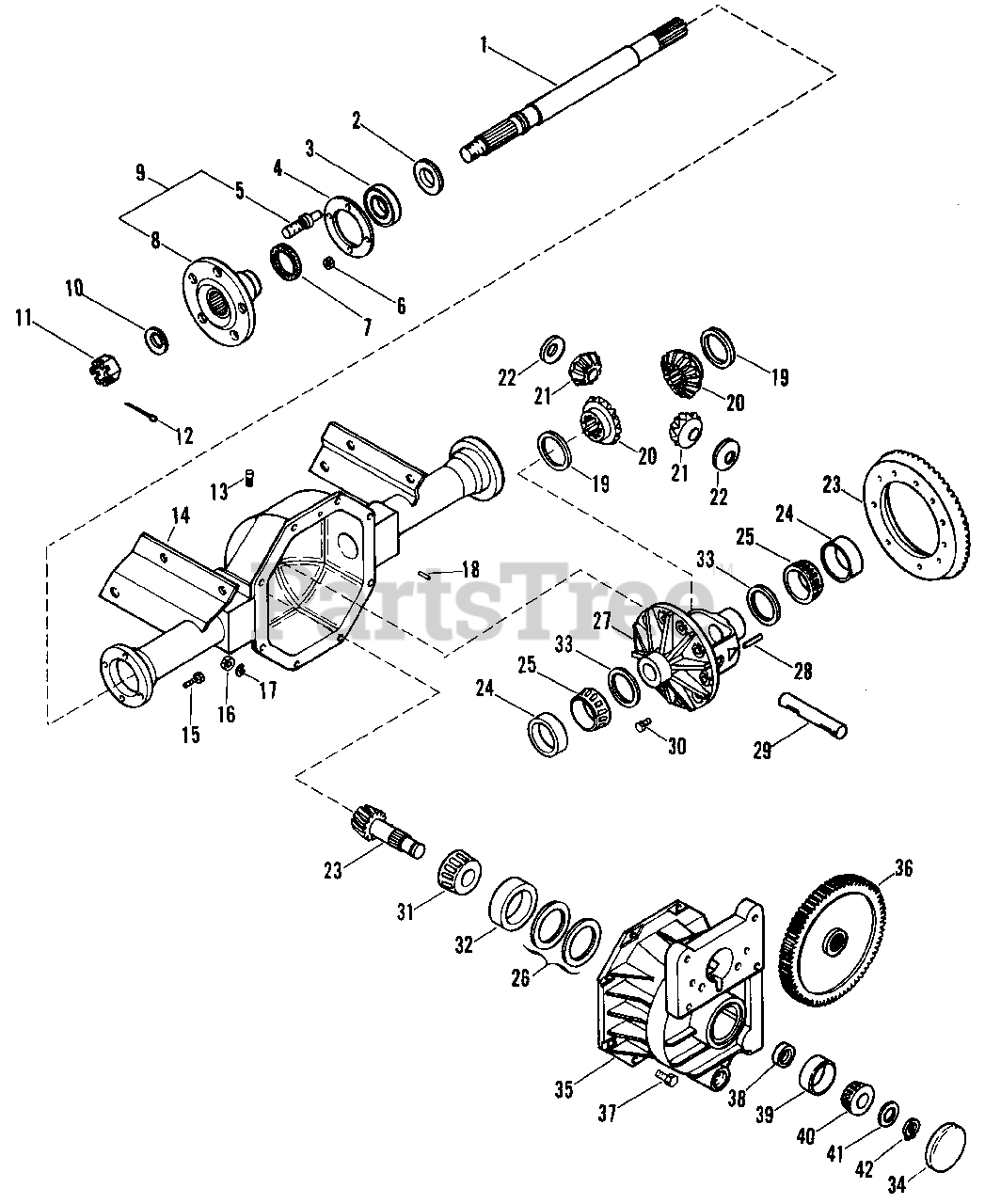

REAR AXLE Parts Diagram

  • Title

1

Gravely 039182

Axle Shaft R.H.
(Superseded to 03045600)

$

$

Not available

1

Gravely 039183

Axle Shaft L.H.
(Superseded to 03045500)

$

$

Not available

2

Gravely 039184

Oil Seal, 1-3/16 I.D.
(Superseded to 05609300)

$36.99

$

Usually ships in 4-12 days

0

3

Gravely 039185

Bearing, 1-3/16 x 2-9/32
(Superseded to 05412900)

$184.99

$

Usually ships in 4-12 days

0

4

Gravely 039186

Gasket, Wheel Bearing
(Superseded to 03164200)

$

$

Not available

5

Gravely 039187

Carrier Lug Bolt
(Superseded to 03006600)

$

$

Not available

6

Gravely 039188

Nut, Flange Whizlock 5/16-24
(Superseded to 06542200)

$2.99

$

In Stock, only 2 left!

0

7

Gravely 039189

Felt Seal
(Superseded to 03164100)

$

$

Not available

8

Gravely 039190

Axle Flange
(Superseded to 53121800)

$

$

Not available

9

Gravely 039191

Axle Flange Assembly
(Superseded to 53121800)

$

$

Not available

10

Gravely 039192

Washer, .890/.905 x 1.500 x .1196
(Superseded to 06401207)

$4.99

$

In Stock, Qty 15

0

11

Gravely 039193

Nut, Slotted Hex 7/8-14
(Superseded to 06538200)

$

$

Not available

12

Gravely 137228

Pin, Cotter 5/32 x 1.50
(Superseded to 06713800)

$3.99

$

In Stock, Qty 5

0

13

Gravely 039703

Vent
(Superseded to 03074300)

$

$

Not available

14

Gravely 039194

Lower Housing
(Superseded to 03043100)

$

$

Not available

15

Gravely 039195

Screw, Cap 5/16-24 x 1.25
(Superseded to 05919300)

$

$

Not available

16

Gravely 120376

Nut, Hex 5/16-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

17

Gravely 138538

Washer, Lock 5/16 Int Tooth
(Superseded to 06310500)

$0.99

$

In Stock, only 1 left!

0

18

Gravely 039196

Dowel Pin
(Superseded to 03163700)

$

$

Not available

19

Gravely 039197

Washer, 1.578 x 2.375 x .031
(Superseded to 06415400)

$

$

Not available

20

Gravely 039198

Side Gear
(Superseded to 03045400)

$

$

Not available

21

Gravely 039199

Bevel Gear
(Superseded to 03165200)

$44.99

$

Usually ships in 4-12 days

0

22

Gravely 039200

Washer, Spherical .703 x 1.593 x .031
(Superseded to 06415500)

$

$

Not available

23

Gravely 039201

Pinion and Gear
(Superseded to 53115800)

$

$

Not available

24

Gravely 039202

Bearing Cup, 2-57/64 O.D.
(Superseded to 05413100)

$

$

Not available

25

Gravely 039203

Bearing Cone, 1-5/8 I.D.
(Superseded to 05413000)

$

$

Not available

26

Gravely 039220

Shim
(Superseded to 03043500)

$

$

Not available

26

Gravely 039221

Shim
(Superseded to 03043600)

$

$

Not available

26

Gravely 039222

Shim
(Superseded to 03043700)

$

$

Not available

26

Gravely 039223

Shim
(Superseded to 03043800)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 039208

Differential Case
(Superseded to 03164900)

$

$

Not available

28

Gravely 039209

Lock Pin
(Superseded to 03165400)

$

$

Not available

29

Gravely 039210

Pinion Shaft
(Superseded to 03165300)

$

$

Not available

30

Gravely 039211

Bolt, Special 3/8-24 x 13/16
(Superseded to 07004300)

$

$

Not available

31

Gravely 039212

Bearing Cone 1-3/16 I.D.
(Superseded to 05415600)

$

$

Not available

32

Gravely 039213

Bearing Cup 2-17/32 O.D.
(Superseded to 05415700)

$9.49

$

Usually ships in 4-12 days

0

33

Gravely 039204

Shim
(Superseded to 03164500)

$

$

Not available

33

Gravely 039205

Shim
(Superseded to 03164600)

$

$

Not available

33

Gravely 039206

Shim
(Superseded to 03164700)

$

$

Not available

33

Gravely 039207

Shim
(Superseded to 03164800)

$

$

Not available

34

Gravely 039214

Cup Plug
(Superseded to 03167300)

$

$

Not available

35

Gravely 041174

Front Housing w/Bearing Cup
(Superseded to 53122100)

$

$

Not available

36

Gravely 039216

Spur Gear
(Superseded to 03165700)

$274.99

$

Usually ships in 4-12 days

0

37

Gravely 180079

Bolt, Hex 5/16-18 x 1.00
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

38

Gravely 039217

Front Pinion Bearing Spacer
(Superseded to 03165800)

$

$

Not available

39

Gravely 039218

Bearing Cup
(Superseded to 05413400)

$17.99

$

Usually ships in 4-12 days

0

40

Gravely 039219

Bearing Cone 27/32 I.D.
(Superseded to 05415800)

$

$

Not available

41

Gravely 039224

Shim
(Superseded to 03043900)

$

$

Not available

41

Gravely 039225

Shim
(Superseded to 03044000)

$

$

Not available

41

Gravely 039227

Shim
(Superseded to 03044200)

$

$

Not available

41

Gravely 039228

Shim
(Superseded to 03044300)

$

$

Not available

41

Gravely 039229

Shim
(Superseded to 53115900)

$

$

Not available

41

Gravely 039230

Shim
(Superseded to 03044500)

$

$

Not available

41

Gravely 039231

Shim
(Superseded to 03044600)

$

$

Not available

41

Gravely 039232

Shim
(Superseded to 20657900)

$

$

Not available

41

Gravely 039233

Shim
(Superseded to 03044800)

$

$

Not available

41

Gravely 039234

Shim
(Superseded to 03044900)

$

$

Not available

41

Gravely 039235

Shim
(Superseded to 03045000)

$

$

Not available

41

Gravely 039236

Shim
(Superseded to 53115900)

$

$

Not available

41

Gravely 039237

Shim
(Superseded to 03045200)

$

$

Not available

41

Gravely 039238

Shim
(Superseded to 03045700)

$

$

Not available

41

Gravely 039239

Shim
(Superseded to 03045800)

$

$

Not available

41

Gravely 039240

Shim
(Superseded to 53115900)

$

$

Not available

41

Gravely 039241

Shim
(Superseded to 03046000)

$

$

Not available

41

Gravely 039242

Shim
(Superseded to 03046100)

$

$

Not available

41

Gravely 039243

Shim
(Superseded to 03046200)

$

$

Not available

41

Gravely 039244

Shim
(Superseded to 03046300)

$

$

Not available

41

Gravely 039245

Shim
(Superseded to 03046400)

$

$

Not available

41

Gravely 039246

Shim
(Superseded to 03046500)

$

$

Not available

41

Gravely 039247

Shim
(Superseded to 03046600)

$

$

Not available

41

Gravely 039248

Shim
(Superseded to 03046700)

$

$

Not available

42

Gravely 013187

Ring, Retaining
(Superseded to 05716400)

$

$

Not available
