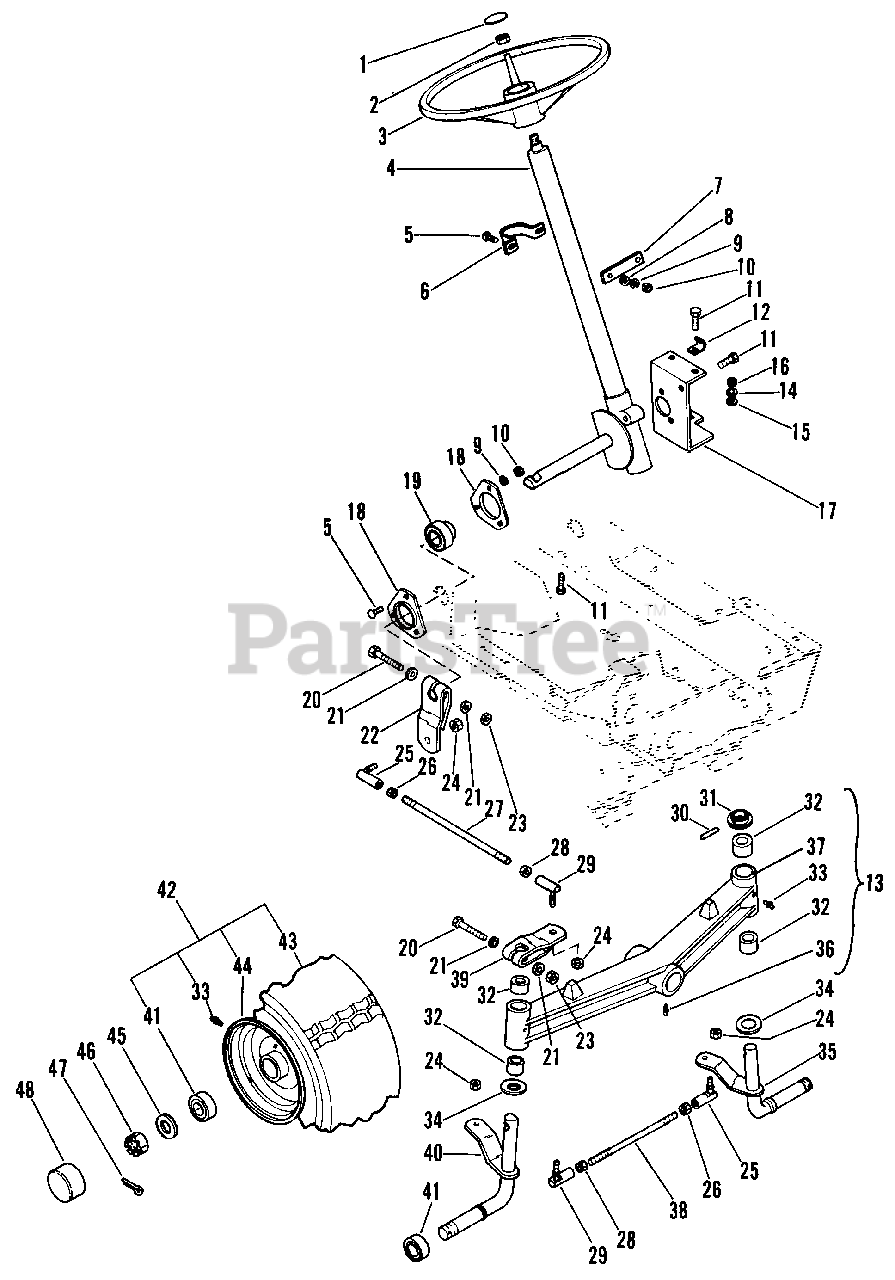

931036 (7173-H) - Gravely Lawn Tractor, 17hp Kohler, Hydro Drive (SN: 000101 & Above) STEERING Parts Diagram

Lawn Tractor, 17hp Kohler, Hydro Drive

STEERING Parts Diagram

  • Title

1

Gravely 031426

STEERING WHEEL CAP
(Superseded to 03489800)

$

$

Not available

2

Gravely 039643

NUT-LK-NYL .625-18 YWZC
(Superseded to 06530300)

$4.99

$

In Stock, Qty 8

0

3

Gravely 031281

STEERING WHEEL
(Superseded to 03066600)

$

$

Not available

4

Gravely 039491

STEERING GEAR ASS'Y
(Superseded to 03080100)

$

$

Not available

5

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 039644

STEERING COLUMN CLAMP
(Superseded to 03103800)

$

$

Not available

7

Gravely 039645

PAD
(Superseded to 03104900)

$

$

Not available

8

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 131099

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$4.99

$

In Stock, Qty 17

0

10

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

11

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 036518

J-CLAMP
(Superseded to 06909400)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 039517

FRT AXLE
(Superseded to 53101100)

$

$

Not available

14

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 120388

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 413534

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 039480

MOUNTING BRACKET
(Superseded to 03019700)

$

$

Not available

18

Gravely 039433

BEARING FLANGE
(Superseded to 03102000)

$22.99

$

Usually ships in 4-12 days

0

19

Gravely 039511

BRG-BALL 1.0X2.047X1.20
(Superseded to 05410100)

$

$

Not available

20

Gravely 180185

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

21

Gravely 039646

WSHR-FL-STL .531X.938X.104 PL
(Superseded to 06413800)

$4.49

$

Usually ships in 4-12 days

0

22

Gravely 039472

STEERING ARM
(Superseded to 03013000)

$

$

Not available

23

Gravely 416464

NUT-LK-CONE .50-13 GR C YWZC
(Superseded to 06528200)

$3.99

$

In Stock, Qty 5

0

24

Gravely 415993

NUT,LK 1/2-20 HEX TYP CL
(Superseded to 21067600)

$

$

Not available

25

Gravely 039495

BALL JOINT L.H.
(Superseded to 03113000)

$65.99

$

In Stock, only 1 left!

0

26

Gravely 039647

NUT,HEX JAM L.H. THD 1/2-20

$

$

Not available

27

Gravely 039505

DRAG LINK
(Superseded to 03192900)

$

$

Not available

28

Gravely 120371

NUT,HEX 1/2-20
(Superseded to 21050100)

$

$

Not available

29

Gravely 036162

BALL JOINT R.H.
(Superseded to 03112900)

$37.99

$

In Stock, only 2 left!

0

30

Gravely 455313

PIN-ROLL .250X1.75
(Superseded to 05803700)

$0.99

$

In Stock, Qty 5

0

31

Gravely 039471

SPINDLE CAP
(Superseded to 03008800)

$

$

Not available

32

Gravely 039648

BSHG-SLV 1.000X1.125X.875
(Superseded to 05509100)

$

$

Not available

33

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

34

Gravely 039649

PLASTIC WASHER
(Superseded to 07506700)

$

$

Not available

35

Gravely 039458

L.H. SPINDLE
(Superseded to 03004600)

$

$

Not available

36

Gravely 411032

FTG,LUBE 90 DEG .250-28 TAPER
(Superseded to 07012800)

$5.49

$

In Stock, Qty 5

0

37

Gravely 039650

FRT AXLE
(Superseded to 53101100)

$

$

Not available

38

Gravely 039497

TIE ROD
(Superseded to 03116900)

$77.99

$

Usually ships in 4-12 days

0

39

Gravely 039473

FRONT STEERING ARM
(Superseded to 03013100)

$

$

Not available

40

Gravely 039459

R.H. SPINDLE
(Superseded to 03004700)

$

$

Not available

41

Gravely 039651

BRG-BALL 1.0X2.0X.55
(Superseded to 05412100)

$

$

Not available

42

Gravely 039652

T/WHL ASSY
(Superseded to 07115300)

$

$

Not available

43

Gravely 039653

TIRE 16X6.50-8 2 PLY
(Superseded to 07102100)

$61.99

$

Usually ships in 4-12 days

0

44

Gravely 039654

WHL
(Superseded to 07111000)

$

$

Not available

45

Gravely 039022

WSHR-FL-STL 1.031X1.625X.188
(Superseded to 06400025)

$6.49

$

Usually ships in 4-12 days

0

46

Gravely 039655

NUT-SL 1.0-14
(Superseded to 06513100)

$6.49

$

Usually ships in 4-12 days

0

47

Gravely 187988

PIN-CTR .18X1.25 EXTPRSQCT YZ
(Superseded to 06712700)

$2.49

$

In Stock, only 2 left!

0

48

Gravely 039516

FRONT HUB CAP
(Superseded to 07508900)

$

$

Not available
