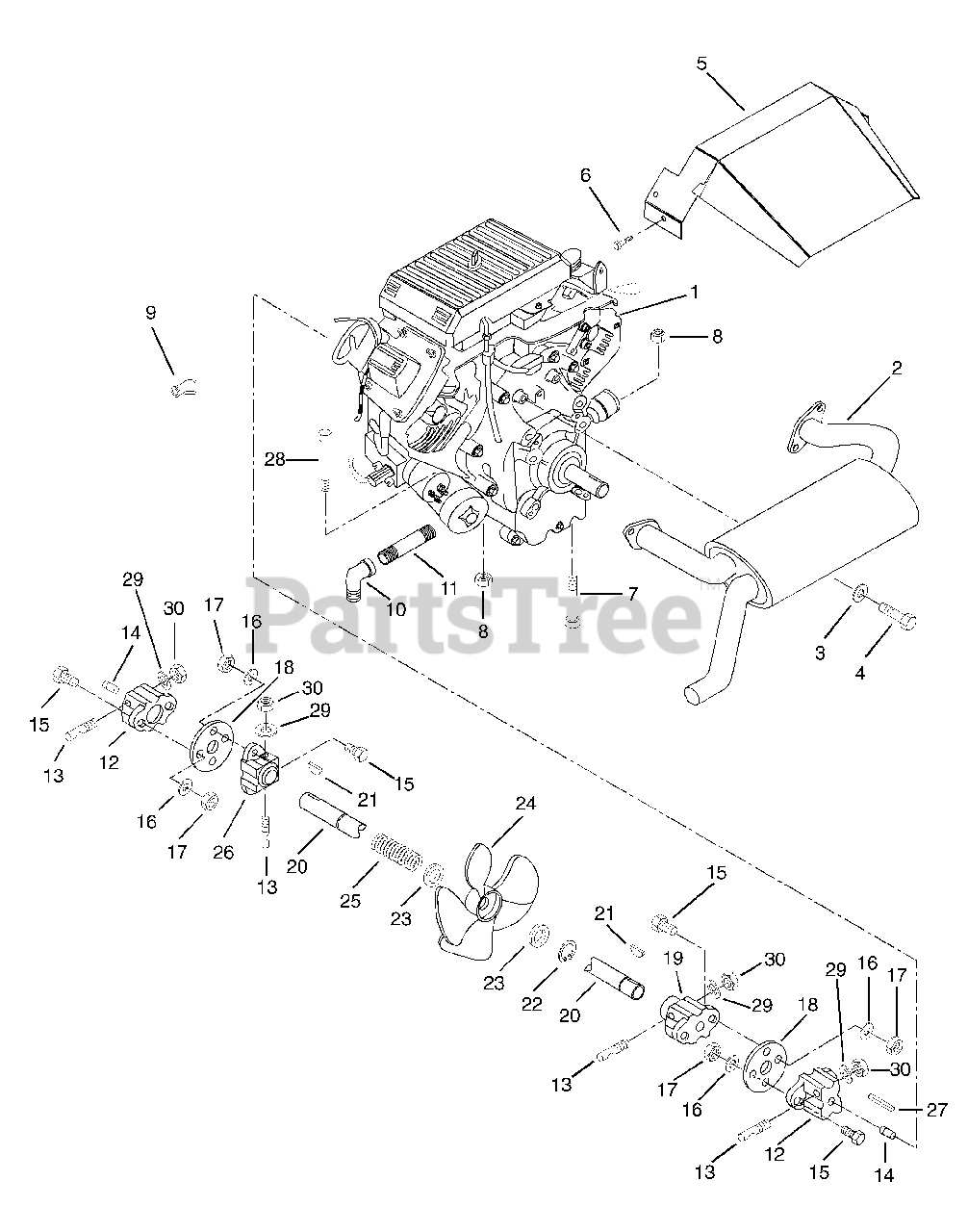

931038 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Engine And Drive Shaft Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Engine And Drive Shaft Parts Diagram

  • Title

1

Ariens 08248900

ENGINE KOHLER CH22 PS-66540

$

$

Not available

2

Ariens 03091100

MUFFLER - NELSON

$

$

Not available

3

Ariens 06310700

WSHR-LK .438X.133 HVY YWZC

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

5

Ariens 03091700

SHIELD, HEAT

$

$

Not available

6

Ariens 05943900

BLT-HEX M6 X 1.0X12 LG
(Superseded to 05969800)

$1.99

$

In Stock, Qty 5

0

7

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 2 left!

0

8

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03384700

BOOT, INSULATOR

$

$

Not available

10

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

11

Ariens 02749600

NIPPLE

$9.49

$

Usually ships in 4-12 days

0

12

Ariens 03089100

DRIVE HUB

$168.99

$

Usually ships in 4-12 days

0

13

Ariens 03013900

LOCK STUD

$18.99

$

Usually ships in 4-12 days

0

14

Ariens 05806600

PIN-GRV .313X.75 TP D

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

17

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03014000

SPACER COUPLING

$51.99

$

In Stock, only 1 left!

0

19

Ariens 03082300

DRIVE HUB- TWIN SHAFT

$

$

Not available

20

Ariens 03092700

SHAFT, DRIVE

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

22

Ariens 05701200

RG-RTNG-EXT .750X.042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

23

Ariens 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.49

$

In Stock, only 2 left!

0

24

Ariens 03199500

FAN

$36.99

$

In Stock, only 1 left!

0

25

Ariens 08321400

SG-COMP .120X.75X2.50 WLD48

$

$

Not available

26

Ariens 03014900

DRIVE HUB

$

$

Not available

27

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

28

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

29

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

30

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!
