931038 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Rear Power Take Off (PTO) Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

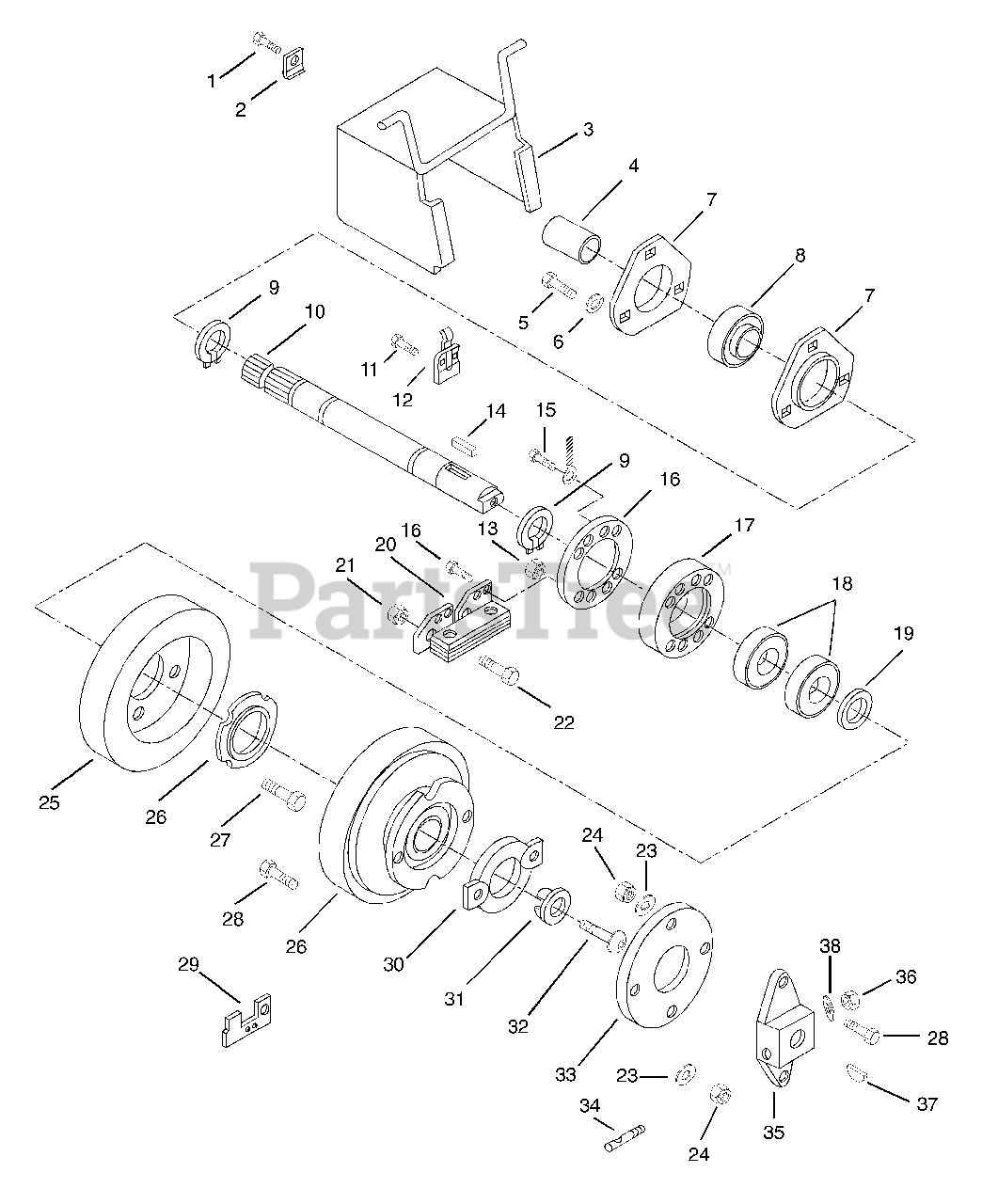

Rear Power Take Off (PTO) Parts Diagram

  • Title

1

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 03016400

CLIP

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 03016300

PTO SHIELD

$

$

Not available

4

Ariens 07506000

SHAFT COVER

$4.49

$

In Stock, only 2 left!

0

5

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

6

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

7

Ariens 03102000

BEARING FLANGE

$21.99

$

Usually ships in 4-12 days

0

8

Ariens 05426200

BRG/W COLLAR 1.0 X 2.047 X.844

$45.99

$

In Stock, Qty 6

0

9

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 03036700

SHAFT

$410.99

$

Usually ships in 4-12 days

0

11

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 03130500

SNAP FASTENER

$

$

Not available

13

Ariens 06530600

NUT-LK-DUAL FACE 10-24 YWZC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 10

0

15

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

16

Ariens 03036500

RING

$

$

Not available

17

Ariens 03036400

BEARING MOUNT

$

$

Not available

18

Ariens 05416000

BRG-BALL 1.0X2.0X.56 (1641)

$14.99

$

Usually ships in 4-12 days

0

19

Ariens 06444900

WSHR-FL-STL 1.031X1.375X.055YZ

$

$

Not available

20

Ariens 53121700

TORQUE BRACKET ASSEMBLY

$206.99

$

Usually ships in 4-12 days

0

21

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

22

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 03199000

ELECTRIC CLUTCH

$

$

Not available

26

Ariens 03036600

BEARING FLANGE

$

$

Not available

27

Ariens 06117500

SCR-MCH 10-24X1.25 SL PAN YWZC

$

$

Not available

28

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 03076900

CONNECTOR MOUNTING CLIP
(Superseded to 53121900)

$

$

Not available

30

Ariens 03015800

PILOT PLATE

$

$

Not available

31

Ariens 03015700

RETAINER

$

$

Not available

32

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

33

Ariens 03199300

SPACER COUPLING

$41.99

$

Usually ships in 4-12 days

0

34

Ariens 03013900

LOCK STUD

$18.99

$

Usually ships in 4-12 days

0

35

Ariens 03198800

COUPLING

$

$

Not available

36

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

37

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

38

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0
