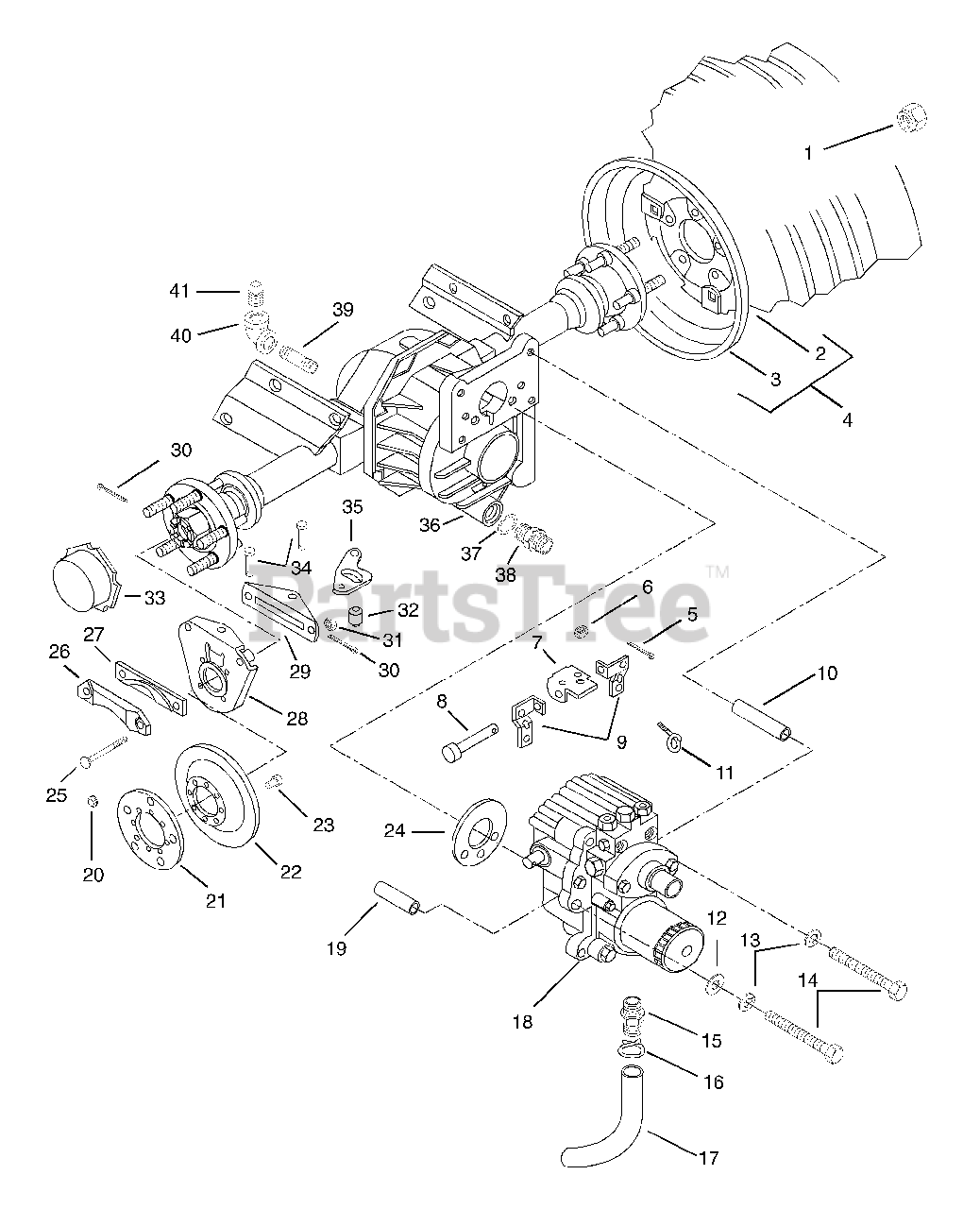

931303 - Ariens Grand Sierra Garden Tractor, 22hp Kohler, Hydro (SN: 000101 & Above) Hydrostatic Drive And Brakes Parts Diagram

Grand Sierra Garden Tractor, 22hp Kohler, Hydro

Hydrostatic Drive And Brakes Parts Diagram

  • Title

1

Ariens 06511400

NUT-LUG .437-20 YWZC

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 07111900

TIRE

$

$

Not available

3

Ariens 07110600

WHL

$

$

Not available

4

Ariens 07115400

T/WHL ASSY 10.50X23

$

$

Not available

5

Ariens 06707400

@PIN-CTR .09X.50 EXTPRSQCT YWZ

$0.99

$

Usually ships in 4-12 days

0

6

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

7

Ariens 03157700

CAM

$

$

Not available

8

Ariens 03106900

CLEVIS PIN
(Superseded to 06810900)

$

$

Not available

9

Ariens 03157000

SUPPORT

$

$

Not available

10

Ariens 03148700

SPACER .379X.625X3.480

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 03007900

CABLE SUPPORT

$28.99

$

Usually ships in 4-12 days

0

12

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 9

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 19

0

14

Ariens 05957700

@BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

15

Ariens 07020300

FTG-ADPTR 88-14

$6.99

$

Usually ships in 4-12 days

0

16

Ariens 03006500

HOSE CLAMP #15 .906/.968

$

$

Not available

17

Ariens 03006400

HOSE .62X.91X8.00

$27.99

$

Usually ships in 4-12 days

0

18

Ariens 03083500

TRANSMISSION ASS'Y

$

$

Not available

19

Ariens 03041400

SPACER .379X.625X3.220

$

$

Not available

20

Ariens 07505500

GROMMET

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 03007000

CARRIER

$

$

Not available

22

Ariens 03007100

DISC

$

$

Not available

23

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 6

0

24

Ariens 03148000

GASKET

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 06222400

@BLT-RDHDSQNK .38-16X3.50 G5YZ
(Superseded to 06200302)

$9.49

$

In Stock, Qty 5

0

26

Ariens 03006900

CALIPER PLATE

$

$

Not available

27

Ariens 03006800

FRICTION PLATE

$

$

Not available

28

Ariens 03006700

PLATE, CALIPER MOUNTING

$25.99

$

Usually ships in 4-12 days

0

29

Ariens 03007500

PRESSURE PLATE

$5.99

$

Usually ships in 4-12 days

0

30

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 5

0

31

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03007300

ROLLER

$

$

Not available

33

Ariens 07508800

REAR HUB CAP

$15.99

$

Usually ships in 4-12 days

0

34

Ariens 03007400

PIN-CLEV .371X1.62 YWZC

$

$

Not available

35

Ariens 03007200

BRAKE ARM

$

$

Not available

36

Ariens 03078400

REAR AXLE & SUPPORTS

$

$

Not available

37

Ariens 05612200

O-RING .924X1.156X.116

$

$

Not available

38

Ariens 03076100

CONNECTOR

$

$

Not available

39

Ariens 03087300

PIPE NIPPLE

$3.49

$

Usually ships in 4-12 days

0

40

Ariens 03003800

ELBOW 1/2 X 90

$

$

Not available

41

Ariens 00113700

PIPE PLUG

$

$

Not available
