932004 (ST 350) - Ariens 20" Snow Blower, 3.5hp Tecumseh (SN: 030101 - 035000) Tractor Parts (Continued) Parts Diagram

20" Snow Blower, 3.5hp Tecumseh

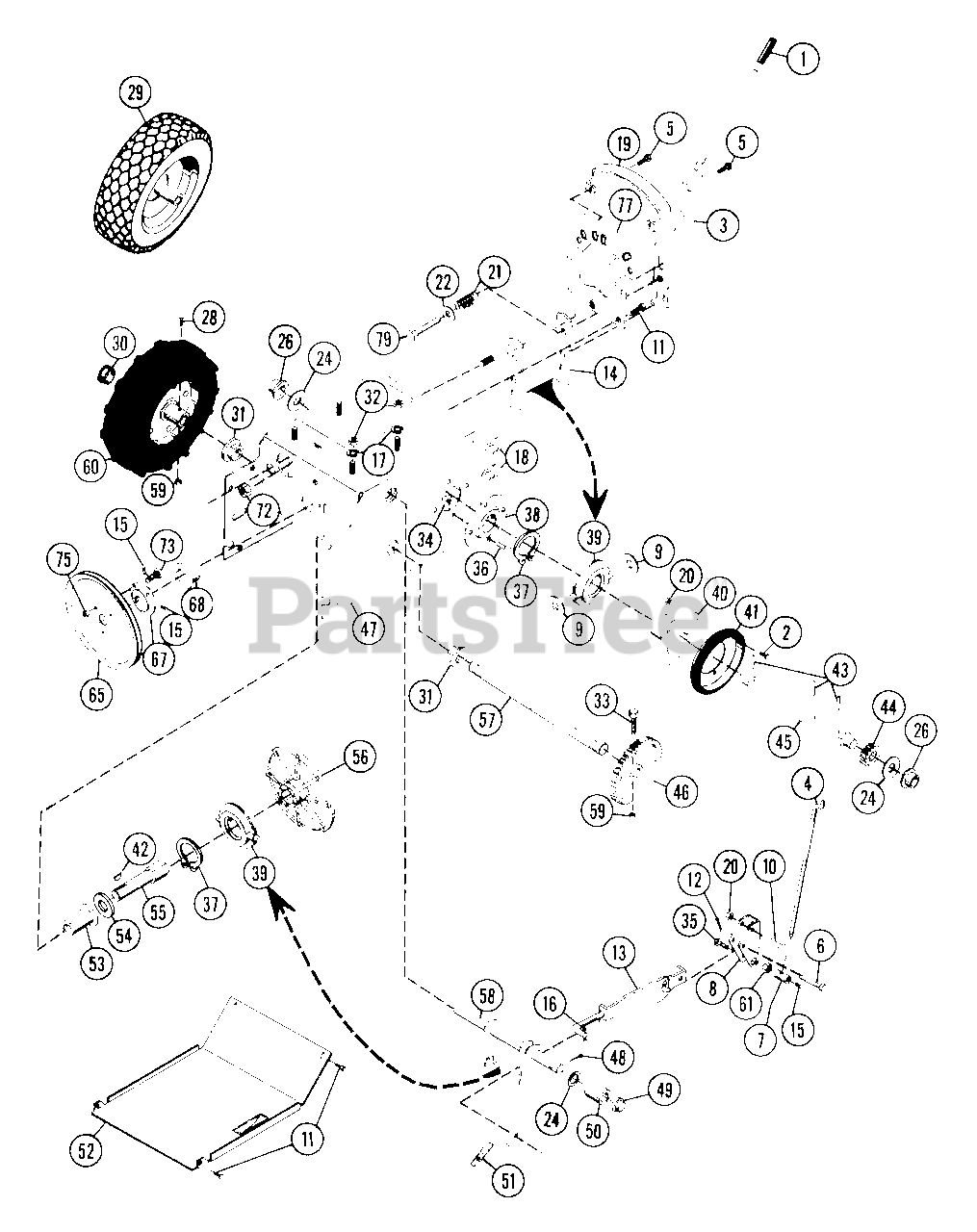

Tractor Parts (Continued) Parts Diagram

  • Title

1

Ariens 07508600

GRIP 5/16 X 2 3/4
(Superseded to 07530200)

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

3

Ariens 03207100

SHIFT HANDLE

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 03202600

CLUTCH ROD

$

$

Not available

5

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

6

Ariens 03212300

CLEVIS PIN

$

$

Not available

7

Ariens 02213500

ROD ADAPTER

$40.99

$

Usually ships in 4-12 days

0

8

Ariens 03201700

BRACKET

$

$

Not available

9

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05906200

BLT-HEX .25-20X1.75 PL GR2
(Superseded to 05964700)

$2.49

$

In Stock, Qty 5

0

11

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

13

Ariens 63202700

TRACTION CLUTCH ASSEMBLY
(Superseded to 53203200)

$

$

Not available

14

Ariens 03200200

SHIFTING FORK

$

$

Not available

15

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

16

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

18

Ariens 07210600

V-BELT, 3L-COGGED

Note: (DRIVE)

$36.99

$

In Stock, Qty 11

0

19

Ariens 03211500

SHIFT HANDLE RETAINER

$

$

Not available

20

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 08309000

SG-COMP .105X.585X.75

$

$

Not available

22

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

26

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 9

0

28

Ariens 05915000

BLT-HEX .25-20X1.50 GR5

$

$

Not available

29

Ariens 63202600

WHEEL ASSEMBLY
(Superseded to 07124100)

Note: (Used Only On Model(s): 932004,6,7).

$81.99

$

In Stock, only 4 left!

0

Ariens 07108500

TUBE

$18.99

$

Usually ships in 4-12 days

0

Ariens 07101600

TIRE 4.1/3.50X4

$45.99

$

Usually ships in 4-12 days

0

Ariens 07112400

WHL

$

$

Not available

30

Ariens 07508700

HOLE PLUG

$1.99

$

In Stock, only 2 left!

0

31

Ariens 05512300

BSHG-FLG.750X.875X.750X1.188HX
(Superseded to 05521600)

$10.99

$

In Stock, only 2 left!

0

32

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

33

Ariens 05919100

BLT-HEX .25-20X1.75 GR 8
(Superseded to 05952700)

$3.99

$

In Stock, only 2 left!

0

34

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, only 3 left!

0

35

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

36

Ariens 06204900

BLT-RDHDSQNK 10-24X.38 PL
(Superseded to 06214200)

$0.99

$

In Stock, Qty 9

0

37

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$4.99

$

In Stock, only 2 left!

0

38

Ariens 03201400

BUSHING FLANGE

$23.99

$

In Stock, only 2 left!

0

39

Ariens 03201200

BEARING FLANGE
(Superseded to 03225900)

$83.99

$

In Stock, only 4 left!

0

40

Ariens 03207200

FRICTION WHEEL HUB

$

$

Not available

41

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$41.99

$

In Stock, Qty 20+

0

42

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 6

0

43

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 6

0

44

Ariens 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

45

Ariens 03207300

HEX SHAFT

$32.99

$

Usually ships in 4-12 days

0

46

Ariens 03209000

GEAR ZYTEL
(Superseded to 03226000)

$52.99

$

In Stock, only 2 left!

0

47

Ariens 03207000

FRAME

$

$

Not available

48

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

49

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

50

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.99

$

In Stock, Qty 18

0

51

Ariens 08314100

SG-TENS .063X.44X1.56

$6.49

$

In Stock, Qty 6

0

52

Ariens 03209100

BOTTOM COVER
(Superseded to 03229300)

$

$

Not available

53

Ariens 05512000

BSHG-FLG .625X.875X1.750X1.188

$18.99

$

In Stock, only 2 left!

0

54

Ariens 06417300

WSHR, THRUST .625X1.125X.063

$9.99

$

Usually ships in 4-12 days

0

55

Ariens 03200700

HEX SHAFT

$70.99

$

Usually ships in 4-12 days

0

56

Ariens 03201100

FRICTION PLATE

$76.99

$

In Stock, only 3 left!

0

57

Ariens 03208800

AXLE SHAFT

$91.99

$

Usually ships in 4-12 days

0

58

Ariens 03200500

CLUTCH FORK

$

$

Not available

59

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 07112500

WHL
(Superseded to 07124100)

Note: (Used Only On Model(s): 932001).

$81.99

$

In Stock, only 4 left!

0

60

Ariens 07112600

WHL
(Superseded to 07124100)

Note: (Used Only On Model(s): 932001).

$81.99

$

In Stock, only 4 left!

0

61

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

65

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

Note: (DRIVE)

$

$

Not available

67

Ariens 03205000

HUB

$

$

Not available

68

Ariens 05512100

BSHG-FLG .875X1.25X.75X1.50HX

$15.99

$

In Stock, only 3 left!

0

70

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

72

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$13.99

$

In Stock, only 2 left!

0

73

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

75

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

77

Ariens 03211300

QUADRANT

Note: (Used Only On Model(s): 932001,04).

$

$

Not available

77

Ariens 03211700

QUADRANT

Note: (Used Only On Model(s): 932006).

$

$

Not available

78

Ariens 07005700

NUT-RETNR .312-18 TINRMAN

$

$

Not available

79

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0
