932015 (ST 2+2) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Belt Drive And Controls Parts Diagram

20" Snow Blower, 5hp Tecumseh

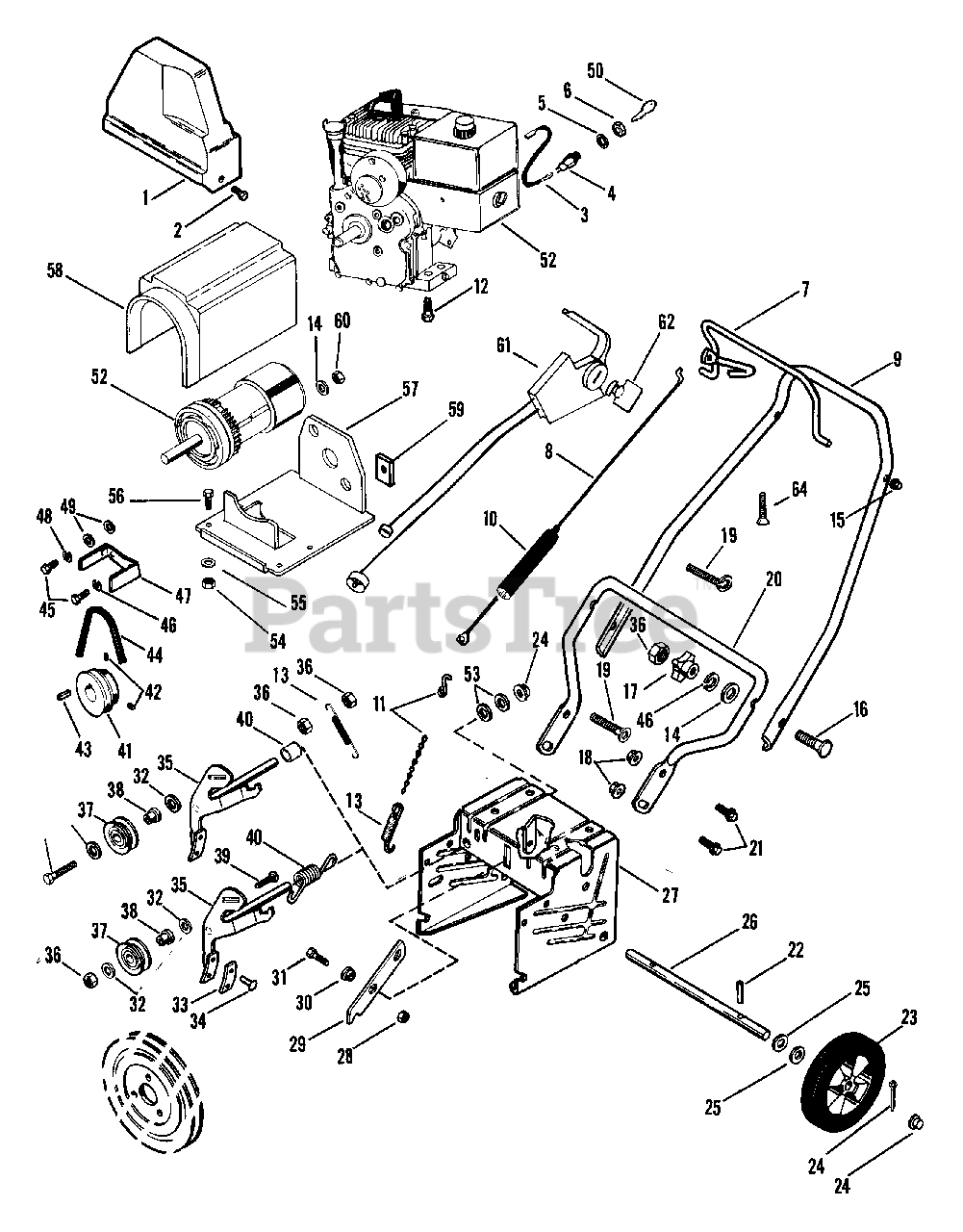

Belt Drive And Controls Parts Diagram

  • Title

1

Ariens 53204000

BELT COVER

$82.99

$

Usually ships in 4-12 days

0

2

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 03216400

WIRE

Note: (15,18)

$

$

Not available

4

Ariens 03216800

SWITCH
(Superseded to 53204700)

Note: (15,18)

$61.99

$

In Stock, only 1 left!

0

5

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$9.99

$

Usually ships in 4-12 days

0

7

Ariens 03215600

BAIL
(Superseded to 03215651)

Note: (15,18)

$

$

Not available

8

Ariens 06914800

CABLE

Note: (15 S/N (023800)

$

$

Not available

8

Ariens 06915800

CABLE

Note: (18,15 S/N 023801))

$

$

Not available

9

Ariens 03214700

UPPER HANDLEBAR

Note: (15,18)

$

$

Not available

9

Ariens 03218900

UPPER HANDLEBAR

Note: (17)

$

$

Not available

10

Ariens 07515000

COVER

Note: (15,18)

$

$

Not available

11

Ariens 00204200

CHAIN & CONNECTOR

Note: (15,18)

$8.49

$

In Stock, only 2 left!

0

12

Ariens 07403000

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

$4.99

$

In Stock, Qty 18

0

13

Ariens 08301000

SG-TENS .072X.51X5.31 WLD 25

Note: (17)

$10.99

$

In Stock, only 2 left!

0

13

Ariens 08318300

SG-TENS .091X.56X6.12 WLD 40

Note: (15 S/N (023800)

$

$

Not available

13

Ariens 08324300

SG-TENS .091X.56X4.25 WLD 40

Note: (18,15 S/N 023801))

$

$

Not available

14

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$3.49

$

In Stock, Qty 15

0

16

Ariens 07010000

BLT-CRVD-HD .31-18X3.0 PL
(Superseded to 07010900)

$5.49

$

Usually ships in 4-12 days

0

17

Ariens 07514900

KNOB 5/16-18UNC THREAD
(Superseded to 07534800)

$4.99

$

In Stock, Qty 20+

0

18

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06905300

TIE DOWN
(Superseded to 07517300)

Note: (17)

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 03225600

LOWER HANDLEBAR

$

$

Not available

21

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$2.49

$

In Stock, only 3 left!

0

22

Ariens 05803400

PIN-ROLL .125X.75

$1.49

$

In Stock, Qty 6

0

23

Ariens 07114600

WHL

$

$

Not available

24

Ariens 01208600

CAP, .50 ROD YWZC

$4.49

$

In Stock, only 1 left!

0

24

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.49

$

In Stock, Qty 10

0

25

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$3.99

$

In Stock, Qty 20+

0

26

Ariens 03225700

AXLE

$

$

Not available

27

Ariens 03214100

FRAME

$

$

Not available

28

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 03215100

ARM
(Superseded to 03215151)

Note: (15,18)

$

$

Not available

30

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

Note: (15,18)

$2.99

$

In Stock, only 2 left!

0

31

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.49

$

In Stock, Qty 20+

0

33

Ariens 02217800

BRAKE LINING

Note: (15,18)

$10.99

$

In Stock, only 4 left!

0

34

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$2.49

$

In Stock, Qty 5

0

35

Ariens 53202300

BRAKE CLUTCH ARM W/LINING

Note: (15,18)

$

$

Not available

35

Ariens 03218100

IDLER ARM

Note: (17)

$

$

Not available

36

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 02457400

IDLER
(Superseded to 52007000)

$47.99

$

In Stock, Qty 14

0

38

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$4.99

$

In Stock, only 2 left!

0

39

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

Note: (17)

$3.99

$

In Stock, Qty 9

0

39

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

Note: (15)

$2.49

$

In Stock, Qty 8

0

40

Ariens 08322000

SG-TORS .148X1.0X1.53

Note: (15,18)

$17.99

$

In Stock, only 3 left!

0

40

Ariens 03218200

SPACER .520X.640X1.375

Note: (17)

$

$

Not available

41

Ariens 03207700

ENGINE SHEAVE

Note: (15,18)

$

$

Not available

41

Ariens 03218000

ENGINE SHEAVE

Note: (17)

$

$

Not available

42

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

Note: (15,18)

$3.99

$

In Stock, only 1 left!

0

43

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$2.49

$

In Stock, only 1 left!

0

44

Ariens 07211400

V-BELT, 4L-COGGED

$31.99

$

In Stock, only 2 left!

0

45

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$2.49

$

In Stock, Qty 20+

0

46

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 03209200

BELT FINGER
(Superseded to 03209251)

Note: (15,18)

$36.99

$

Usually ships in 4-12 days

0

48

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

49

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.99

$

In Stock, Qty 19

0

50

Ariens 01315700

KEYS
(Superseded to 02460700)

Note: (15,18)

$11.99

$

In Stock, Qty 16

0

52

Ariens 08219200

2.7 HP LAUSON ENGINE W/O CAM

Note: Order Engine/Motor and Parts from Engine/Motor Manufacturers Dealer;932015 SN <017274 & 932018 SN <011200

$

$

Not available

52

Ariens 08220900

2.7 HP TEC ENGINE

Note: Order Engine/Motor and Parts from Engine/Motor Manufacturers Dealer;932015 SN 017401><035000 & 932018 SN 011201>

$

$

Not available

52

Ariens 08221600

MOTOR-ELEC. B&S SERIES 748002

Note: Order Engine/Motor and Parts from Engine/Motor Manufacturers Dealer

$

$

Not available

52

Ariens 08227100

ENGINE-HSK 30 TEC

Note: Order Engine/Motor and Parts from Engine/Motor Manufacturers Dealer;932015 SN 035001>

$

$

Not available

52

Ariens 08223200

5HP TEC ENGINE

Note: Order Engine/Motor and Parts from Engine/Motor Manufacturers Dealer ;932015 SN <017274 & 932018 SN <011200

$

$

Not available

52

Ariens 08227200

ENGINE-HSSK 50 TEC NO PTO

Note: Order Engine/Motor and Parts from Engine/Motor Manufacturers Dealer;932015 SN 017401><035000 & 932018 SN 011201>

$

$

Not available

53

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$2.49

$

In Stock, Qty 20+

0

54

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.49

$

In Stock, Qty 20+

0

55

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$4.99

$

Usually ships in 4-12 days

0

56

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$2.49

$

Usually ships in 4-12 days

0

57

Ariens 03218600

MOTOR MOUNTING BRACKET

Note: (17)

$

$

Not available

58

Ariens 03219100

SHROUD

Note: (17)

$

$

Not available

59

Ariens 07515300

STRAIN RELIEF

Note: (17)

$

$

Not available

60

Ariens 06515600

NUT-EXTENDED 10-24 BRIGGS

Note: (17)

$

$

Not available

61

Ariens 03218500

CONTROL BOX

Note: (17)

$

$

Not available

62

Ariens 07515600

KEY

Note: (17)

$

$

Not available

63

Ariens 07515500

INSULATOR

Note: (17)

$

$

Not available

64

Ariens 06107600

SCR-MCH 10-24X1.50 CROVCNTRS

$

$

Not available
