932016 (ST 5+2) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Discharge Chute Parts Diagram

20" Snow Blower, 5hp Tecumseh

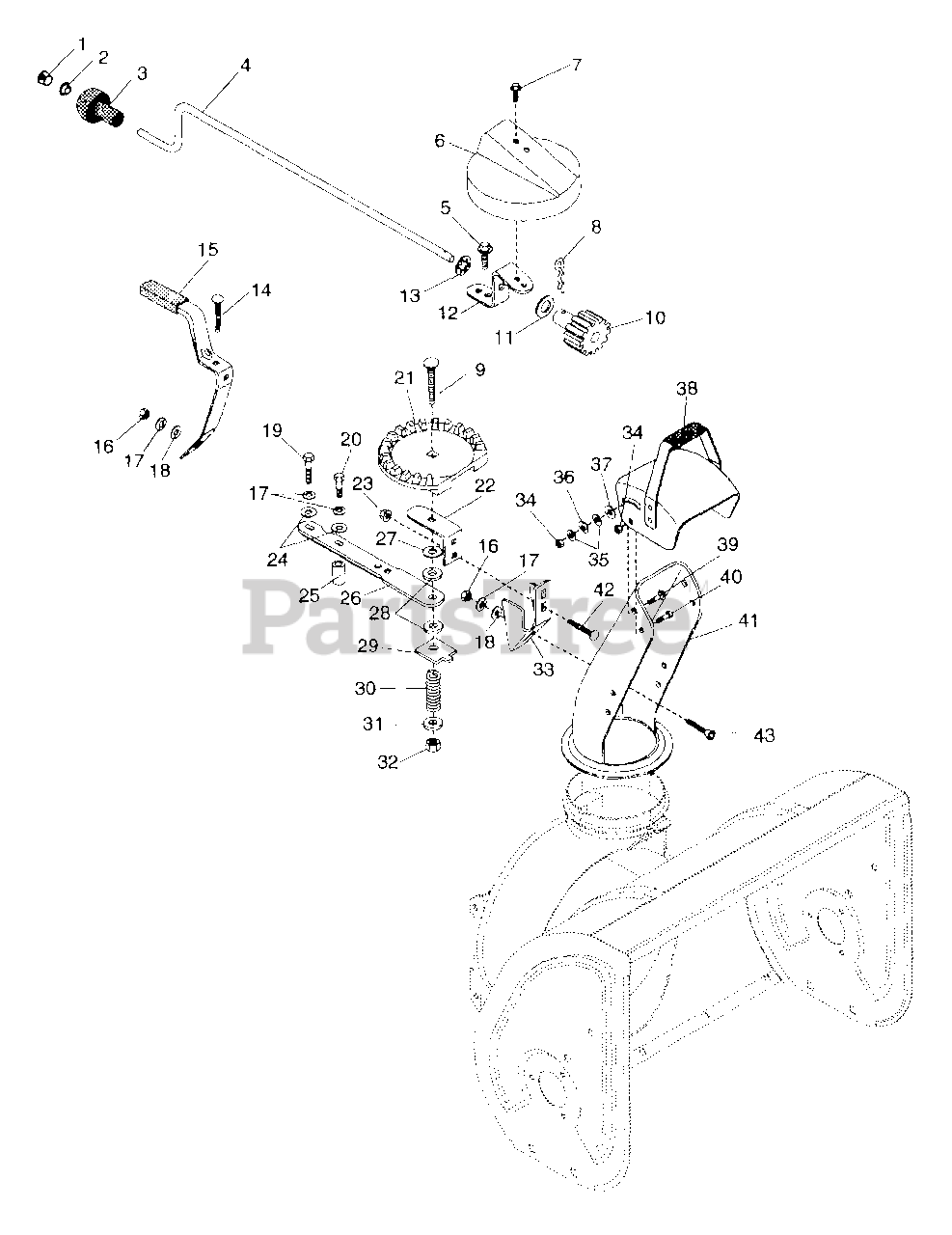

Discharge Chute Parts Diagram

  • Title

1

Ariens 07516700

HOLE PLUG

$1.99

$

In Stock, Qty 12

0

2

Ariens 05711300

RG-RTNG-EXT .375X.010

Note: (Used Only On Model(s): 026,027).

$0.99

$

In Stock, Qty 5

0

3

Ariens 07508300

KNOB

Note: (Used Only On Model(s): 026,027).

$14.99

$

In Stock, only 2 left!

0

4

Ariens 03228600

CHUTE CRANK

Note: (Used Only On Model(s): 026,027).

$88.99

$

Usually ships in 4-12 days

0

5

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03223000

GEAR COVER

Note: (Used Only On Model(s): 026,027).

$13.99

$

In Stock, only 2 left!

0

7

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.49

$

In Stock, Qty 8

0

8

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.99

$

In Stock, only 1 left!

0

9

Ariens 06200500

BLT-RDHDSQNK .38-16X2.25 SHTPL
(Superseded to 06213400)

$4.99

$

In Stock, Qty 20+

0

10

Ariens 03223900

PINION-CHUTE
(Superseded to 53214200)

Note: (Used Only On Model(s): 026,027).

$50.99

$

In Stock, only 2 left!

0

11

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 11

0

12

Ariens 03220500

BRACKET-GEAR
(Superseded to 53214200)

Note: (Used Only On Model(s): 026,027).

$50.99

$

In Stock, only 2 left!

0

13

Ariens 03224300

PUSHNUT .625

Note: (Used Only On Model(s): 026,027).

$2.49

$

In Stock, Qty 5

0

14

Ariens 06203200

BLT-RDHDSQNK .38-16X2.00 SHTYW
(Superseded to 06200323)

$2.99

$

In Stock, Qty 17

0

15

Ariens 03218800

CHUTE HANDLE W/PLASTISOL

Note: (Used Only On Model(s): 015,016,018,025).

$

$

Not available

16

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 8

0

17

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

Note: (Used Only On Model(s): 015,016,018,025).

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (Used Only On Model(s): 026,027).

$0.99

$

In Stock, Qty 5

0

18

Ariens 06417100

WSHR-FL-STL .312X.875X.18 PL

$

$

Not available

19

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

20

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.99

$

In Stock, only 4 left!

0

21

Ariens 03222900

CHUTE GEAR

Note: (Used Only On Model(s): 026,027).

$11.99

$

In Stock, Qty 8

0

22

Ariens 03220700

GEAR STRAP
(Superseded to 03220751)

Note: (Used Only On Model(s): 026,027).

$27.99

$

Usually ships in 4-12 days

0

23

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 03221800

SPACER .280X.625X.760

Note: (Used Only On Model(s): 026).

$15.99

$

Usually ships in 4-12 days

0

25

Ariens 03217300

SPACER .280X.625X.640

Note: (Used Only On Model(s): 015,016,018,025).

$15.99

$

Usually ships in 4-12 days

0

26

Ariens 03214200

STRAP

Note: (Used Only On Model(s): 015,016,018,025).

$

$

Not available

26

Ariens 03220400

STRAP-CHUTE CONTROL

Note: (Used Only On Model(s): 026).

$

$

Not available

26

Ariens 03224600

STRAP

Note: (Used Only On Model(s): 027).

$

$

Not available

27

Ariens 06406100

WSHR-FL-STL .380X1.50X.062 PL
(Superseded to 06439300)

Note: (Used Only On Model(s): 027).

$3.49

$

In Stock, Qty 20+

0

28

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

29

Ariens 03215500

FRICTION PLATE

Note: (Used Only On Model(s): 015,016,018,025).

$

$

Not available

29

Ariens 03219000

FRICTION PLATE

Note: (Used Only On Model(s): 026,027).

$32.99

$

In Stock, only 2 left!

0

30

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

31

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 03220300

STRAP, CHUTE

Note: (Used Only On Model(s): 026,027).

$

$

Not available

34

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

Usually ships in 4-12 days

0

36

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

37

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 9

0

38

Ariens 53201300

DEFLECTOR W/DECAL

$

$

Not available

39

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.99

$

In Stock, Qty 20+

0

40

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.99

$

In Stock, Qty 13

0

41

Ariens 03219800

DISCHARGE CHUTE
(Superseded to 03219859)

Note: (Used Only On Model(s): 026,027).

$

$

Not available

41

Ariens 03214400

CHUTE-DISCHARGE

Note: (Used Only On Model(s): 015,016,018).

$1187.99

$

Usually ships in 4-12 days

0

42

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

43

Ariens 05927300

SCR-SKH .25-20X.75 FLTCNTRSK

$

$

Not available
