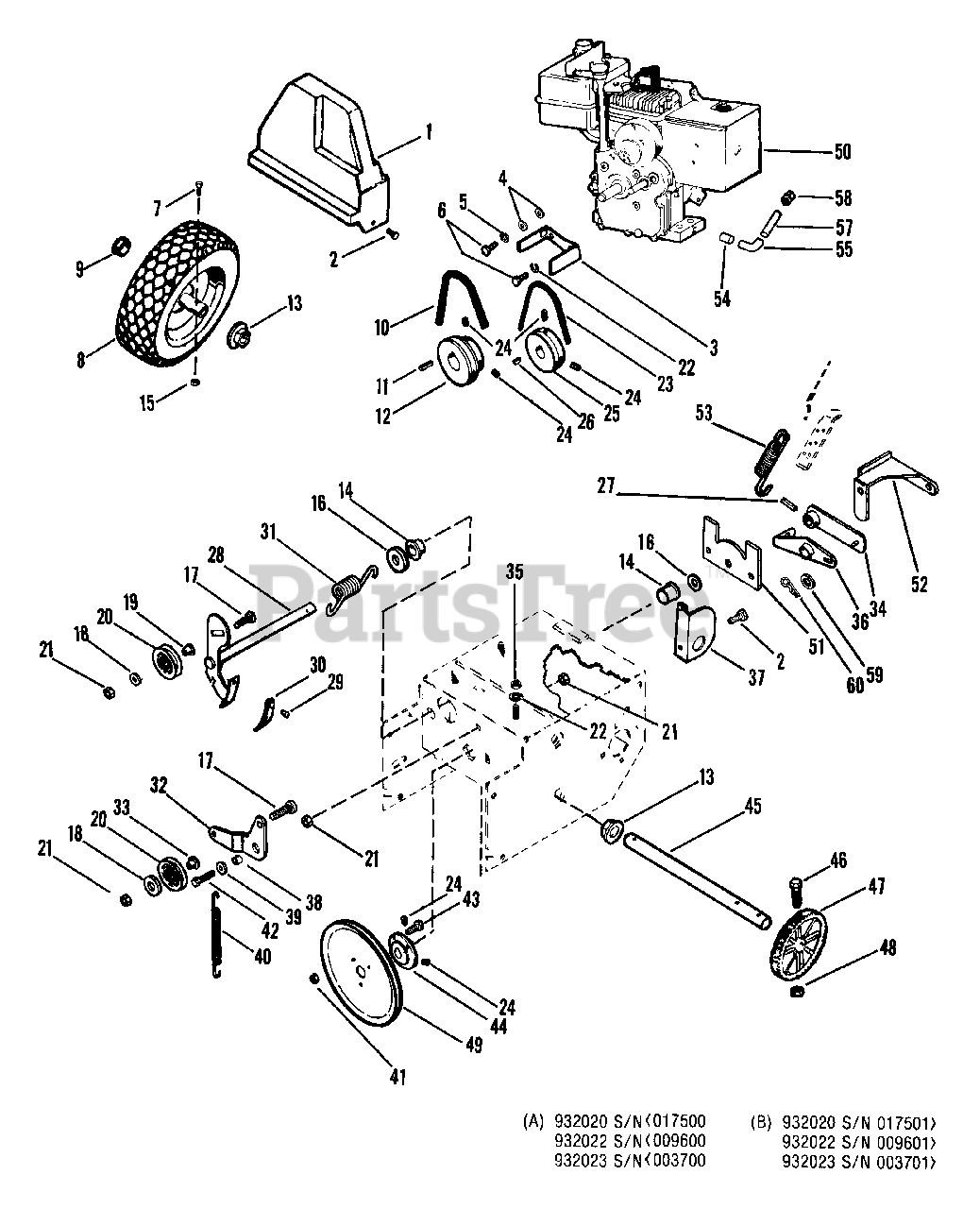

932022 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Belt Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

Belt Drive Parts Diagram

  • Title

1

Ariens 53204000

BELT COVER

$75.99

$

Usually ships in 4-12 days

0

2

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$1.49

$

In Stock, Qty 8

0

3

Ariens 03209200

BELT FINGER
(Superseded to 03209251)

Note: (1,4,6,7,19,20,23)

$32.99

$

Usually ships in 4-12 days

0

3

Ariens 03224800

BELT FINGER

Note: (22)

$

$

Not available

4

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, Qty 20+

0

5

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

6

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.99

$

In Stock, only 1 left!

0

7

Ariens 05917300

BLT-HEX .25-20X1.75 GR2
(Superseded to 05964700)

$2.49

$

In Stock, Qty 5

0

8

Ariens 07112500

WHL
(Superseded to 07124100)

Note: (1)

$81.99

$

In Stock, only 4 left!

0

8

Ariens 07112600

WHL
(Superseded to 07124100)

Note: (1)

$81.99

$

In Stock, only 4 left!

0

8

Ariens 07108500

TUBE

Note: (4,6,7,19,20,23)

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 07112400

WHL

Note: 4 (4,6,7,19)

$

$

Not available

8

Ariens 07101600

TIRE 4.1/3.50X4

Note: (4,6,7,19,20)

$45.99

$

Usually ships in 4-12 days

0

8

Ariens 07114700

WHL

Note: (4,6,7,19,20)

$

$

Not available

8

Ariens 07121100

TIRE 4.10-4 NHS
(Superseded to 07124100)

Note: (20,23)

$81.99

$

In Stock, only 4 left!

0

8

Ariens 07121200

T/WHL ASSY
(Superseded to 07124100)

Note: (20,23)

$81.99

$

In Stock, only 4 left!

0

8

Ariens 07124300

WHL-COMP
(Superseded to 07124100)

Note: (20,23)

$81.99

$

In Stock, only 4 left!

0

8

Ariens 07124100

T/WHL ASSY 4.10-4

Note: (20,23)

$81.99

$

In Stock, only 4 left!

0

8

Ariens 07105000

TUBE

Note: (22)

$12.99

$

In Stock, only 2 left!

0

8

Ariens 07121500

RIM/HUB ASSY 4.10/3.50X6

Note: (22)

$62.99

$

In Stock, only 1 left!

0

8

Ariens 07121300

TIRE
(Superseded to 07100814)

Note: (22)

$36.99

$

In Stock, only 4 left!

0

8

Ariens 07121400

T/WHL ASSY
(Superseded to 07148400)

Note: (22)

$75.99

$

In Stock, Qty 7

0

8

Ariens 07124400

WHL-COMP 3.5 X 6
(Superseded to 07148500)

Note: (22)

$56.99

$

Usually ships in 4-12 days

0

8

Ariens 07124200

T/WHL ASSY
(Superseded to 07148400)

Note: (22)

$75.99

$

In Stock, Qty 7

0

9

Ariens 07508700

HOLE PLUG

$1.99

$

In Stock, only 2 left!

0

10

Ariens 07211400

V-BELT, 4L-COGGED

Note: (1,4,6,7,19,20,23)

$30.99

$

In Stock, only 3 left!

0

10

Ariens 07215600

V-BELT, 4L-RAW EDGE

Note: (22)

$27.99

$

In Stock, only 2 left!

0

11

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.99

$

In Stock, Qty 5

0

12

Ariens 03207700

ENGINE SHEAVE

Note: (1,4,6,7,19,20,23)

$

$

Not available

12

Ariens 03225000

SHEAVE-ENGINE

Note: (22)

$

$

Not available

13

Ariens 05515100

BSHG-FLG .750X.873X.640X.900HX
(Superseded to 05521600)

$10.99

$

In Stock, only 2 left!

0

14

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.99

$

In Stock, Qty 11

0

15

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$1.49

$

In Stock, only 4 left!

0

17

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 12

0

18

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

20

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 2 left!

0

21

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 5

0

23

Ariens 07210600

V-BELT, 3L-COGGED

Note: (1,4,6,7,19,20,23)

$36.99

$

In Stock, Qty 11

0

23

Ariens 07215700

V-BELT, 3L-COGGED

Note: (22)

$30.99

$

In Stock, only 2 left!

0

24

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$3.49

$

In Stock, only 2 left!

0

25

Ariens 03201800

SHEAVE CAMSHAFT

Note: (1,4,6,7,19,20,23)

$

$

Not available

25

Ariens 03224900

SHEAVE-CAMSHAFT

Note: (22)

$

$

Not available

26

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.99

$

In Stock, only 2 left!

0

27

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 5

0

28

Ariens 53202300

BRAKE CLUTCH ARM W/LINING

Note: (15,18)

$

$

Not available

28

Ariens 53202400

BRAKE CLUTCH ARM W/LINING

Note: (1,4,6,7,19,20,22,23)

$

$

Not available

29

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 11

0

30

Ariens 02217800

BRAKE LINING

$9.99

$

In Stock, Qty 11

0

31

Ariens 08322000

SG-TORS .148X1.0X1.53

$15.99

$

Usually ships in 4-12 days

0

32

Ariens 03206900

IDLER ARM

$26.99

$

Usually ships in 4-12 days

0

33

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

34

Ariens 03201000

LEVER CLUTCH

Note: (1,4,6,7)

$79.99

$

Usually ships in 4-12 days

0

34

Ariens 03226800

LEVER WELDMENT

Note: (19,20,22,23)

$131.99

$

Usually ships in 4-12 days

0

35

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$1.49

$

In Stock, Qty 8

0

36

Ariens 03211000

LEVER

Note: (1,4,6,7)

$

$

Not available

36

Ariens 03221900

SPRING LEVER WELDMENT

Note: (19,20,22,23)

$

$

Not available

37

Ariens 03211600

CLUTCH BRACKET GUARD

$

$

Not available

38

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$6.49

$

Usually ships in 4-12 days

0

39

Ariens 06412800

WSHR-FL-STL .344X1.375X.075 PL
(Superseded to 06446900)

$2.99

$

In Stock, Qty 10

0

40

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$15.99

$

In Stock, only 2 left!

0

41

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

42

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.99

$

Usually ships in 4-12 days

0

43

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 3 left!

0

44

Ariens 03205000

HUB

$

$

Not available

45

Ariens 03208800

AXLE SHAFT

$91.99

$

Usually ships in 4-12 days

0

46

Ariens 05919100

BLT-HEX .25-20X1.75 GR 8
(Superseded to 05952700)

$3.99

$

In Stock, only 2 left!

0

47

Ariens 03226000

GEAR

$52.99

$

In Stock, only 2 left!

0

48

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

$

$

Not available

50

Ariens 08219300

2.7 HP LAUSON ENGINE

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08219400

3.5 HP LAUSON ENGINE

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08219500

5.0 HP LAUSON ENGINE

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08221100

3.5 HP LAUSON ENGINE W/PTO

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08221200

5.0 HP LAUSON ENGINE W/PTO

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08223700

3.5HP TEC ENGINE

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08223800

5.0HP TEC ENGINE

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08227400

ENGINE-HSSK 50 TEC W/PTO

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08224900

ENGINE-4 HP TEC W/PTO

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08227300

ENGINE-HSSK 40 TEC

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

50

Ariens 08225000

ENGINE-7 HP TEC W/PTO

Note: Order Engine & parts from Engine Manufacturers Dealer

$

$

Not available

51

Ariens 03220000

COVER

Note: (19,20,22,23)

$

$

Not available

52

Ariens 03220200

BELLCRANK

Note: (19,20,22,23)

$

$

Not available

53

Ariens 08321200

SG-TENS .135X.69X5.75 WLD 150

Note: (19,20,22,23)

$22.99

$

Usually ships in 4-12 days

0

54

Ariens 02520700

NIPPLE

Note: (22)

$

$

Not available

55

Ariens 01048500

STREET ELBOW

Note: (20,23)

$

$

Not available

55

Ariens 03226300

ELBOW 90 1/4-18 NPTF

Note: (22)

$

$

Not available

57

Ariens 01222200

NIPPLE

Note: (20,22,23)

$

$

Not available

58

Ariens 02520800

HEX CAP

Note: (20,22,23)

$

$

Not available

59

Ariens 06406500

WSHR-FL-STL .268X.562X.046 PL
(Superseded to 06437300)

$0.99

$

In Stock, only 3 left!

0

60

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0
