932025 (ST 5+2) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 008000 & Above) Belt Drive And Controls Parts Diagram

20" Snow Blower, 5hp Tecumseh

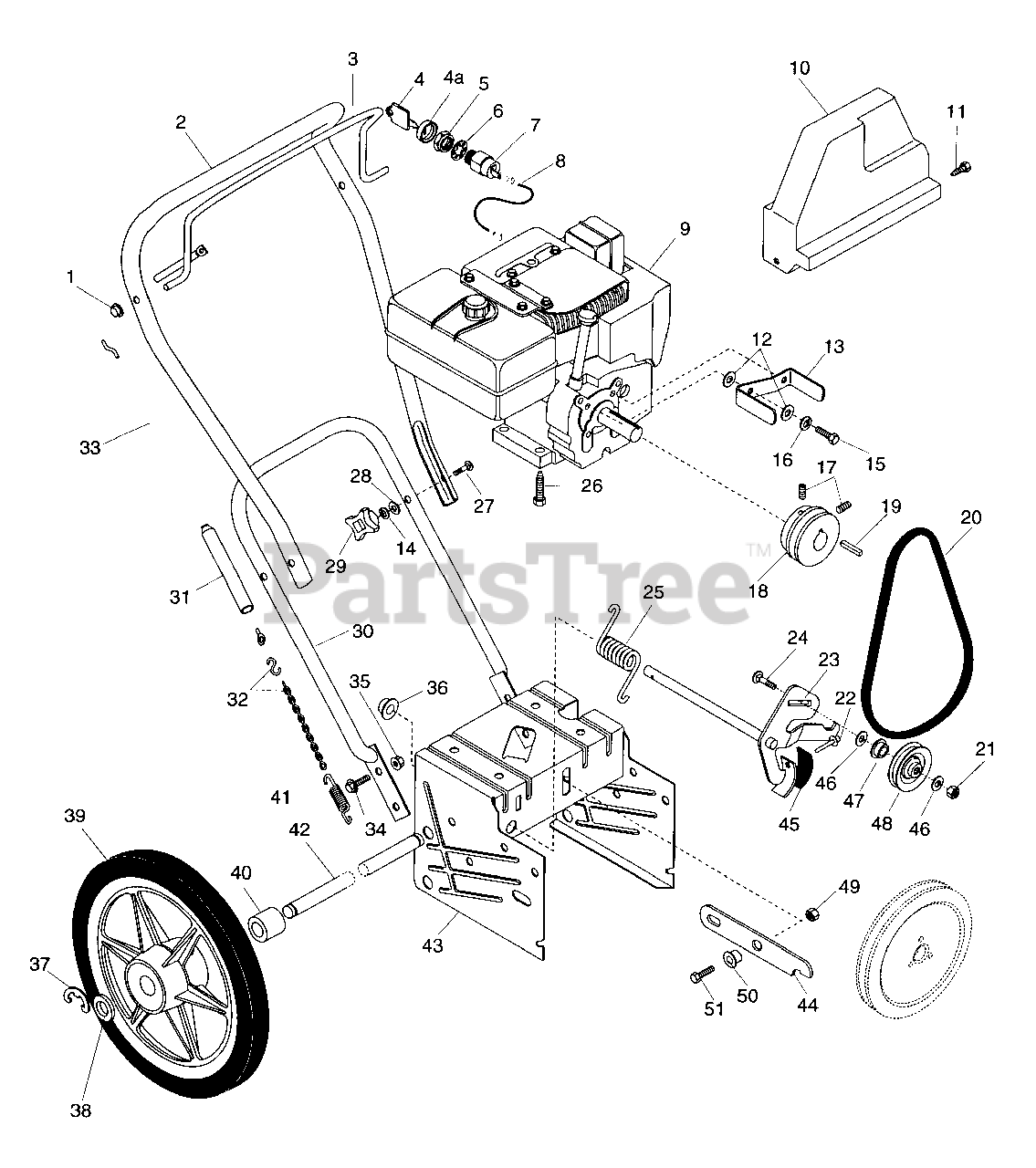

Belt Drive And Controls Parts Diagram

  • Title

1

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

2

Ariens 03230200

UPPER HANDLEBAR
(Superseded to 03230251)

$

$

Not available

3

Ariens 03215600

BAIL
(Superseded to 03215651)

$

$

Not available

4

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 16

0

4A

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 9

0

5

Ariens 06507500

NUT .625-32 ALUM
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

6

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

7

Ariens 03216800

SWITCH
(Superseded to 53204700)

$59.99

$

In Stock, only 1 left!

0

8

Ariens 03222400

WIRE

Note: Order engine and parts from engine manufacturer's dealer

$

$

Not available

9

Ariens 08227200

ENGINE-HSSK 50 TEC NO PTO

$

$

Not available

10

Ariens 03232300

BELT COVER
(Superseded to 03238000)

$44.99

$

In Stock, only 1 left!

0

11

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 6

0

12

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 03209200

BELT FINGER
(Superseded to 03209251)

$25.99

$

Usually ships in 4-12 days

0

14

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

15

Ariens 05905300

BLT-HEX .31-24X.75 PL GR5
(Superseded to 05947300)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06300100

WSHR-LK .313X.093 MED HICLR

$

$

Not available

17

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 17

0

18

Ariens 03207700

ENGINE SHEAVE

$146.99

$

Usually ships in 4-12 days

0

19

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

20

Ariens 07211400

V-BELT, 4L-COGGED

$28.99

$

In Stock, Qty 5

0

21

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

23

Ariens 53202300

BRAKE CLUTCH ARM W/LINING

$

$

Not available

24

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 9

0

25

Ariens 08322000

SG-TORS .148X1.0X1.53

$14.99

$

Usually ships in 4-12 days

0

26

Ariens 07403000

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

27

Ariens 07010000

BLT-CRVD-HD .31-18X3.0 PL
(Superseded to 07010900)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

29

Ariens 07515400

KNOB 5/16-18 UNC
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

30

Ariens 03230500

LOWER HANDLEBAR
(Superseded to 03230551)

$

$

Not available

31

Ariens 07515000

COVER

$35.99

$

Usually ships in 4-12 days

0

32

Ariens 00204200

CHAIN & CONNECTOR

$6.99

$

In Stock, Qty 6

0

33

Ariens 06915800

CABLE

$

$

Not available

34

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$1.49

$

In Stock, only 3 left!

0

35

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

36

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

37

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

In Stock, only 2 left!

0

39

Ariens 07137200

WHEEL - 16 X 1.75 X .562

$

$

Not available

40

Ariens 03231100

AXLE SPACER
(Superseded to 03240800)

$13.99

$

Usually ships in 4-12 days

0

41

Ariens 08324300

SG-TENS .091X.56X4.25 WLD 40

$

$

Not available

42

Ariens 03231200

AXLE

$14.99

$

Usually ships in 4-12 days

0

43

Ariens 03231300

FRAME

$

$

Not available

44

Ariens 03215100

ARM
(Superseded to 03215151)

$

$

Not available

45

Ariens 02217800

BRAKE LINING

$9.49

$

In Stock, only 1 left!

0

46

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

47

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

48

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

49

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 1 left!

0

51

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0
