932027 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 031750 & Above) Friction Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

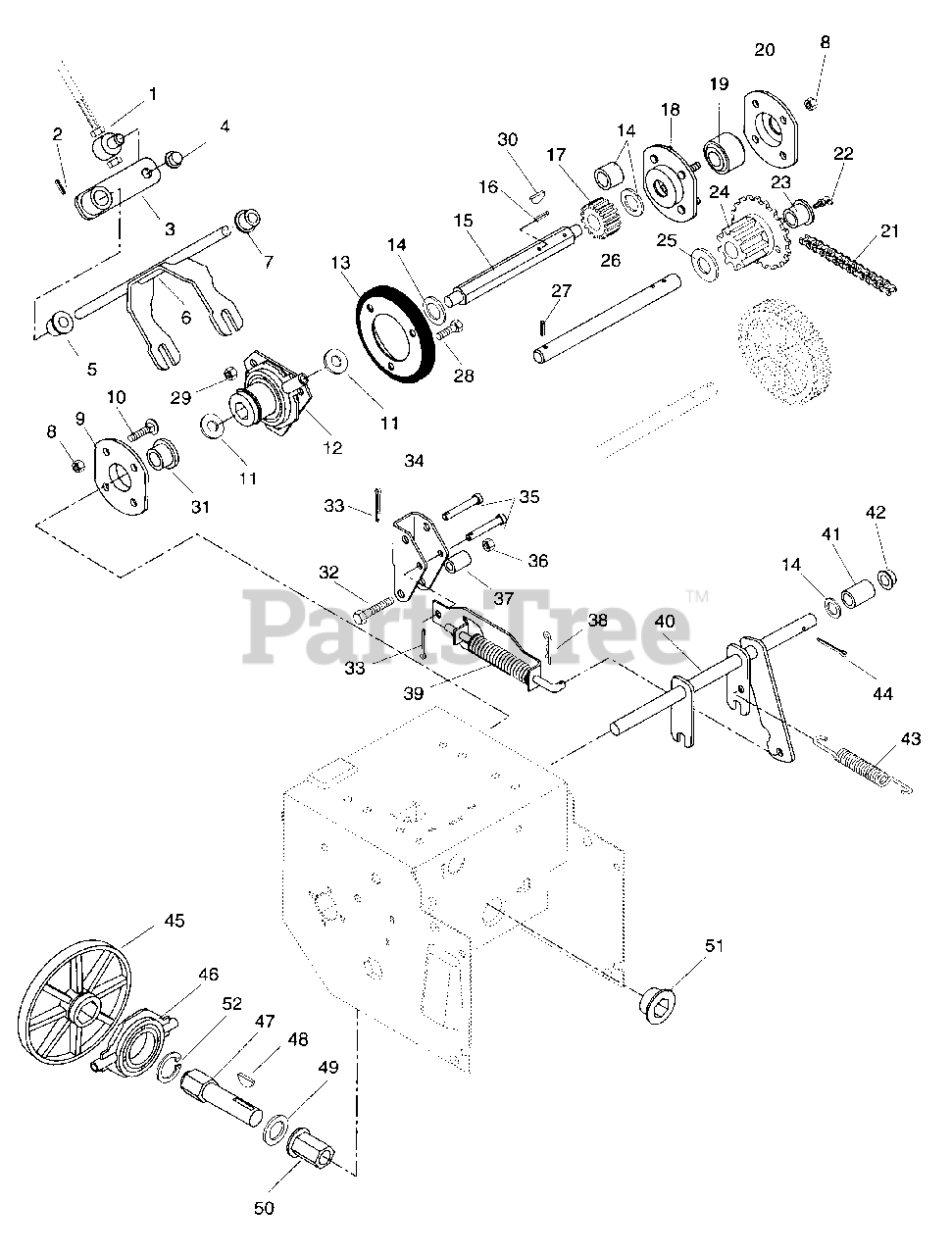

Friction Drive Parts Diagram

  • Title

1

Ariens 01124100

SWIVEL

$58.99

$

Usually ships in 4-12 days

0

2

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 5

0

3

Ariens 03231800

ARM-SPEED CHANGE

$

$

Not available

4

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

5

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$3.99

$

In Stock, Qty 11

0

6

Ariens 03231700

FORK-SPEED

$131.99

$

In Stock, only 1 left!

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 9

0

8

Ariens 06509400

NUT-LK DUAL FACE 10-24 PL
(Superseded to 06530600)

$0.99

$

In Stock, only 3 left!

0

9

Ariens 03201400

BUSHING FLANGE

$23.99

$

In Stock, only 2 left!

0

10

Ariens 06204900

BLT-RDHDSQNK 10-24X.38 PL
(Superseded to 06214200)

$0.99

$

In Stock, Qty 9

0

11

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03235300

SHIFT CARRIER

$

$

Not available

13

Ariens 02201300

FRICTION DISC
(Superseded to 03248300)

$41.99

$

In Stock, Qty 20+

0

14

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

Note: For models (026,027,302,303)

$1.49

$

In Stock, only 4 left!

0

14

Ariens 03233100

SPACER .513X.748X.620

Note: For model (029)

$15.99

$

Usually ships in 4-12 days

0

15

Ariens 03207300

HEX SHAFT

Note: For models (026,027,302,303)

$32.99

$

Usually ships in 4-12 days

0

15

Ariens 03232900

HEX SHAFT

Note: For model (029)

$85.99

$

Usually ships in 4-12 days

0

16

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 6

0

17

Ariens 02201100

PINION

Note: For models (026,027,302,303)

$10.99

$

In Stock, only 1 left!

0

17

Ariens 01027600

9 TOOTH SPROCKET

Note: For model (029)

$43.99

$

Usually ships in 4-12 days

0

18

Ariens 00308500

BEARING FLANGE

$23.99

$

In Stock, only 2 left!

0

19

Ariens 05408000

BRG-BALL .500X1.38X.437

$6.99

$

In Stock, Qty 20+

0

20

Ariens 03226900

BEARING FLANGE

$18.99

$

In Stock, only 2 left!

0

21

Ariens 03232800

CHAIN-ROLLER #41X26 PITCHES

Note: For model (029)

$15.99

$

Usually ships in 4-12 days

0

22

Ariens 01313600

HYDRAULIC DRIVE FITTING
(Superseded to 07029700)

Note: For model (029)

$12.99

$

Usually ships in 4-12 days

0

23

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

Note: For model (029)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 53205400

SPROCKET ASSY

Note: For model (029)

$

$

Not available

25

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

Note: For model (029)

$0.99

$

In Stock, Qty 12

0

26

Ariens 03232600

SHAFT-PINION
(Superseded to 53216000)

Note: For model (029)

$73.99

$

Usually ships in 4-12 days

0

27

Ariens 05800900

PIN-ROLL .125X1.00

Note: For model (029)

$0.99

$

In Stock, only 4 left!

0

28

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, only 3 left!

0

29

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

Note: For model (029)

$2.99

$

In Stock, only 2 left!

0

31

Ariens 05511000

BSHG-FLG .500X.750X.625X.937

$11.99

$

In Stock, Qty 9

0

32

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.99

$

In Stock, Qty 6

0

33

Ariens 06703400

PIN COTR .09X.50 PL
(Superseded to 06707400)

$0.99

$

Usually ships in 4-12 days

0

34

Ariens 03220600

BRACKET

$60.99

$

Usually ships in 4-12 days

0

35

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.99

$

Usually ships in 4-12 days

0

36

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

37

Ariens 03222500

SPACER -SPLIT .340X.490X1.02

$

$

Not available

38

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 53205500

TRACTION CLUTCH ASSY

$

$

Not available

40

Ariens 03221100

CLUTCH FORK

$84.99

$

Usually ships in 4-12 days

0

41

Ariens 03231500

SPACER .504X.748X.321

$15.99

$

Usually ships in 4-12 days

0

42

Ariens 01208600

CAP, .50 ROD YWZC

$2.99

$

Usually ships in 4-12 days

0

43

Ariens 08314100

SG-TENS .063X.44X1.56

$6.49

$

In Stock, Qty 6

0

44

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

45

Ariens 03201100

FRICTION PLATE

$76.99

$

In Stock, only 3 left!

0

46

Ariens 03225900

BEARING ASSEMBLY

$83.99

$

In Stock, only 4 left!

0

47

Ariens 03200700

HEX SHAFT

$70.99

$

Usually ships in 4-12 days

0

48

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 6

0

49

Ariens 06417300

WSHR, THRUST .625X1.125X.063

$9.99

$

Usually ships in 4-12 days

0

50

Ariens 05512000

BSHG-FLG .625X.875X1.750X1.188

$18.99

$

In Stock, only 2 left!

0

51

Ariens 05512100

BSHG-FLG .875X1.25X.75X1.50HX

$15.99

$

In Stock, only 3 left!

0

52

Ariens 05704300

RG-RTNG-EXT 1.250X.050

$4.99

$

In Stock, only 2 left!

0
