932027 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 031750 & Above) Gearcase And Impeller Parts Diagram

24" Snow Blower, 7hp Tecumseh

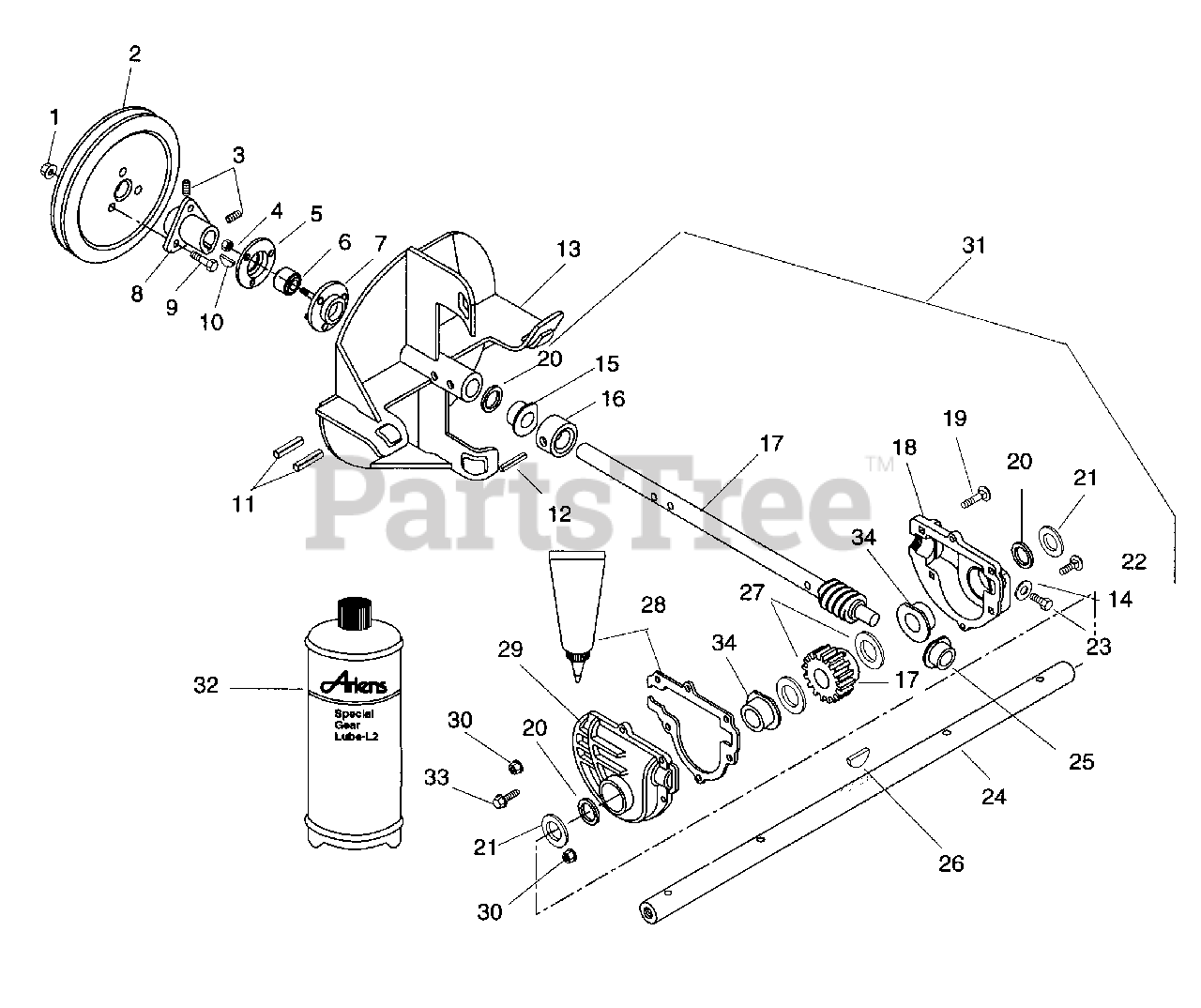

Gearcase And Impeller Parts Diagram

  • Title

1

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

2

Ariens 07316359

PLY-V 8.50 X 1.25 3BLT
(Superseded to 07316300)

Note: For models (026,027,029,302,303)

$46.99

$

Usually ships in 4-12 days

0

2

Ariens 07310359

PLY-V 7.0 X 1.25 3 BLT
(Superseded to 07310300)

Note: For model (025)

$

$

Not available

3

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.49

$

In Stock, only 2 left!

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 7

0

6

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 3 left!

0

7

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, only 2 left!

0

8

Ariens 00286200

HUB
(Superseded to 50202100)

$87.99

$

In Stock, only 2 left!

0

9

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.49

$

In Stock, only 2 left!

0

10

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.49

$

In Stock, Qty 9

0

11

Ariens 05800700

PIN-ROLL .250X1.25

$1.49

$

In Stock, Qty 18

0

12

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 12

0

13

Ariens 03204000

IMPELLER - 10"
(Superseded to 03204051)

$226.99

$

In Stock, only 1 left!

0

14

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, only 2 left!

0

15

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 10

0

16

Ariens 03210300

THRUST COLLAR

$63.99

$

Usually ships in 4-12 days

0

17

Ariens 53200100

SHAFT AND WORM GEAR ASSEMBLY

$122.99

$

In Stock, only 3 left!

0

18

Ariens 03235600

LS CASE HALF LH SMALL BORE
(Superseded to 53215700)

$91.99

$

Usually ships in 4-12 days

0

19

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$4.99

$

Usually ships in 4-12 days

0

20

Ariens 05618900

SEAL-OIL .750X1.375X.250

$12.99

$

In Stock, only 4 left!

0

21

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$1.99

$

In Stock, Qty 17

0

22

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.99

$

In Stock, Qty 19

0

24

Ariens 03203600

SHAFT, RAKE - 20"

Note: For model (025)

$

$

Not available

24

Ariens 03208200

SHAFT, RAKE - 24"

Note: For models (026,027,029,302,303)

$131.99

$

Usually ships in 4-12 days

0

25

Ariens 05511100

BSHG-FLG .500X.750X.750X1.000
(Superseded to 05520600)

$9.99

$

In Stock, only 2 left!

0

26

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.99

$

In Stock, only 3 left!

0

27

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$7.49

$

In Stock, only 1 left!

0

28

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$19.99

$

In Stock, Qty 7

0

29

Ariens 03235700

LS CASE HALF RH SMALL BORE
(Superseded to 53215600)

$

$

Not available

30

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 53206900

GEAR CASE - 20" - ALUMINUM

Note: For model (025)

$603.99

$

In Stock, only 1 left!

0

31

Ariens 53207100

GEAR CASE - 24" JD - ALUMINUM
(Superseded to 53208200)

Note: For models (026,027,029,302,303)

$597.99

$

Usually ships in 4-12 days

0

32

Ariens 00008100

BOTTLE ONLY-S.SCREEN.FOR NO.80

$

$

Not available

33

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$3.99

$

In Stock, Qty 6

0

34

Ariens 05530000

BSHG-FLG .75X1.00

$

$

Not available
