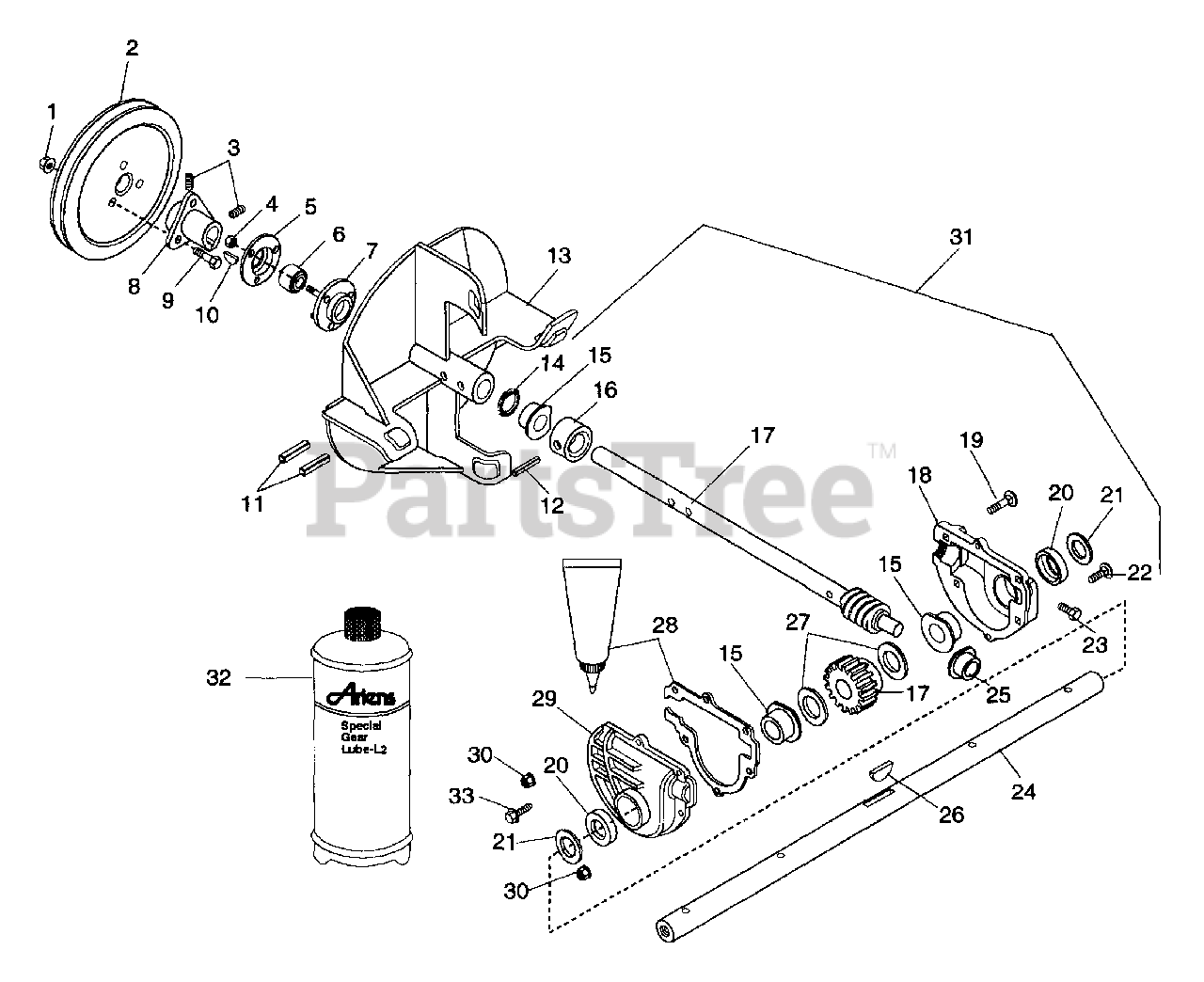

932029 (ST 824) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 - 005149) Gearcase And Impeller Parts Diagram

24" Snow Blower, 8hp Tecumseh

Gearcase And Impeller Parts Diagram

  • Title

1

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

Note: (Used Only On Model(s): 932025,932026,932027).

$2.49

$

In Stock, Qty 20+

0

2

Ariens 07316359

PLY-V 8.50 X 1.25 3BLT
(Superseded to 07316300)

Note: (Used Only On Model(s): 932026,932027).

$

$

Not available

2

Ariens 07310359

PLY-V 7.0 X 1.25 3 BLT
(Superseded to 07310300)

Note: (Used Only On Model(s): 932025).

$

$

Not available

2

Ariens 03235400

SHEAVE - IMPELLER

Note: (Used Only On Model(s): 932029).

$

$

Not available

3

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.99

$

In Stock, only 2 left!

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 01014200

BEARING FLANGE

$6.99

$

In Stock, Qty 8

0

6

Ariens 05406300

BRG-BALL .750X1.750X.50

$29.99

$

In Stock, Qty 11

0

7

Ariens 00301700

BEARING FLANGE

$18.99

$

In Stock, only 4 left!

0

8

Ariens 00286200

HUB
(Superseded to 50202100)

Note: (Used Only On Model(s): 932025,932026,932027).

$91.99

$

In Stock, only 2 left!

0

9

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

Note: (Used Only On Model(s): 932025,932026,932027).

$6.99

$

In Stock, only 1 left!

0

10

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.99

$

In Stock, Qty 20+

0

11

Ariens 05800700

PIN-ROLL .250X1.25

$1.99

$

In Stock, only 3 left!

0

12

Ariens 05804500

PIN-GRV .188X1.25 TP A

$11.99

$

In Stock, only 2 left!

0

13

Ariens 03204000

IMPELLER - 10"
(Superseded to 03204051)

$246.99

$

Usually ships in 4-12 days

0

14

Ariens 05613100

SEAL .750X1.00X.156

$11.99

$

Usually ships in 4-12 days

0

14

Ariens 05613500

SEAL .750X1.000X.150
(Superseded to 05604300)

$7.49

$

In Stock, only 2 left!

0

15

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$12.99

$

In Stock, Qty 5

0

16

Ariens 03210300

THRUST COLLAR

$67.99

$

In Stock, only 2 left!

0

17

Ariens 53200100

SHAFT AND WORM GEAR ASSEMBLY

$133.99

$

In Stock, Qty 5

0

18

Ariens 03219400

L. H. GEAR CASE
(Superseded to 53206700)

$

$

Not available

18

Ariens 03234500

GEAR CASE-LH-SMALL BORE
(Superseded to 53206700)

$

$

Not available

19

Ariens 06200100

BLT-RDHDSQNK .25-20X1.25 GR5PL
(Superseded to 06219700)

$5.49

$

Usually ships in 4-12 days

0

20

Ariens 05604300

SEAL .750X1.000X.125

$7.49

$

In Stock, only 2 left!

0

21

Ariens 06400900

WSHR-FL-STL.812X1.500X.139
(Superseded to 06439000)

$2.49

$

In Stock, Qty 20+

0

22

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$3.49

$

In Stock, only 3 left!

0

23

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 03203600

SHAFT, RAKE - 20"

Note: (Used Only On Model(s): 932025).

$

$

Not available

24

Ariens 03208200

SHAFT, RAKE - 24"

Note: (Used Only On Model(s): 932026,932027,932029).

$144.99

$

Usually ships in 4-12 days

0

25

Ariens 05511100

BSHG-FLG .500X.750X.750X1.000
(Superseded to 05520600)

$10.99

$

In Stock, only 2 left!

0

26

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$3.49

$

In Stock, Qty 10

0

27

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$7.99

$

In Stock, only 2 left!

0

28

Ariens 03212900

GASKET
(Superseded to 03203800)

$5.99

$

In Stock, Qty 12

0

28

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$20.99

$

In Stock, only 2 left!

0

29

Ariens 03219500

R. H. GEAR CASE
(Superseded to 53206700)

$

$

Not available

29

Ariens 03234600

GEAR CASE-RH-SMALL BORE
(Superseded to 53206700)

$

$

Not available

30

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.99

$

In Stock, Qty 20+

0

31

Ariens 53204900

GEAR CASE - 20" - ALUMINUM
(Superseded to 53206900)

Note: (Used Only On Model(s): 932025).

$603.99

$

Usually ships in 4-12 days

0

31

Ariens 53205000

GEAR CASE - 24" - ALUMINUM
(Superseded to 53208200)

Note: (Used Only On Model(s): 932026,932027,932029).

$652.99

$

Usually ships in 4-12 days

0

32

Ariens 00008100

BOTTLE ONLY-S.SCREEN.FOR NO.80

$

$

Not available

33

Ariens 07402700

SCR-TAP 10-24X.75 HWH PL TR
(Superseded to 07413000)

$5.49

$

In Stock, Qty 5

0
