932034 (ST 724) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 000101 & Above) Discharge Chute Parts Diagram

24" Snow Blower, 7hp Tecumseh

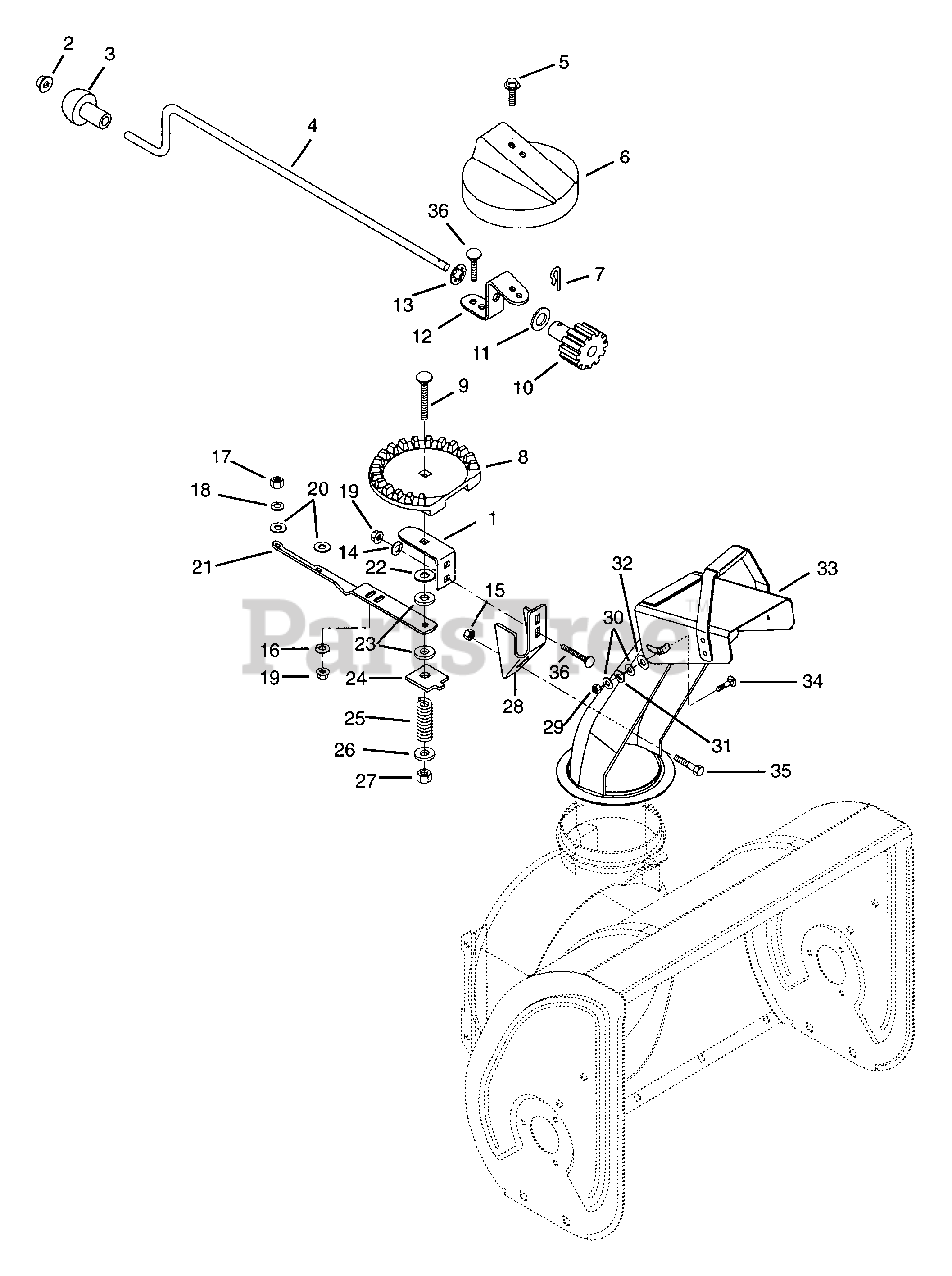

Discharge Chute Parts Diagram

  • Title

1

Ariens 03220700

GEAR STRAP
(Superseded to 03220751)

$27.99

$

Usually ships in 4-12 days

0

2

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, only 2 left!

0

3

Ariens 07508300

KNOB

$14.99

$

In Stock, only 2 left!

0

4

Ariens 03228600

CHUTE CRANK

$88.99

$

Usually ships in 4-12 days

0

5

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03223000

GEAR COVER

$13.99

$

In Stock, only 2 left!

0

7

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

8

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 9

0

9

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

10

Ariens 53204400

PINION GEAR W/BRACKET
(Superseded to 53214200)

Note: (Contains 11-13)

$50.99

$

In Stock, only 2 left!

0

11

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

12

Ariens 03220500

BRACKET-GEAR
(Superseded to 53214200)

$50.99

$

In Stock, only 2 left!

0

13

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 5

0

14

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

17

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

19

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

20

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 03237900

BRACE, CHUTE CONTROL

$

$

Not available

22

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

23

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

24

Ariens 03219000

FRICTION PLATE

$32.99

$

In Stock, only 2 left!

0

25

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

26

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03237700

CHUTE STRAP
(Superseded to 03237751)

$

$

Not available

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

Usually ships in 4-12 days

0

31

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

32

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 9

0

33

Ariens 53208400

CHUTE, DISCHARGE W/CAP & DECAL

$

$

Not available

34

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

35

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

36

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0
