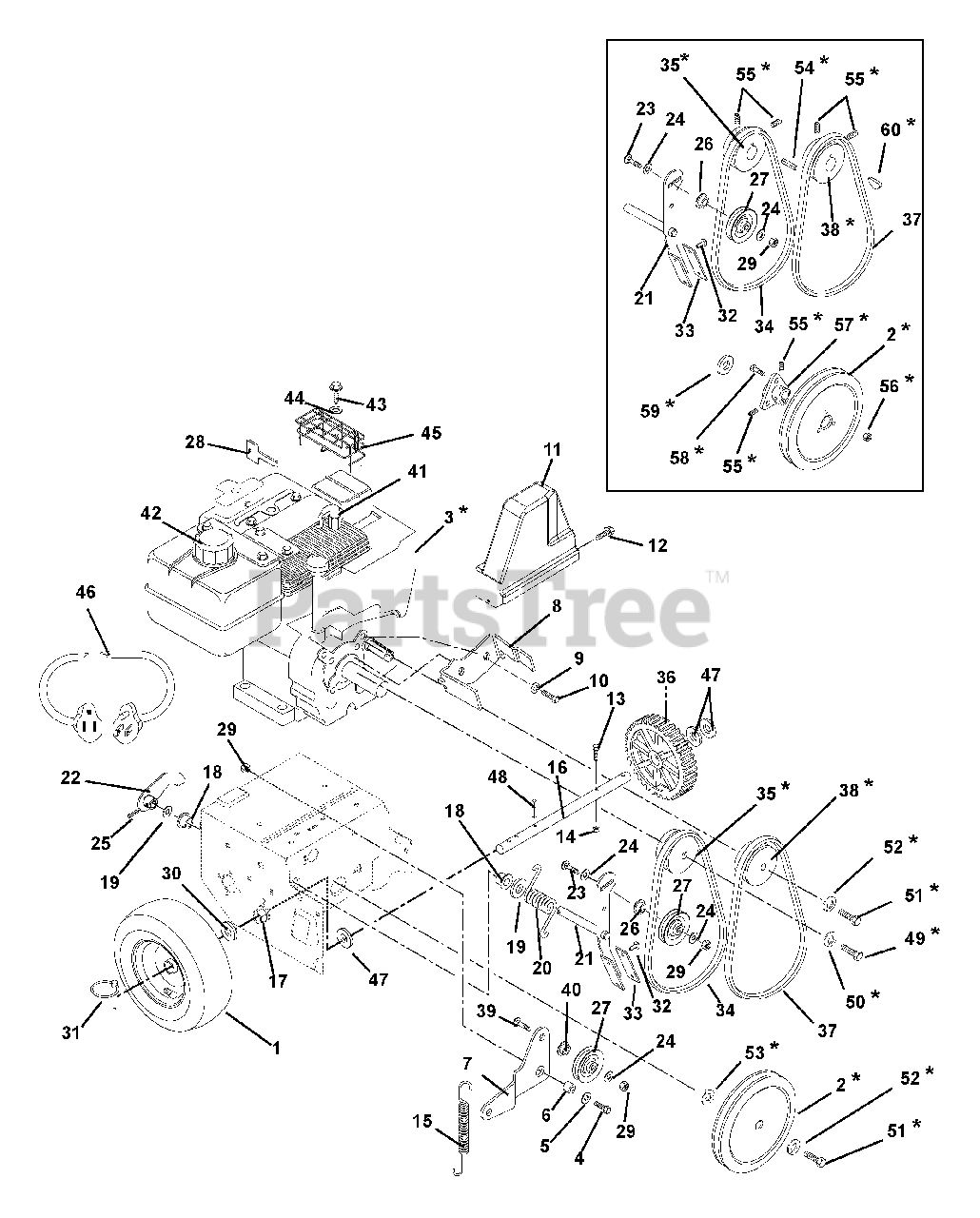

932037 (ST 724 E) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 004501 - 005962) Engine And Belt Drive Parts Diagram

24" Snow Blower, 7hp Tecumseh

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100012

WHEEL, 4.1-6

$

$

Not available

Ariens 07105000

TUBE

$12.99

$

In Stock, only 2 left!

0

Ariens 07121300

TIRE
(Superseded to 07100814)

$36.99

$

In Stock, only 4 left!

0

Ariens 07100011

WHEEL/TIRE ASSEMBLY 4.1-6X12.8

$

$

Not available

2

Ariens 00272400

PULLEY, 3L W/HUB, .625 X 8.0

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 07307400

PLY-V 8.0 X 1.25 3BLT SALEM

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

3

Ariens 08200014

ENGINE, 5HP TEC LH195SA RECOIL

Note: (507); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08267900

ENGINE, TECUMSEH HSSK50

Note: (507); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200015

ENGINE, 5.5HP TEC LH195SP 120V

Note: (038); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200016

ENGINE, 6HP TEC OH195SA RECOIL

Note: (508); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200025

ENGINE, OH195SA 6HP W/RECOIL

Note: (508); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200017

ENGINE, 6HP TEC OH195SA 120V

Note: (039); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200024

ENGINE, OH195SA 6HP W/120V

Note: (039); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200018

ENGINE, 7HP TEC OH195SA RECOIL

Note: (505); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08200019

ENGINE, 7HP TEC OH195SA 120V

Note: (037); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08261400

ENGINE, 7HP OHV TEC. - RECOIL

Note: (505); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

Ariens 08264800

ENGINE, 7HP OHV TEC. - 120V

Note: (037); See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

4

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 01035800

SPACER BUSHING .5 X .32 X .163

$6.49

$

Usually ships in 4-12 days

0

7

Ariens 03206900

IDLER ARM

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 03229051

FINGER, BELT

Note: (038, 507)

$65.99

$

Usually ships in 4-12 days

0

Ariens 03238151

FINGER, BELT

Note: (037, 039, 505, 508)

$40.99

$

Usually ships in 4-12 days

0

9

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

10

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

11

Ariens 03238000

COVER, BELT

$45.99

$

In Stock, only 3 left!

0

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 8

0

13

Ariens 05953000

BLT-HEX .25-20X1.75 GR8 YWZC

$9.99

$

In Stock, only 1 left!

0

14

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 08317200

SG-TENS .047X.44X3.37 WLD 1.47

$15.99

$

In Stock, only 2 left!

0

16

Ariens 00289300

AXLE SHAFT, COMPACT W/PIN LOCK

$79.99

$

Usually ships in 4-12 days

0

17

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, only 2 left!

0

18

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06439600

WSHR-FL-STL .520X.810X.033YWZC

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 08322000

SG-TORS .148X1.0X1.53

$15.99

$

Usually ships in 4-12 days

0

21

Ariens 53205100

CLUTCH ARM W/BRAKE PAD

Note: (Includes items 32 & 33)

$65.99

$

Usually ships in 4-12 days

0

22

Ariens 03231951

ARM-CLUTCH

$79.99

$

Usually ships in 4-12 days

0

23

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

24

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 05802600

PIN-ROLL .156X.88

$2.49

$

In Stock, Qty 5

0

26

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, Qty 12

0

27

Ariens 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, only 3 left!

0

28

Ariens 07532000

KEY, PUSH/PULL - TECUMSEH
(Superseded to 07500108)

$8.49

$

In Stock, Qty 14

0

29

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$1.49

$

In Stock, Qty 6

0

31

Ariens 07053700

PIN-LOK .31X1.75

$2.99

$

In Stock, only 4 left!

0

32

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

Note: (Included with item 21)

$1.49

$

In Stock, Qty 11

0

33

Ariens 03229100

BRAKE LINING

Note: (Included with item 21)

$16.99

$

In Stock, only 2 left!

0

34

Ariens 07219100

BELT,4L TO BE REPLACED07200021
(Superseded to 07200021)

Note: (038, 507)

$46.99

$

In Stock, only 4 left!

0

Ariens 07232500

V-BELT, 4L-RAW EDGE

Note: (037, 039, 505, 508)

$29.99

$

In Stock, only 4 left!

0

35

Ariens 00279100

SHEAVE, ENGINE

Note: (038, 507) See Serial Number Tables 1 & 2 for serial number range.

$121.99

$

Usually ships in 4-12 days

0

Ariens 00279000

SHEAVE, ENGINE OH195SA

Note: (037, 039, 505, 508) See Serial Number Tables 1 & 2 for serial number range.

$169.99

$

Usually ships in 4-12 days

0

Ariens 03225000

SHEAVE-ENGINE

Note: (038, 507) See Serial Number Tables 1 & 2 for serial number range.

$

$

Not available

Ariens 03229200

SHEAVE - ENGINE

Note: (037, 039, 505, 508) See Serial Number Tables 1 & 2 for serial number range.

$131.99

$

Usually ships in 4-12 days

0

36

Ariens 03226000

GEAR

$52.99

$

In Stock, only 2 left!

0

37

Ariens 07210600

V-BELT, 3L-COGGED

Note: (038, 507)

$36.99

$

In Stock, Qty 11

0

Ariens 07210700

V-BELT, 3L-COGGED

Note: (037, 039, 505, 508)

$34.99

$

In Stock, Qty 20+

0

38

Ariens 00279200

SHEAVE, CAMSHAFT OH/LH195SA
(Superseded to 04664367)

Note: See Serial Number Tables 1 & 2 for serial number range.

$68.99

$

Usually ships in 4-12 days

0

Ariens 03228400

SHEAVE - CAMSHAFT

Note: See Serial Number Tables 1 & 2 for serial number range.

$107.99

$

Usually ships in 4-12 days

0

39

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.99

$

Usually ships in 4-12 days

0

40

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

41

Ariens 21533400

PLUG, SPARK

Note: (038, 507)

$3.99

$

In Stock, Qty 20+

0

Ariens 21533500

PLUG, SPARK

Note: (037, 039, 505, 508)

$3.99

$

In Stock, Qty 20+

0

42

Ariens 07531800

CAP, FUEL - TECUMSEH

$20.99

$

In Stock, only 2 left!

0

43

Ariens 07413600

SCR-TAP 10-16X.75 YWZC

Note: (507)

$

$

Not available

44

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (507)

$1.49

$

Usually ships in 4-12 days

0

45

Ariens 03227000

MUFFLER GUARD 5 HP

Note: (507)

$

$

Not available

46

Ariens 02483100

CORD, ELECTRIC START CORD 120V

Note: (037, 038, 039)

$39.99

$

In Stock, only 1 left!

0

47

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

48

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

49

Ariens 05900009

BLT-HEX .38-24X1.0 GR5 YZ EP80
(Superseded to 05960300)

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$2.99

$

In Stock, only 1 left!

0

50

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$1.49

$

In Stock, Qty 18

0

51

Ariens 05900010

BLT-HEX .25-28X.75 GR5 YZ EP80
(Superseded to 05952300)

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$2.49

$

Usually ships in 4-12 days

0

52

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$0.99

$

Usually ships in 4-12 days

0

53

Ariens 06400007

WSHR-WAVE .69X.84X.011

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$2.49

$

In Stock, only 1 left!

0

54

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$1.99

$

In Stock, Qty 5

0

55

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$3.49

$

In Stock, only 2 left!

0

56

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$1.99

$

In Stock, Qty 20+

0

57

Ariens 03205000

HUB

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

58

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$6.49

$

In Stock, only 3 left!

0

59

Ariens 06417300

WSHR, THRUST .625X1.125X.063

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$9.99

$

Usually ships in 4-12 days

0

60

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

Note: See "Engine And Belt Drive Serial Number Table Part 1 & 2" for serial number range.

$2.99

$

In Stock, only 2 left!
