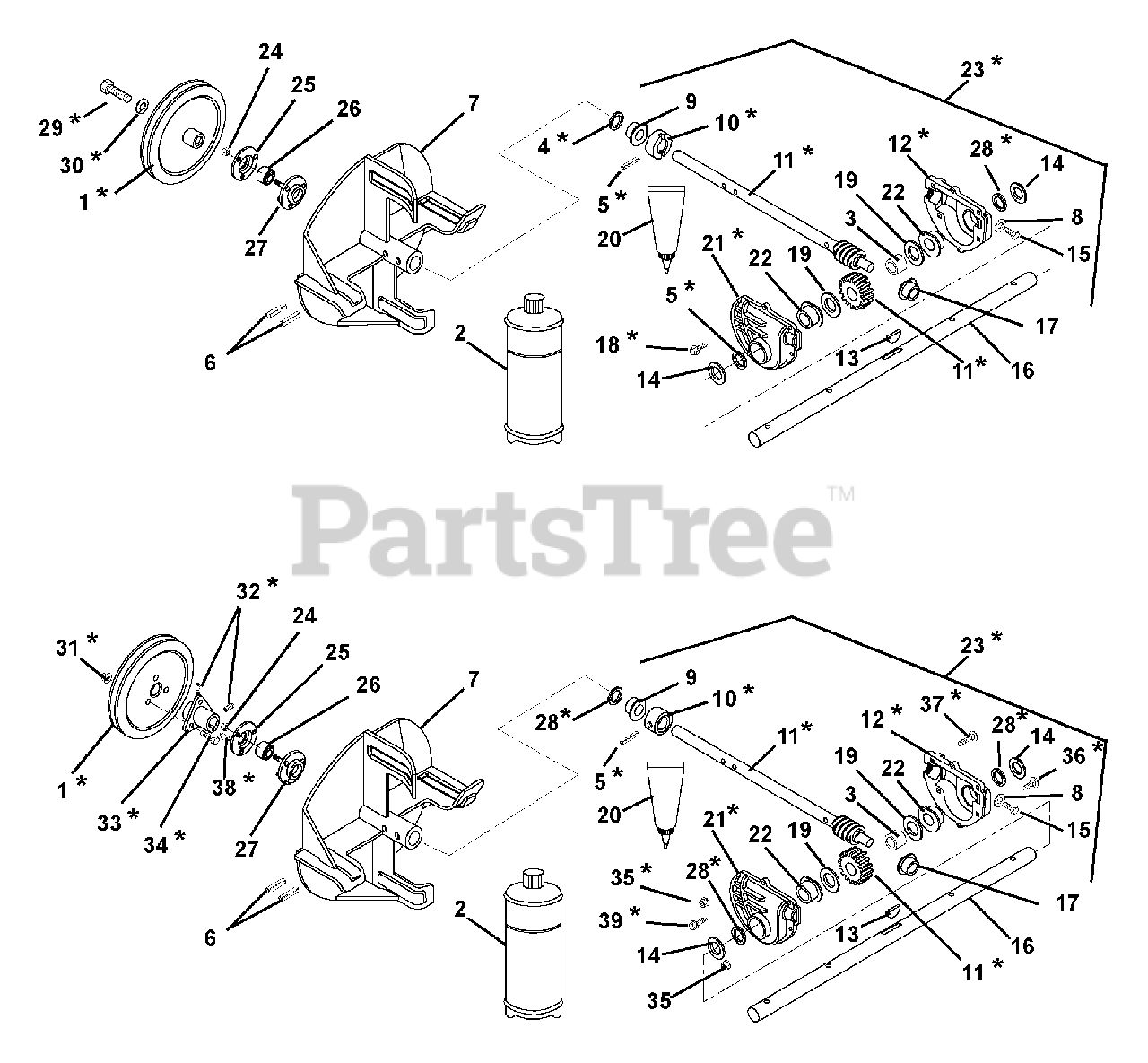

932037 (ST 724 E) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 004501 - 005962) Gear Case And Impeller Parts Diagram

24" Snow Blower, 7hp Tecumseh

Gear Case And Impeller Parts Diagram

  • Title

1

Ariens 00187000

PULLEY, 4L W/HUB, .75 X 8.5
(Superseded to 52001800)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$80.99

$

In Stock, only 1 left!

0

1

Ariens 07316300

PLY-V 8.50 X 1.25 3BLT

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

2

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$29.99

$

In Stock, Qty 20+

0

3

Ariens 05531200

BSHG-SLV .755X1.500X.442

$

$

Not available

4

Ariens 05600004

SEAL-OIL.748X1.378X.276 RBR OD

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$9.49

$

In Stock, only 2 left!

0

5

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$7.99

$

In Stock, only 2 left!

0

5

Ariens 05804500

PIN-GRV .188X1.25 TP A

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$11.99

$

In Stock, only 2 left!

0

6

Ariens 05800700

PIN-ROLL .250X1.25

$1.99

$

In Stock, only 3 left!

0

7

Ariens 03204051

IMPELLER - 10"

$246.99

$

Usually ships in 4-12 days

0

8

Ariens 06442500

WSHR-FIBER .437X.656X.032

$1.49

$

In Stock, Qty 6

0

9

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$12.99

$

In Stock, Qty 5

0

10

Ariens 00272100

THRUST COLLAR, .75" ID

$7.49

$

In Stock, only 2 left!

0

10

Ariens 03210300

THRUST COLLAR

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$67.99

$

In Stock, only 2 left!

0

11

Ariens 53212500

SHAFT AND WORM GEAR ASSEMBLY

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$127.99

$

In Stock, only 2 left!

0

11

Ariens 53200100

SHAFT AND WORM GEAR ASSEMBLY

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$133.99

$

In Stock, Qty 5

0

12

Ariens 00291100

GEARCASE CASTING, MACHINED LH
(Superseded to 52004900)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$64.99

$

Usually ships in 4-12 days

0

12

Ariens 02470600

CASE, GEAR-LH-LARGE BORE-ALUM.
(Superseded to 52003300)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$117.99

$

In Stock, only 3 left!

0

13

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$3.49

$

In Stock, Qty 10

0

14

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$2.49

$

In Stock, Qty 20+

0

15

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$5.49

$

In Stock, only 2 left!

0

16

Ariens 00263000

SHAFT, RAKE - 24" (.750 DIA)

Note: (037, 039, 505, 508)

$92.99

$

In Stock, only 1 left!

0

16

Ariens 00260500

SHAFT, RAKE - 20" (.750 DIA)

Note: (038, 507)

$78.99

$

Usually ships in 4-12 days

0

17

Ariens 05520600

BSHG-FLG .502X1X.750

$10.99

$

In Stock, only 2 left!

0

18

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$7.99

$

In Stock, only 2 left!

0

20

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$20.99

$

In Stock, only 2 left!

0

21

Ariens 00291200

GEARCASE CASTING, MACHINED RH
(Superseded to 52003300)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$117.99

$

In Stock, only 3 left!

0

21

Ariens 02470700

CASE, GEAR-RH-LARGE BORE-ALUM.
(Superseded to 52003300)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$117.99

$

In Stock, only 3 left!

0

22

Ariens 05531100

BSHG-FLG .753X1.127X.500X1.501

$9.99

$

In Stock, only 2 left!

0

23

Ariens 53212700

GEARCASE, 24" ALUM, SMALL CD

Note: (contains 3-5,8-13,15-22,28) (037, 039, 505, 508); See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$298.99

$

In Stock, only 2 left!

0

23

Ariens 53212600

GEARCASE, 20" ALUM, SMALL CD

Note: (contains 3-5,8-13,15-22,28) (038, 507); See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$302.99

$

In Stock, only 1 left!

0

23

Ariens 53213900

GEAR CASE - ALUMINUM - 24"

Note: (contains 3,5,8-13,15-17,19-22,28,35,37,39) (037, 039, 505, 508); See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

23

Ariens 53214000

GEAR CASE - ALUMINUM - 20"

Note: (contains 3,5,8-13,15-17,19-22,28,35,37,39) (038, 507); See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$

$

Not available

24

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 01014200

BEARING FLANGE

$6.99

$

In Stock, Qty 8

0

26

Ariens 05406300

BRG-BALL .750X1.750X.50

$29.99

$

In Stock, Qty 11

0

27

Ariens 00301700

BEARING FLANGE

$18.99

$

In Stock, only 4 left!

0

28

Ariens 05618900

SEAL-OIL .750X1.375X.250

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$13.99

$

In Stock, Qty 7

0

28

Ariens 05618900

SEAL-OIL .750X1.375X.250

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$13.99

$

In Stock, Qty 7

0

29

Ariens 05900012

BLT-HEX .31-24X1.0 GR5 YZ EP80
(Superseded to 05947300)

$2.49

$

In Stock, Qty 20+

0

30

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$3.99

$

In Stock, only 1 left!

0

33

Ariens 50202100

HUB ASSEMBLY

Note: (Includes Item 32)

$91.99

$

In Stock, only 2 left!

0

34

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$6.99

$

In Stock, only 3 left!

0

35

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$1.99

$

In Stock, Qty 20+

0

36

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$2.99

$

In Stock, only 3 left!

0

37

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$5.49

$

Usually ships in 4-12 days

0

38

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$3.99

$

In Stock, Qty 20+

0

39

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

Note: See "Gear Case And Impeller Serial Number Table Part 1 & 2" for serial number range.

$5.49

$

In Stock, Qty 5
