932037 (ST 724 E) - Ariens 24" Snow Blower, 7hp Tecumseh (SN: 004501 - 005962) Handlebars And Controls Parts Diagram

24" Snow Blower, 7hp Tecumseh

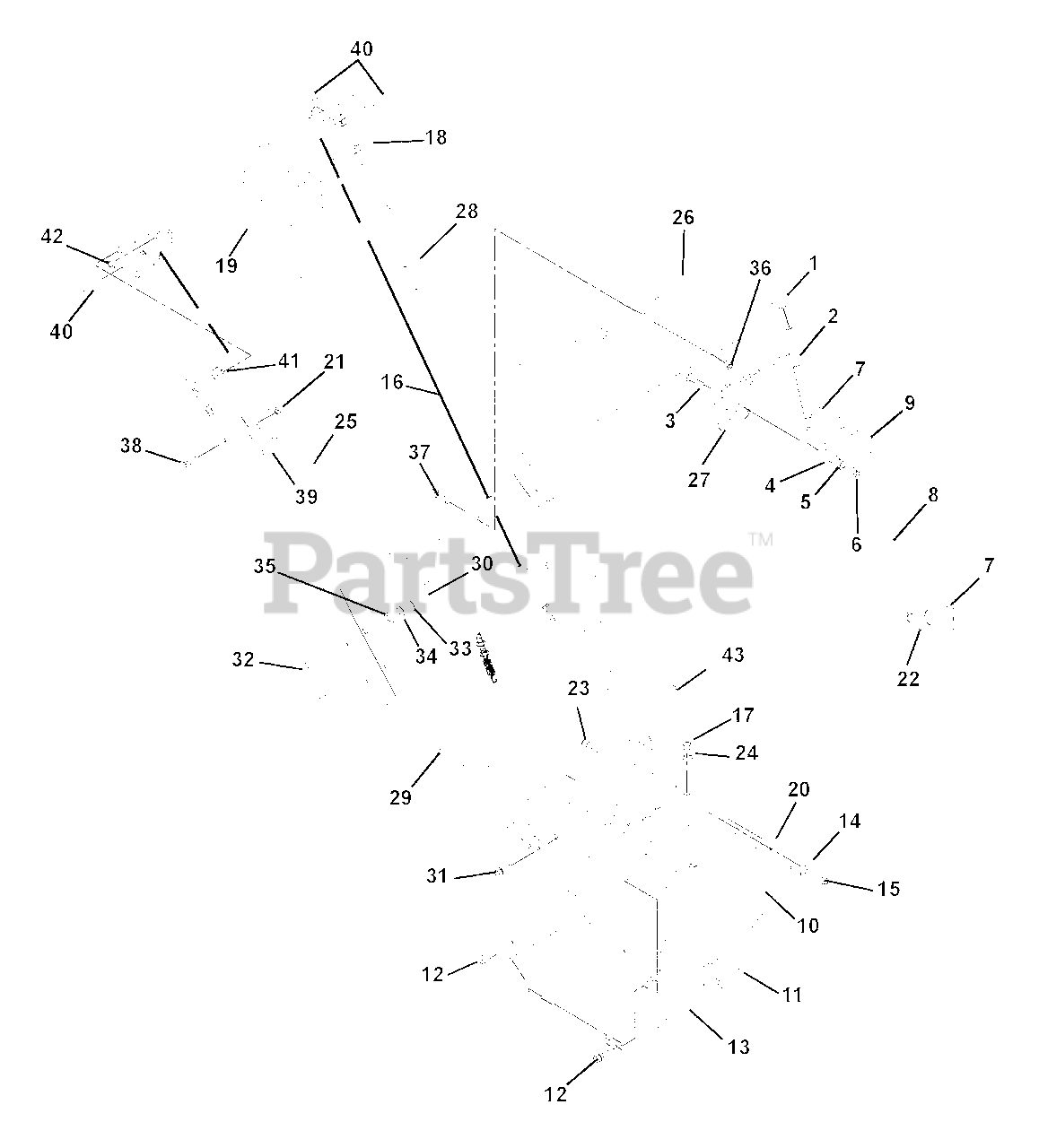

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, only 2 left!

0

2

Ariens 03247900

WMT, SHIFT LEVER

$92.99

$

Usually ships in 4-12 days

0

3

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 9

0

5

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 03247600

ROD, SHIFT

$65.99

$

Usually ships in 4-12 days

0

9

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

10

Ariens 00297059

FRAME, COMPACT SNOW

$

$

Not available

11

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$21.99

$

Usually ships in 4-12 days

0

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 8

0

13

Ariens 03232459

COVER BOTTOM

$53.99

$

In Stock, only 4 left!

0

14

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

16

Ariens 06948900

CABLE, TRACTION

$21.99

$

In Stock, only 2 left!

0

17

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

18

Ariens 03247451

BAIL, TRACTION

$

$

Not available

19

Ariens 03247351

BAIL, AUGER

$

$

Not available

20

Ariens 03236300

BELT FINGER LOWER

$6.49

$

Usually ships in 4-12 days

0

21

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

23

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

24

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

25

Ariens 06947600

CABLE, AUGER

$65.99

$

Usually ships in 4-12 days

0

26

Ariens 53213000

CONTROL PANEL W/DECAL

$

$

Not available

27

Ariens 02496251

BRACKET, LEVER SHIFTER

$

$

Not available

28

Ariens 53212000

HANDLEBAR W/DECAL

$

$

Not available

29

Ariens 03247251

HANDLEBAR, LOWER

$

$

Not available

30

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

31

Ariens 07047100

BLT SERHFWH .31-18X.62 GR5YWZC

$1.99

$

In Stock, Qty 5

0

32

Ariens 03802700

J BOLT .31-18

$29.99

$

Usually ships in 4-12 days

0

33

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

34

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

35

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

36

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

37

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 5

0

38

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, only 2 left!

0

39

Ariens 03804851

ANCHOR, CABLE

$

$

Not available

40

Ariens 07517000

CAP, VINYL, .25 ID

$3.99

$

In Stock, Qty 10

0

41

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 9

0

42

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

Usually ships in 4-12 days

0

43

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0
