932039 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 013782 - 014350)

24" Snow Blower, 6hp Tecumseh

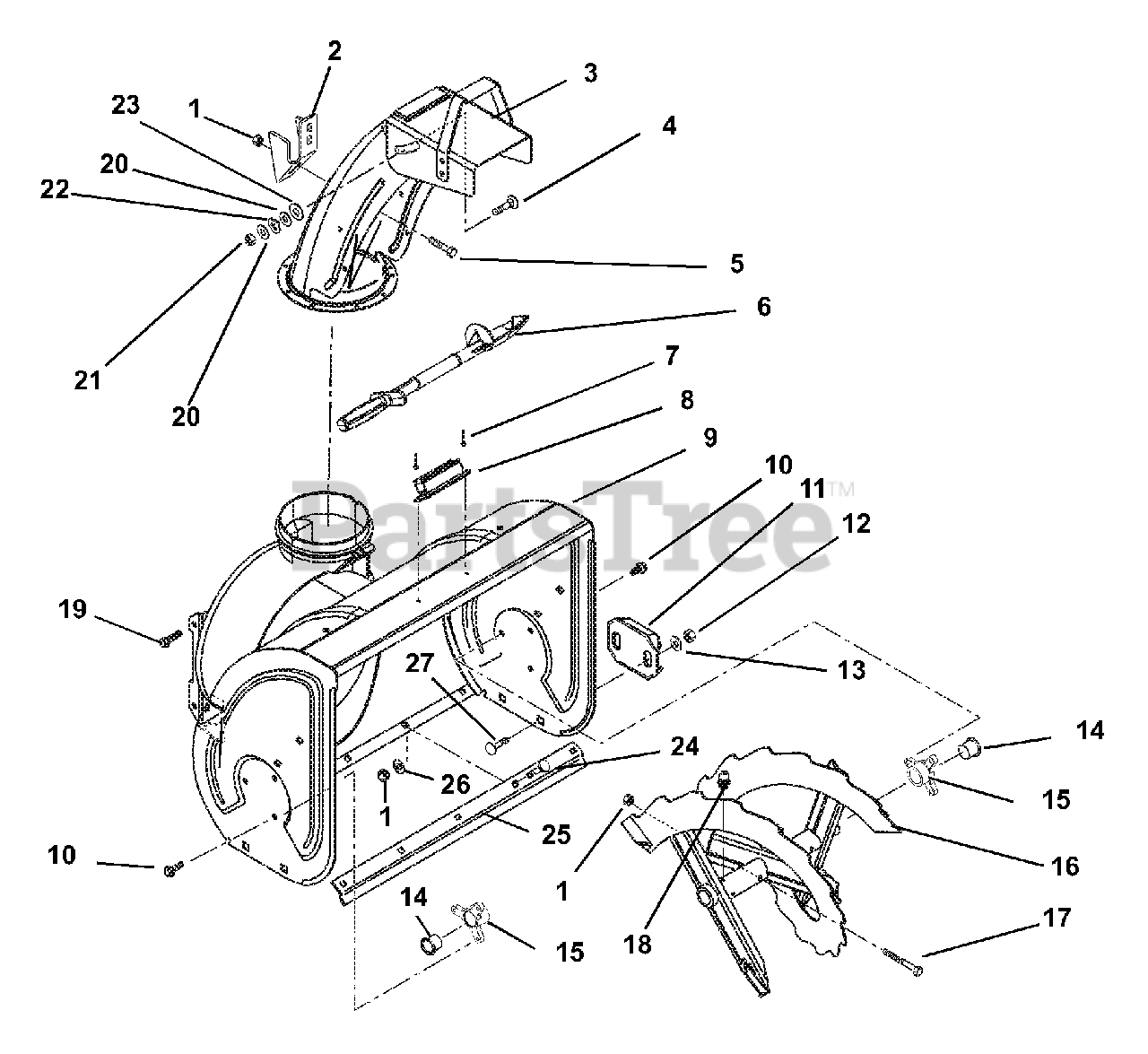

932039 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 013782 - 014350) > Parts Diagrams (7) > Auger And Chute

  • Title
06529700

1

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

Note: (037, 039, 505, 507, 508)

OEM Warranty Repair Part for Ariens

Not available

06529700

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

Note: (038)

OEM Warranty Repair Part for Ariens

Not available

03237751

2

CHUTE STRAP

Part# 03237751

Note: (037, 039, 505, 507, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

53208400

3

CHUTE, DISCHARGE W/CAP & DECAL

Part# 53208400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $128.71

06220800

4

@BLT-RHDSSQNK .31-18X.75 G5YZ

Part# 06220800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05947900

5

@BLT-HEX .25-20X.50 GR5 YWZC

Part# 05947900

Note: (037, 039, 505, 507, 508)

OEM Warranty Repair Part for Ariens

Not available

00170200

6

DEVICE, SNOW CLEAN OUT

Part# 00170200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.61

06813600

7

RVT-POP .187X.45 DOME SS FBF64

Part# 06813600 (Superseded to 06800028)

OEM Warranty Repair Part for Ariens

Not available

00170300

8

MOUNT, SNOW CLEAN OUT

Part# 00170300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

53213300

9

BLOWER HOUSING, 24"

Part# 53213300

Note: (037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $201.18

53212800

BLOWER HOUSING, 20"

Part# 53212800

Note: (038, 507)

OEM Warranty Repair Part for Ariens

Not available

07412000

10

@SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

02483859

11

SKID SHOE, REVERSIBLE - ORANGE

Part# 02483859

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

06529600

12

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06435700

13

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05500012

14

BSHG-FLG, SPLIT NYLINER .75"ID

Part# 05500012 (Superseded to 05500109)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

00275200

15

BUSHING, RAKE SHAFT .75"

Part# 00275200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

53213100

16

RAKE, 24" RH, BLK SERR W/ZERK

Part# 53213100

Note: (Includes Items 18) (037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.63

53213200

RAKE, 24" LH, BLK SERR W/ZERK

Part# 53213200

Note: (Includes Items 18) (037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

53212300

AUGER, 20" RH, BLK SERR W/ZERK

Part# 53212300

Note: (Includes Items 18) (038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $110.63

53212400

AUGER, LH 20", BLK SERR W/ZERK

Part# 53212400

Note: (Includes Items 18) (038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.33

53200500

17

SHEAR BOLT WITH NUT

Part# 53200500

Note: (Includes Items 1)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.42

07061300

18

ZERK,FITTING .25X.125 DRIVE IN

Part# 07061300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07412900

19

@SCR-TAP .38-16X.50 HWH TR YWZ

Part# 07412900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06437200

20

@WSHR-FL-STL.344X.688X.065YWZC

Part# 06437200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06529800

21

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01320200

22

WAVE WASHER .390X.655X.110

Part# 01320200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06416800

23

WSHR-PLASTIC .390X.875X.062

Part# 06416800 (Superseded to 06433600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.42

06214300

24

BLT-RDHDSQSHNK.25-20X.50 YWZC

Part# 06214300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

03208159

25

SCRAPER BLADE

Part# 03208159

Note: (037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

03206759

SCRAPER BLADE, 20"

Part# 03206759 (Superseded to 03206700)

Note: (038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

06437300

26

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06211800

27

BLT-RHHDSQSHNK .38-16X.75 G2YZ

Part# 06211800 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18
