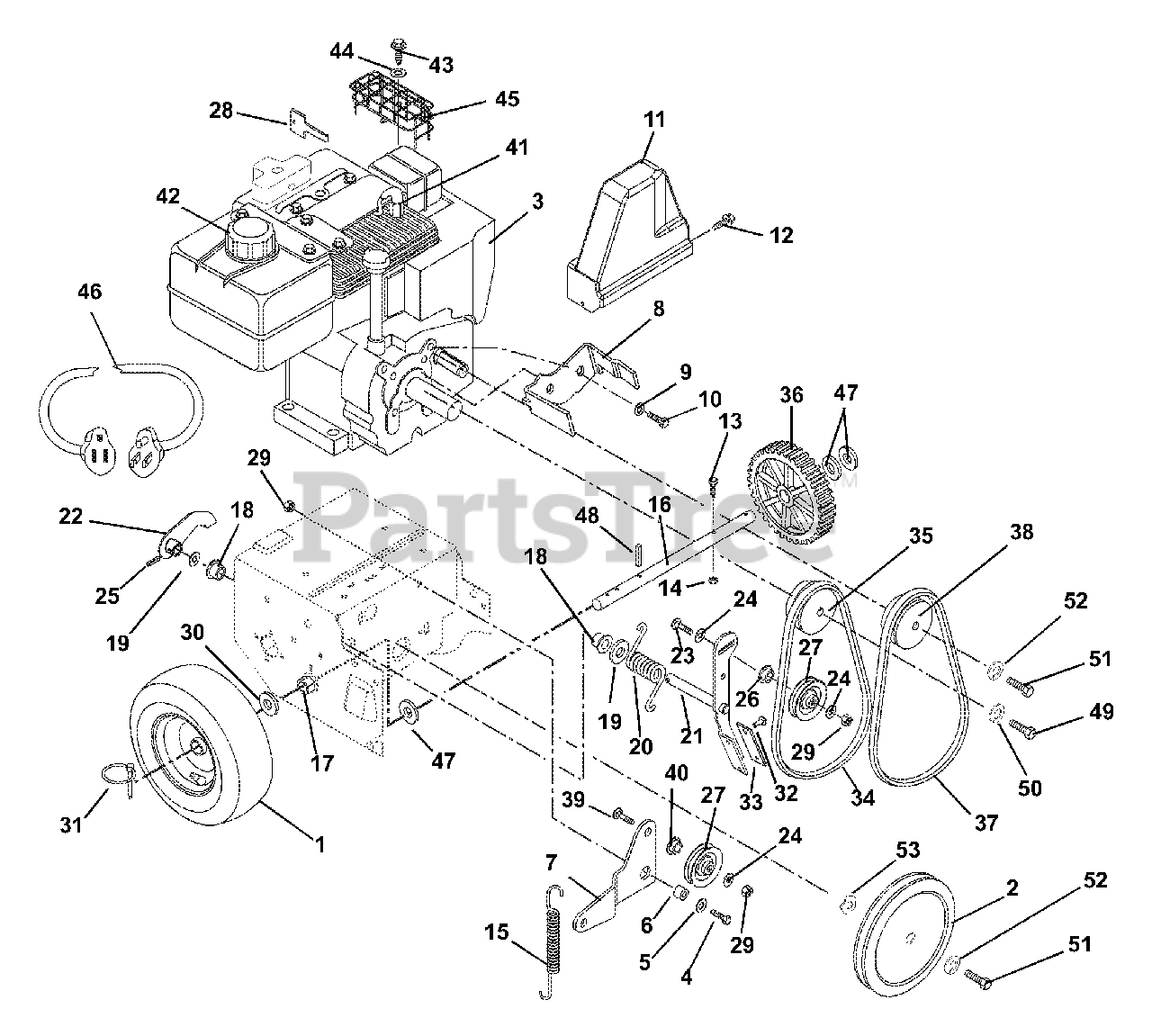

932039 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 013782 - 014350)

24" Snow Blower, 6hp Tecumseh

932039 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 013782 - 014350) > Parts Diagrams (7) > Engine And Belt Drive

  • Title
07100012

1

WHEEL, 4.1-6

Part# 07100012

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $32.06

07105000

1

TUBE

Part# 07105000

OEM Warranty Repair Part for Ariens

Not available

07121300

1

TIRE

Part# 07121300 (Superseded to 07160000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

07100011

1

WHEEL/TIRE ASSEMBLY 4.1-6X12.8

Part# 07100011

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $95.25

00272400

2

PULLEY, 3L W/HUB, .625 X 8.0

Part# 00272400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $83.79

08200014

3

ENGINE, 5HP TEC LH195SA RECOIL

Part# 08200014

Note: (932507)

OEM Warranty Repair Part for Ariens

Not available

08200015

3

ENGINE, 5.5HP TEC LH195SP 120V

Part# 08200015

Note: (932038)

OEM Warranty Repair Part for Ariens

Not available

08200016

3

ENGINE, 6HP TEC OH195SA RECOIL

Part# 08200016

Note: (932508)

OEM Warranty Repair Part for Ariens

Not available

08200017

3

ENGINE, 6HP TEC OH195SA 120V

Part# 08200017

Note: (932039)

OEM Warranty Repair Part for Ariens

Not available

08200018

3

ENGINE, 7HP TEC OH195SA RECOIL

Part# 08200018

Note: (932505)

OEM Warranty Repair Part for Ariens

Not available

08200019

3

ENGINE, 7HP TEC OH195SA 120V

Part# 08200019

Note: (932037)

OEM Warranty Repair Part for Ariens

Not available

05947000

4

@BLT-HEX .31-18X.75 GR5 YWZC

Part# 05947000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06435700

5

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01035800

6

SPACER BUSHING .5 X .32 X .163

Part# 01035800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

03206900

7

IDLER ARM

Part# 03206900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

03229051

8

FINGER, BELT

Part# 03229051

Note: (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.27

03238151

8

FINGER, BELT

Part# 03238151

Note: (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.50

06307400

9

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05947300

10

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

03238000

11

COVER, BELT

Part# 03238000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $40.19

07411600

12

@SCR-TAP .25-20X.37 HWH YWZ TR

Part# 07411600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05953000

13

BLT-HEX .25-20X1.75 GR8 YWZC

Part# 05953000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.03

06529700

14

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

08317200

15

SG-TENS .047X.44X3.37 WLD 1.47

Part# 08317200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

00289300

16

AXLE SHAFT, COMPACT W/PIN LOCK

Part# 00289300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

05521600

17

BSHG-FLG .750X.873HEXX.53X1.18

Part# 05521600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05502100

18

BSHG-FLG .500X.625X.500X.750

Part# 05502100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

06439600

19

WSHR-FL-STL .520X.810X.033YWZC

Part# 06439600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

08322000

20

SG-TORS .148X1.0X1.53

Part# 08322000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

53205100

21

CLUTCH ARM W/BRAKE PAD

Part# 53205100

Note: (Includes items 32 & 33)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $55.29

03231951

22

ARM-CLUTCH

Part# 03231951

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06219200

23

@BLT-RDHDSQNK .31-18X1.25 G5YZ

Part# 06219200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06435700

24

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05802600

25

PIN-ROLL .156X.88

Part# 05802600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.42

01213100

26

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

02457400

27

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

07532000

28

KEY, PUSH/PULL - TECUMSEH

Part# 07532000 (Superseded to 07500108)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06529800

29

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06441400

30

WSHR-FL-STL.754X1.125X.062YWZC

Part# 06441400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07053700

31

PIN-LOK .31X1.75

Part# 07053700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06806700

32

RVT-TBLR .187X.437 RH ST PL

Part# 06806700

Note: (Included with item 21)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03229100

33

BRAKE LINING

Part# 03229100

Note: (Included with item 21)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

07219100

34

BELT,4L TO BE REPLACED07200021

Part# 07219100 (Superseded to 07200021)

Note: (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

07232500

34

V-BELT, 4L-RAW EDGE

Part# 07232500

Note: (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

00279100

35

SHEAVE, ENGINE

Part# 00279100

Note: (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

00279000

35

SHEAVE, ENGINE OH195SA

Part# 00279000

Note: (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $148.41

03226000

36

GEAR

Part# 03226000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $51.37

07210600

37

V-BELT, 3L-COGGED

Part# 07210600

Note: (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

07210700

37

V-BELT, 3L-COGGED

Part# 07210700

Note: (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

00279200

38

SHEAVE, CAMSHAFT OH/LH195SA

Part# 00279200 (Superseded to 04664367)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06221800

39

BLT-RDHDSQNK .31-18X1.0 SHTYZ

Part# 06221800 (Superseded to 06200007)

OEM Warranty Repair Part for Ariens

Not available

01305900

40

BSHG, FLG .325X.499X.26X.88

Part# 01305900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

21533400

41

PLUG, SPARK

Part# 21533400

Note: (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.02

21533500

41

PLUG, SPARK

Part# 21533500

Note: (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.99

07531800

42

CAP, FUEL - TECUMSEH

Part# 07531800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07413600

43

SCR-TAP 10-16X.75 YWZC

Part# 07413600

Note: (932507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06442700

44

@WSHR-FL-STL.219X.50X.049 YWZC

Part# 06442700

Note: (932507)

OEM Warranty Repair Part for Ariens

Not available

03227000

45

MUFFLER GUARD 5 HP

Part# 03227000

Note: (932507)

OEM Warranty Repair Part for Ariens

Not available

02483100

46

CORD, ELECTRIC START CORD 120V

Part# 02483100

Note: (932037, 038, 039)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

06444200

47

WSHR-FL-STL .755X1.25X.125 YZ

Part# 06444200 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

05800300

48

PIN-ROLL .188X1.25

Part# 05800300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05900009

49

BLT-HEX .38-24X1.0 GR5 YZ EP80

Part# 05900009 (Superseded to 05960300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06308800

50

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05900010

51

BLT-HEX .25-28X.75 GR5 YZ EP80

Part# 05900010 (Superseded to 05952300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06308000

52

WSHR-LK .250X.077 HVY YWZC

Part# 06308000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400007

53

WSHR-WAVE .69X.84X.011

Part# 06400007

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40
