932039 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 013782 - 014350)

24" Snow Blower, 6hp Tecumseh

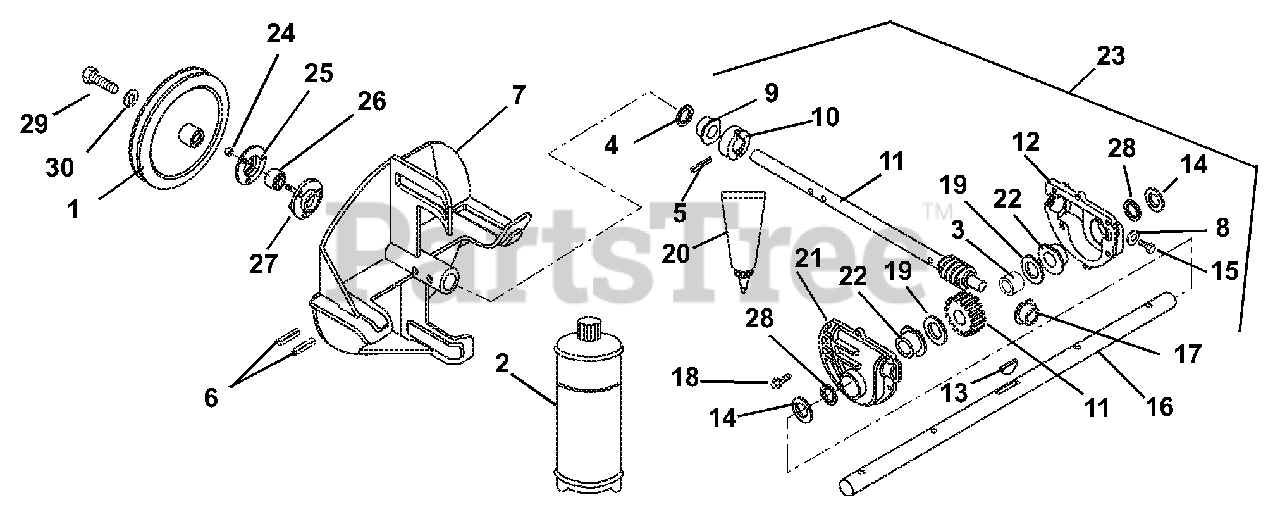

932039 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 013782 - 014350) > Parts Diagrams (7) > Gear Case And Impeller

  • Title
00187000

1

PULLEY, 4L W/HUB, .75 X 8.5

Part# 00187000 (Superseded to 52001800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

00008000

2

ARIENS 16 OZ.BOTTLE OF L2 LUBE

Part# 00008000 (Superseded to 00068800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

05531200

3

BSHG-SLV .755X1.500X.442

Part# 05531200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

05600004

4

SEAL-OIL.748X1.378X.276 RBR OD

Part# 05600004

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05804900

5

@PIN-GRV .188X1.25 TP E ALLOY

Part# 05804900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05800700

6

PIN-ROLL .250X1.25

Part# 05800700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

03204051

7

IMPELLER - 10"

Part# 03204051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $159.82

06442500

8

WSHR-FIBER .437X.656X.032

Part# 06442500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05511200

9

BSHG-FLG .750X1.000X.750X1.250

Part# 05511200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00272100

10

THRUST COLLAR, .75" ID

Part# 00272100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

53212500

11

SHAFT AND WORM GEAR ASSEMBLY

Part# 53212500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $89.38

00291100

12

GEARCASE CASTING, MACHINED LH

Part# 00291100 (Superseded to 52004900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

06601400

13

KEY-WDRF .188X.625X.25 SAE 61

Part# 06601400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06439000

14

@WSHR-FL-STL.812X1.50X.135YWZC

Part# 06439000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07417000

15

SCR-TAP .38-16X.75 ROLOK YZ WX

Part# 07417000 (Superseded to 07400110)

OEM Warranty Repair Part for Ariens

Not available

00263000

16

SHAFT, RAKE - 24" (.750 DIA)

Part# 00263000

Note: (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $73.73

00260500

16

SHAFT, RAKE - 20" (.750 DIA)

Part# 00260500

Note: (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $55.29

05520600

17

BSHG-FLG .502X1X.750

Part# 05520600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

07412400

18

@SCR-TAP .25-20X1.00 HWH TR YZ

Part# 07412400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06416100

19

WSHR-HDND-THRST .755X1.40X.062

Part# 06416100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00031700

20

LOCTITE 518 GASKET--6ML TUBE

Part# 00031700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

00291200

21

GEARCASE CASTING, MACHINED RH

Part# 00291200 (Superseded to 52003300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $89.38

05531100

22

BSHG-FLG .753X1.127X.500X1.501

Part# 05531100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

53212700

23

GEARCASE, 24" ALUM, SMALL CD

Part# 53212700

Note: (contains 3-5,8-13,15-22,28) (932037, 039, 505, 508)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $201.18

53212600

23

GEARCASE, 20" ALUM, SMALL CD

Part# 53212600

Note: (contains 3-5,8-13,15-22,28) (932038, 507)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $221.31

06529700

24

@NUT-LK-CTR .25-20 YWZC

Part# 06529700

OEM Warranty Repair Part for Ariens

Not available

01014200

25

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

05406300

26

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

00301700

27

BEARING FLANGE

Part# 00301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

05618900

28

SEAL-OIL .750X1.375X.250

Part# 05618900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05900012

29

BLT-HEX .31-24X1.0 GR5 YZ EP80

Part# 05900012 (Superseded to 05947300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06307400

30

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
