932042 (ST 624 E) - Ariens 24" Snow Blower, 6hp Tecumseh (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

24" Snow Blower, 6hp Tecumseh

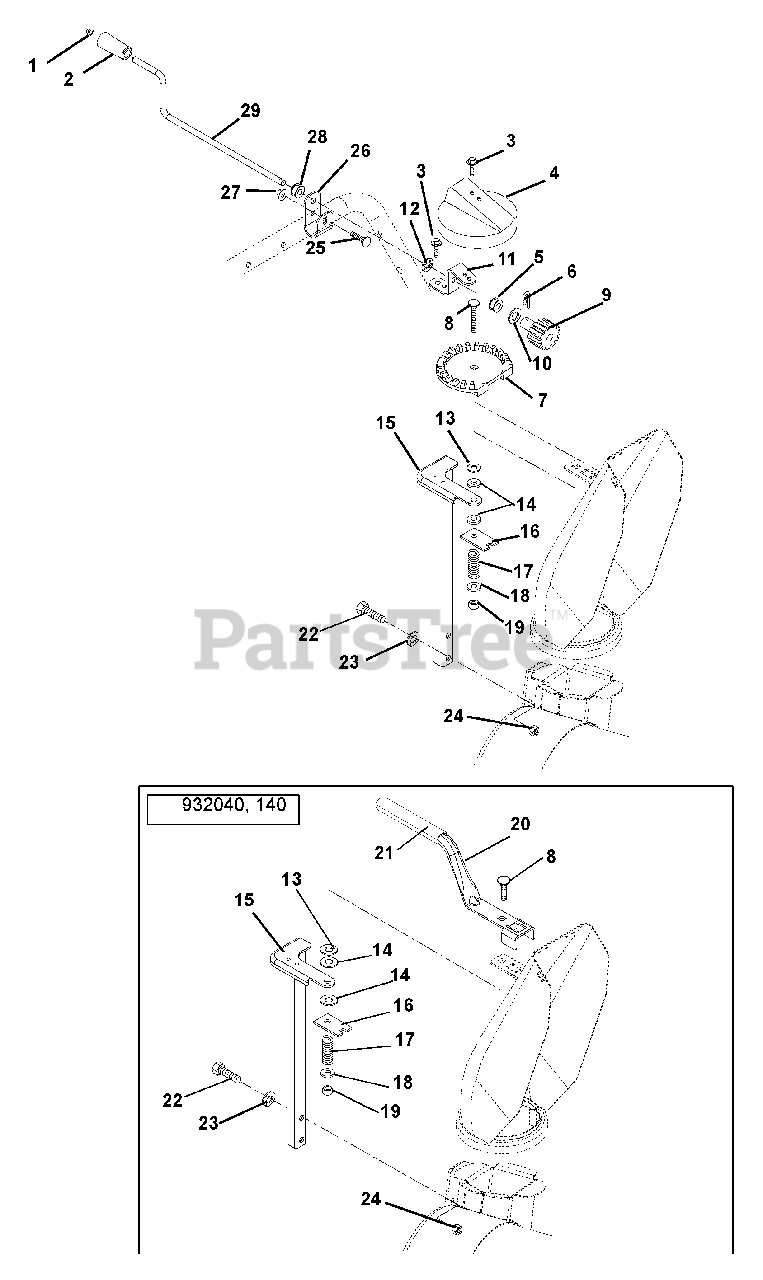

Discharge Chute Crank Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (932041, 042, 141, 509, 510, 511)

$2.99

$

In Stock, only 1 left!

0

2

Ariens 07500001

KNOB, CHUTE CRANK

Note: (932041, 042, 141, 509, 510, 511)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (932041, 042, 141, 509, 510, 511)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03223000

GEAR COVER

Note: (932041, 042, 141, 509, 510, 511)

$13.99

$

In Stock, only 2 left!

0

5

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

Note: (932041, 042, 141, 509, 510, 511)

$2.99

$

In Stock, Qty 7

0

6

Ariens 06714500

PIN, SPRING CLIP

Note: (932041, 042, 141, 509, 510, 511)

$2.99

$

In Stock, Qty 18

0

7

Ariens 03222900

CHUTE GEAR

Note: (932041, 042, 141, 509, 510, 511)

$11.99

$

In Stock, Qty 8

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 10

0

9

Ariens 53214700

BRACKET W/PINION GEAR

Note: (Contains Items 5, 10, 11, 12) (932041, 042, 141, 509, 510, 511)

$64.99

$

Usually ships in 4-12 days

0

10

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

Note: (932041, 042, 141, 509, 510, 511)

$2.49

$

In Stock, Qty 19

0

11

Ariens 00443551

BRACKET, PINION GEAR

Note: (932041, 042, 141, 509, 510, 511)

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 03224300

PUSHNUT .625

Note: (932041, 042, 141, 509, 510, 511)

$2.49

$

In Stock, Qty 5

0

13

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 01123800

FRICTION WASHER

$4.99

$

In Stock, Qty 13

0

15

Ariens 00396751

WELDMENT, PEDESTAL CHUTE MOUNT

$

$

Not available

16

Ariens 00398000

PLATE, FRICTION

$7.99

$

In Stock, Qty 7

0

17

Ariens 08320900

SG-COMP .187X.56X1.62

$5.49

$

In Stock, Qty 6

0

18

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00427451

HANDLE, CHUTE ROTATION

Note: (932040, 140)

$79.99

$

Usually ships in 4-12 days

0

21

Ariens 00345700

GRIP, CHUTE HANDLE, ORANGE

Note: (932040, 140)

$

$

Not available

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, only 3 left!

0

23

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

Note: (932041, 042, 141, 509, 510, 511)

$3.49

$

In Stock, Qty 10

0

26

Ariens 00398551

BRACKET, CRANK SUPPORT

Note: (932041, 042, 141, 509, 510, 511)

$40.99

$

Usually ships in 4-12 days

0

27

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (932041, 042, 141, 509, 510, 511)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

Note: (932041, 042, 141, 509, 510, 511)

$2.99

$

In Stock, Qty 18

0

29

Ariens 00423400

ROD, CHUTE CRANK

Note: (932041, 042, 141, 509, 510, 511)

$30.99

$

Usually ships in 4-12 days

0
