932050 (ST 20 E) - Ariens Crossover 20" Snow Blower, Ariens AX 179cc engine (SN: 000101 - 000245) Auger and Impeller Parts Diagram

Crossover 20" Snow Blower, Ariens AX 179cc engine

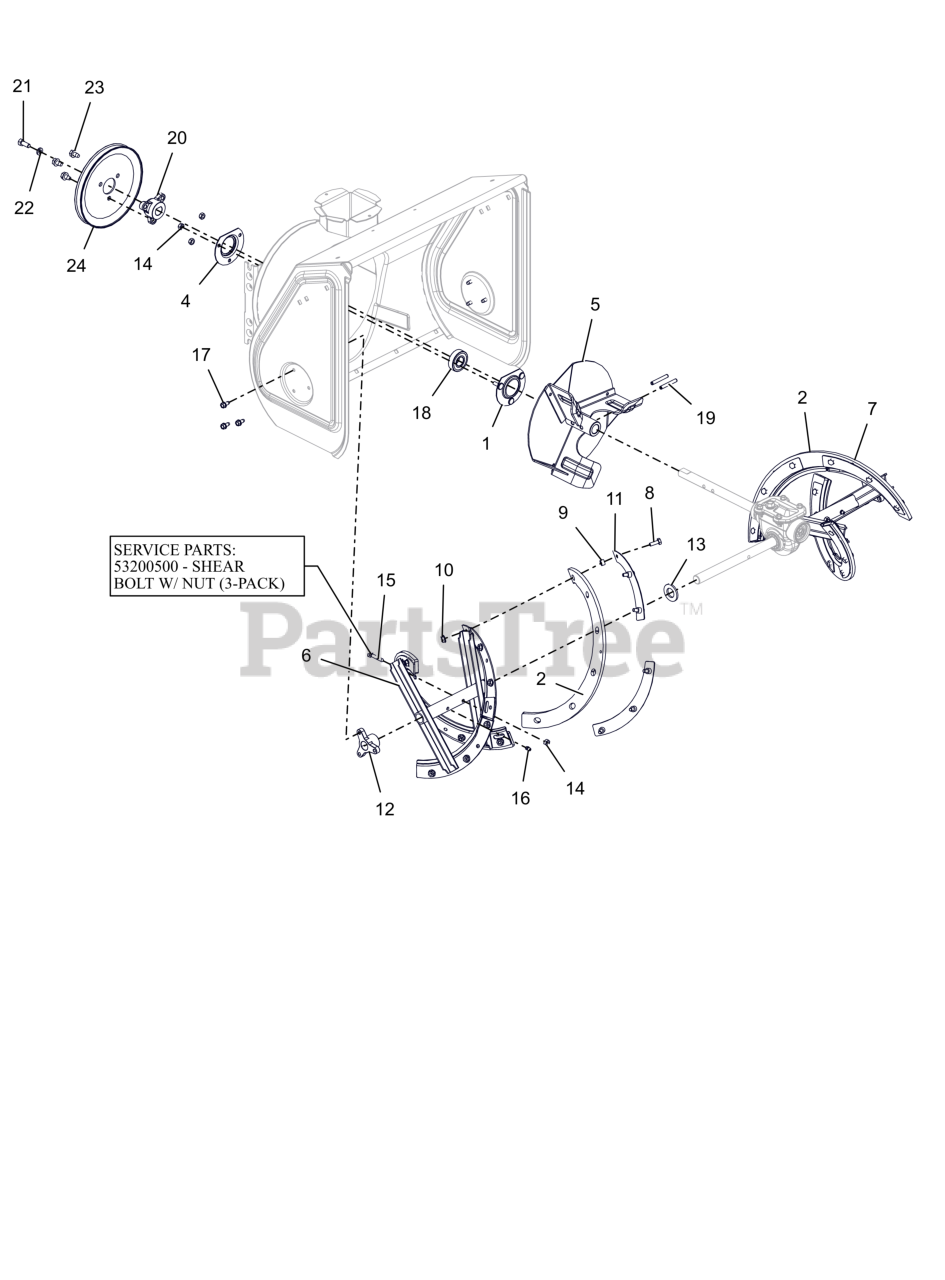

Auger and Impeller Parts Diagram

  • Title

1

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 2 left!

0

2

Ariens 53216800

KIT, RUBBER FLIGHTING RAKE

$263.99

$

Usually ships in 4-12 days

0

4

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 5

0

5

Ariens 09179751

IMPELLER, 10" 3-BLADE LG BACK (BLACK)

$111.99

$

Usually ships in 4-12 days

0

6

Ariens 09171551

WLDMT, AUGER 20" GROUND - RH (BLACK)

$78.99

$

Usually ships in 4-12 days

0

7

Ariens 09171451

WLDMT, AUGER 20" GROUND - LH (BLACK)

$78.99

$

Usually ships in 4-12 days

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

9

Ariens 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, only 3 left!

0

10

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

11

Ariens 09362951

BRACE, RUBBER FLIGHTING (BLACK)

$19.99

$

Usually ships in 4-12 days

0

12

Ariens 05500918

BUSHING, RAKE SHAFT .75"

$15.99

$

In Stock, Qty 6

0

13

Ariens 06401140

WSHR, FLT .812X1.469X.134 ZCC

$1.99

$

In Stock, Qty 14

0

14

Ariens 06500812

NUT,LK-CTR .25-20 GA ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 53200500

SHEAR BOLT WITH NUT

$3.49

$

In Stock, Qty 20+

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

17

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05406300

BRG-BALL .750X1.750X.50

$27.99

$

In Stock, only 2 left!

0

19

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 7

0

20

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.99

$

Usually ships in 4-12 days

0

21

Ariens 05902014

BLT, HEX .31-24X.750 G5 ZCC

$1.99

$

In Stock, Qty 5

0

22

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 5

0

23

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.99

$

In Stock, Qty 20+

0

24

Ariens 09155800

PULLEY, V 7.000 X 1.375 3BLT

$18.99

$

Usually ships in 4-12 days

0
