932050 (ST 20 E) - Ariens Crossover 20" Snow Blower, Ariens AX 179cc engine (SN: 001551 & Above) Discharge Chute Parts Diagram

Crossover 20" Snow Blower, Ariens AX 179cc engine

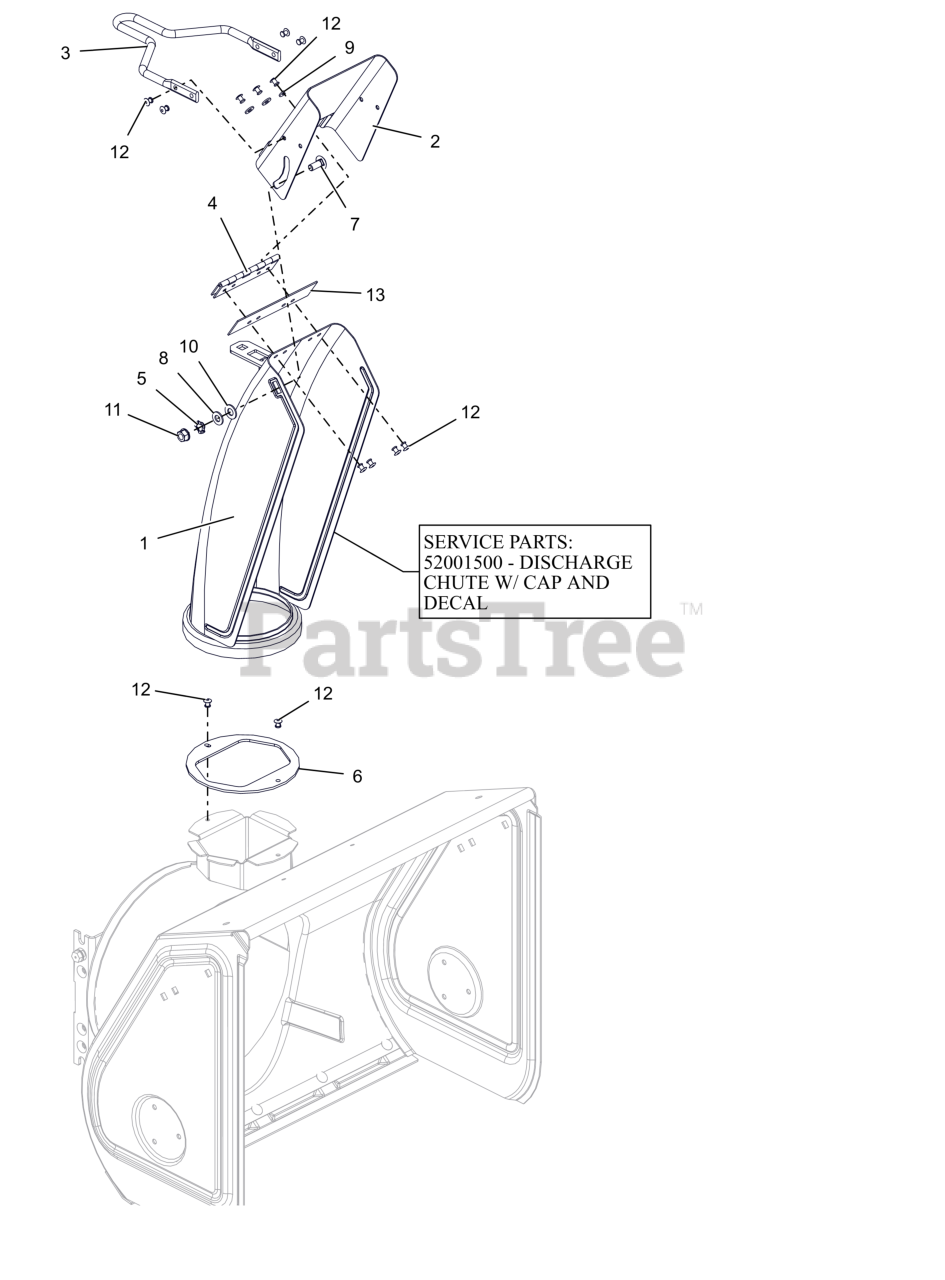

Discharge Chute Parts Diagram

  • Title

1

Ariens 03881559

CHUTE, COMPACT - TALL

$57.99

$

Usually ships in 4-12 days

0

1

Ariens 52001500

CHUTE, DISCHARGE W/CAP & DECAL

$

$

Not available

2

Ariens 52008300

CAP,MANUAL - COMPACT (W/DECAL)

$35.99

$

Usually ships in 4-12 days

0

3

Ariens 09157851

LEVER, DEFLECTOR CAP (BLACK)

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

5

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.99

$

In Stock, Qty 7

0

6

Ariens 03889400

BAFFLE, COMPACT DISCHARGE

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

8

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06401029

WSHR,FLT .196X.500X.066 ZCC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 10

0

11

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, only 3 left!

0

13

Ariens 00628400

CAP SEAL 5.50

$5.49

$

Usually ships in 4-12 days

0
